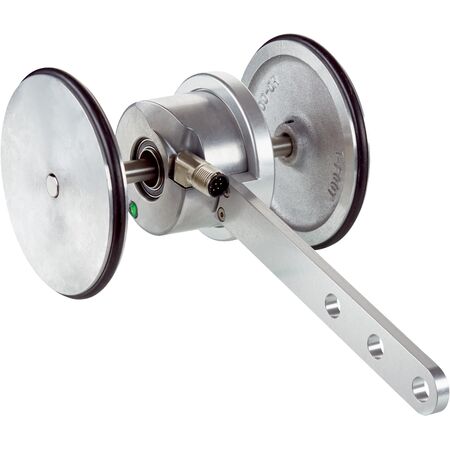

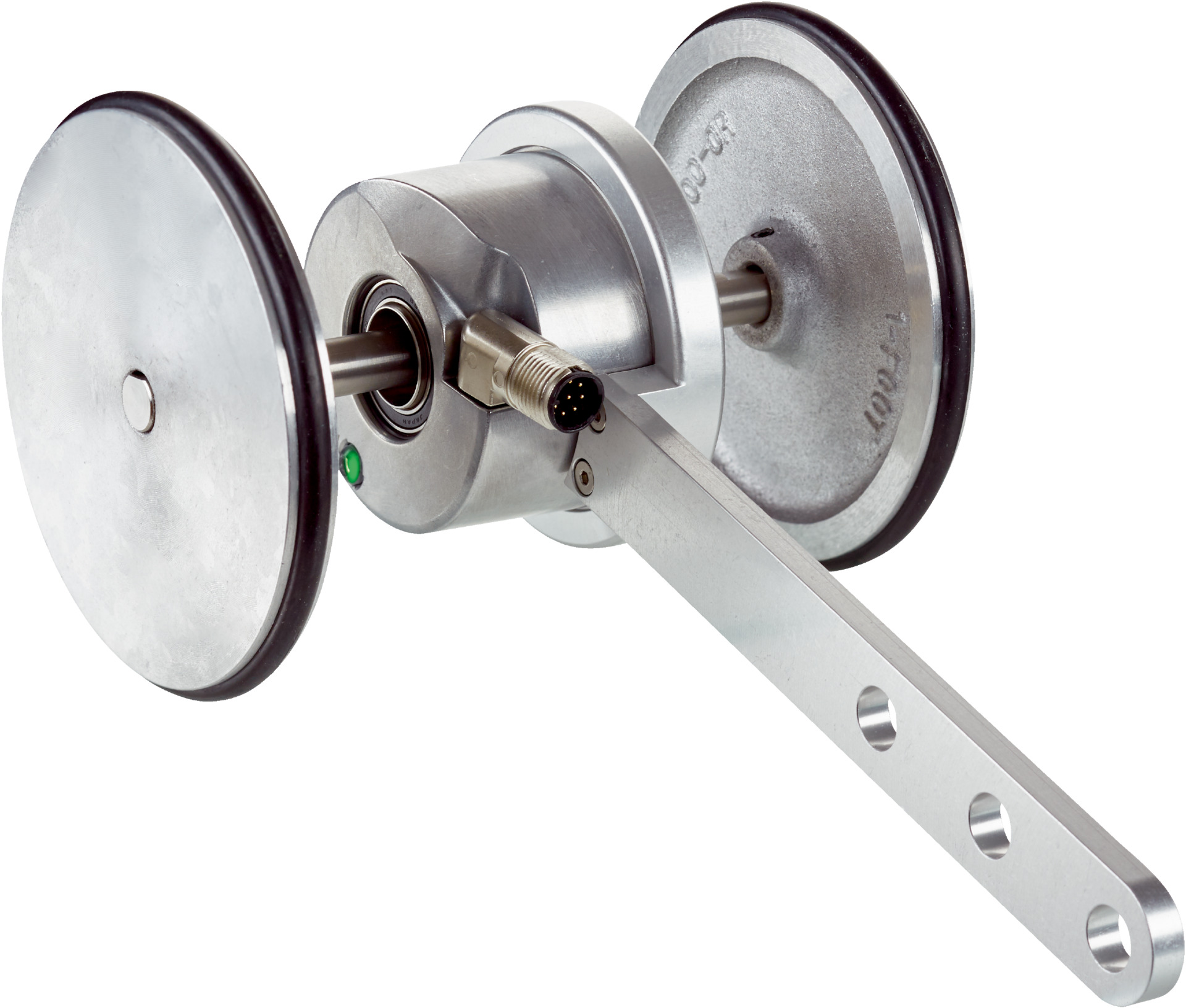

Incremental Rotary Encoder DUV60E-D2KFWDAA | 275 Years MTTFD | IP65 Rated | by SICK
The DUV60E-D2KFWDAA incremental rotary encoder is designed for high reliability in industrial automation, boasting an impressive MTTFD of 275 years and an IP65 rated enclosure for dust and water resistance. With a maximum output frequency of 60 kHz and a measuring wheel circumference of 12 inches, it's perfect for applications like conveyor belt monitoring and robotics, ensuring precise position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 2400 (type-dependent)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: <5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data: DIP switch selectable output
- Operating power consumption (no load): 120 mA
- Connection type: Male M12 4-pin connector
- Output voltage and direction of rotation supported
- Supply voltage: 4.75 V to 30 V
- Load current max: ≤30 mA per channel
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 12 inches
- Materials: Shaft stainless steel, flange aluminum, housing aluminum, cable PVC
- Start-up torque: 0.5 Ncm, operating torque: 0.4 Ncm
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Maximum spring arm travel: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Selectable output via DIP switch
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for dust and water resistance
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- High maximum output frequency of 60 kHz
- Measuring wheel circumference of 12 inches with O-ring NBR70 surface
- Low start-up torque of 0.5 Ncm and operating torque of 0.4 Ncm
- Bearing lifetime of 3.6 x 10^9 revolutions
- Shock resistance up to 100 g and vibration resistance up to 30 g
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for position and speed measurement
- Conveyor belt monitoring
- Material handling systems
- Machine tool feedback
- Robotics and motion control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W reduces energy usage
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D2KFWDAA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
