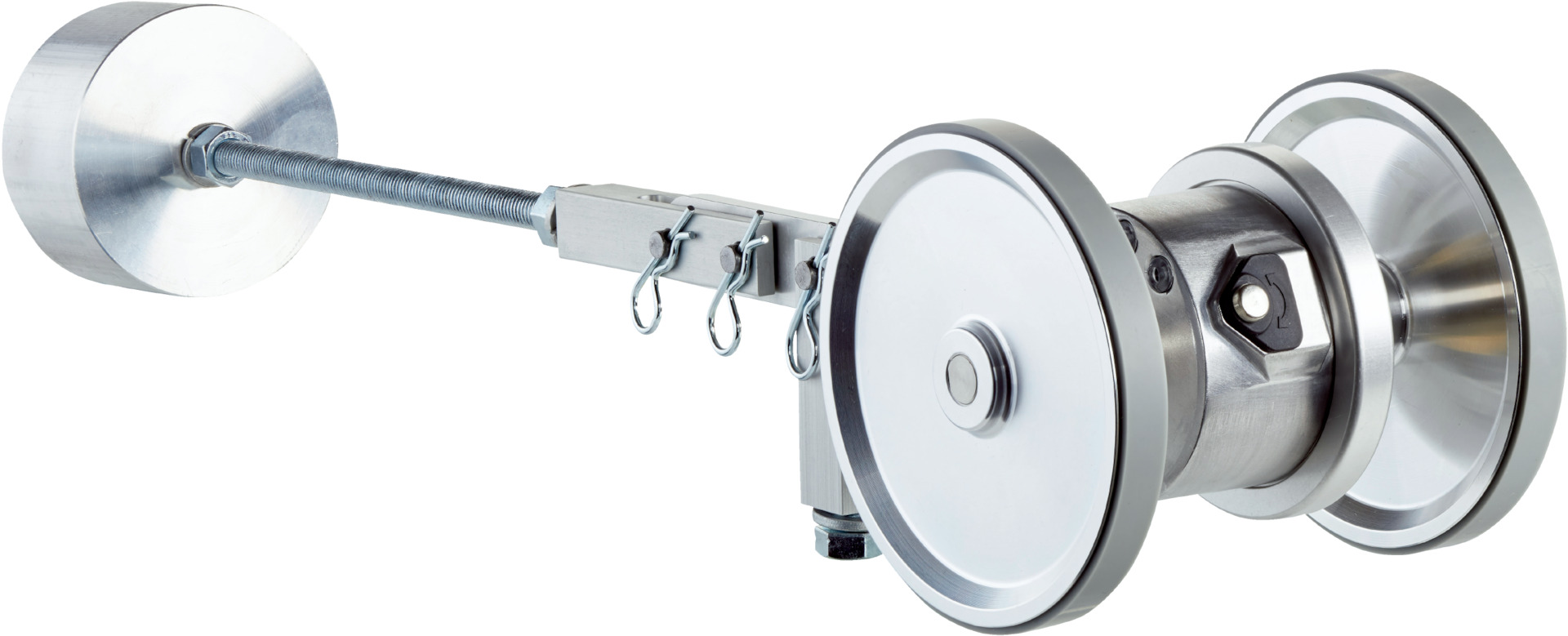

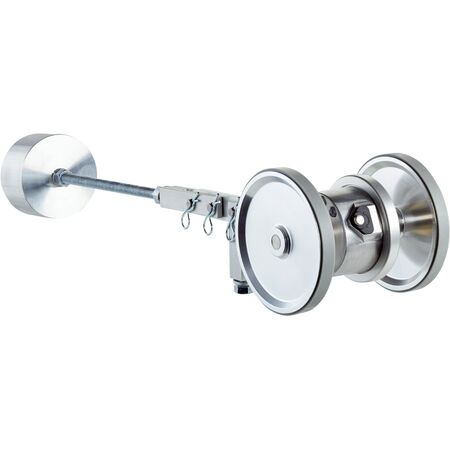

Incremental Rotary Encoder DUV60E-D4KCJABA | 1 to 2048 Pulses/Rev | IP65 Enclosure | by SICK
The DUV60E-D4KCJABA incremental rotary encoder is designed for precise position and speed measurement in industrial automation. With selectable pulses per revolution from 1 to 2048 and a robust IP65-rated aluminum housing, it ensures high reliability and durability. Ideal for conveyor systems and machine tool feedback, this encoder operates efficiently in temperatures ranging from -30°C to +70°C, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 2048 (selectable)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse depending on type
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: less than 5 ms
- Communication interface: Incremental TTL/HTL
- Power supply: 4.75 V to 30 V
- Max load current per channel: ≤ 30 mA
- Max output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Connection: Male M12 8-pin universal connector
- Operating temperature: -30°C to +70°C
- Enclosure rating: IP65
- Shock resistance: 100 g
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 2048
- Robust aluminum housing with IP65 enclosure rating
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- Measuring wheel with smooth urethane surface and 12 inch circumference
- Spring arm design with counter-weight and under-belt yoke mount
- Low operating torque of 0.4 Ncm and startup torque of 0.5 Ncm
- High bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt systems requiring accurate length measurement
- Machine tool feedback and control
- Material handling and packaging machinery
Standards & Compliance
- Complies with AS/NZS 61000-6-2 for EMC immunity
- Complies with AS/NZS 61000-6-3 for EMC emissions
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W supports energy efficiency
- Robust construction ensures long operational life under harsh conditions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KCJABA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
