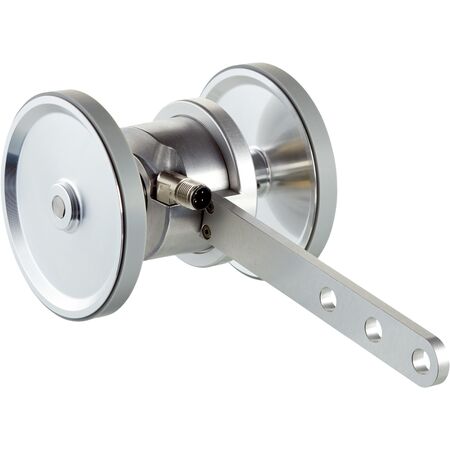

Incremental Rotary Encoder DUV60E-D4KCWADA | 275 Years MTTFD | IP65 Rated | 12-Inch Measuring Wheel | by SICK
The DUV60E-D4KCWADA incremental rotary encoder is designed for industrial automation, offering high reliability with an MTTFD of 275 years and an IP65 enclosure rating. With adjustable pulses per revolution from 1 to 1500 and a robust aluminum housing, it’s perfect for precise position and speed measurement in conveyor systems, robotics, and material handling equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 1500
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data: DIP switch selectable output
- Operating power consumption (no load): 120 mA
- Connection type: Male M12, 8-pin connector
- Output voltage and direction of rotation supported
- Power consumption max without load: ≤ 1.25 W
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 12 inches
- Measuring wheel surface: Smooth plastic (urethane)
- Shaft: Stainless steel
- Flange and housing: Aluminum
- Cable: PVC
- Spring element: Spring steel
- Operating torque: 0.4 Ncm
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Maximum travel/deflection of spring arm: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30°C to +70°C
- Storage temperature range: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 1500
- Robust aluminum housing with IP65 enclosure rating
- Operating temperature range from -30°C to +70°C
- Reverse polarity and short-circuit protection
- Measuring wheel circumference of 12 inches with smooth urethane surface
- Low power consumption with max 1.25 W
- High maximum output frequency of 60 kHz
- Durable stainless steel shaft and aluminum flange
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial electrical standards to ensure proper connection and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor systems monitoring
- Material handling equipment
- Robotics and motion control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long service life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DUV60E-D4KCWADA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
