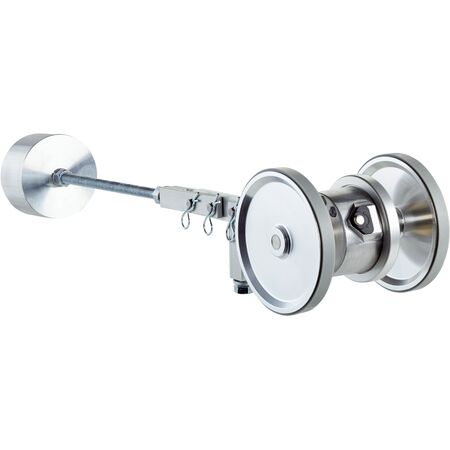

Incremental Rotary Encoder DUV60E-D4KFJAAA | IP65 Rated | Adjustable Pulses | Robust Aluminum Housing | by SICK
The DUV60E-D4KFJAAA incremental rotary encoder is designed for precise position and speed measurement in industrial automation. With adjustable pulses per revolution from 1 to 2400 and an IP65 rated enclosure, it ensures reliable performance in harsh environments. Ideal for conveyor systems and robotics, this encoder features a robust aluminum housing and low power consumption, making it a perfect choice for efficient material handling and packaging machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 2400 (type-dependent)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Power consumption max without load: ≤ 1.25 W
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Operating speed: 1500 min⁻¹
- Start up torque: 0.5 Ncm
- Operating torque: 0.4 Ncm
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Enclosure rating: IP65
- Operating temperature range: -30°C to +70°C
- Resistance to shocks: 100 g
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 2400
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- Low power consumption with max 1.25 W without load

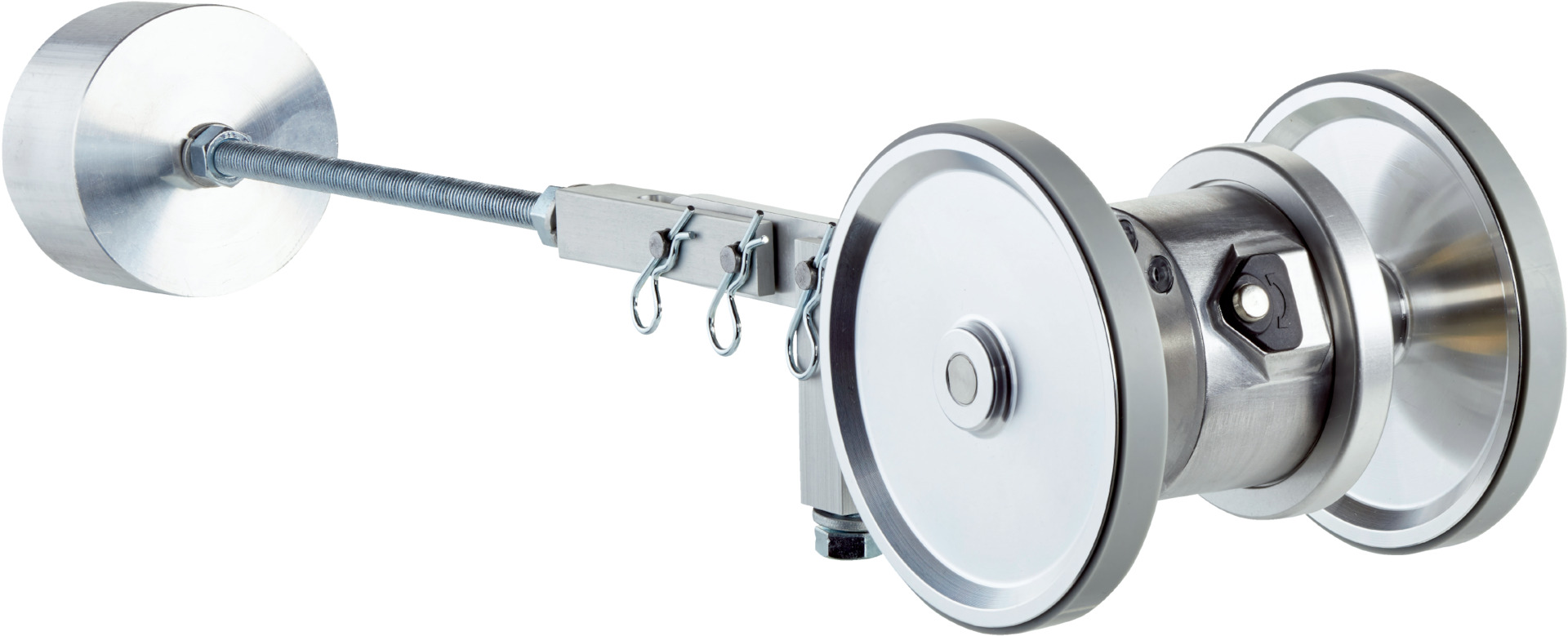

- Spring arm design with counter-weight for stable measuring wheel contact
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial automation equipment to ensure proper connection and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt systems monitoring
- Material handling and packaging machinery
- Robotics and motion control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KFJAAA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
