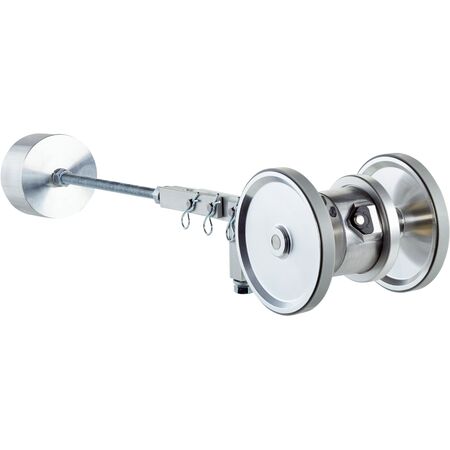

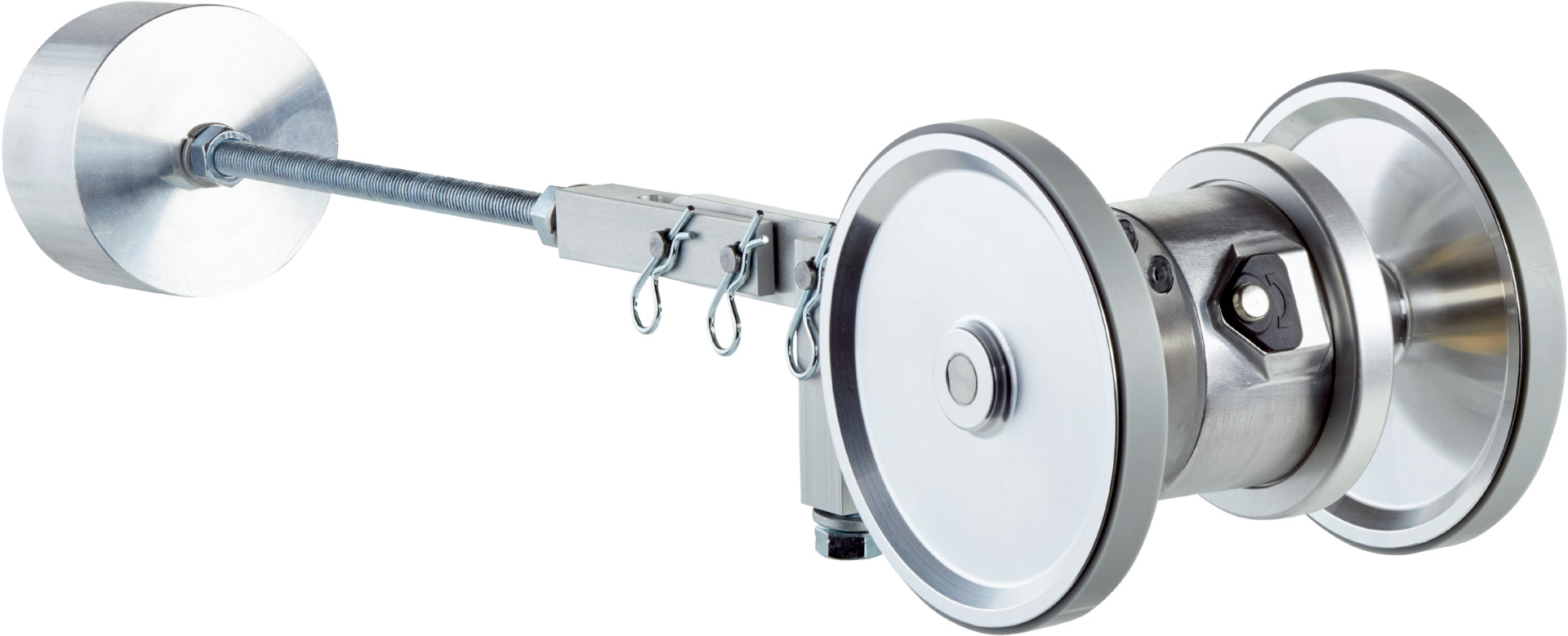

Incremental Rotary Encoder DUV60E-D4KFJDEB | 275 Years MTTFD | IP65 Enclosure | by SICK
The DUV60E-D4KFJDEB incremental rotary encoder is designed for precision in industrial automation, featuring a remarkable MTTFD of 275 years and an IP65 enclosure for durability. With adjustable pulses per revolution and a robust aluminum housing, it's perfect for applications like conveyor monitoring and robotics, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 240, selectable
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse depending on type
- Measuring step: 90° electric per pulse
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data: DIP switch selectable output
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 12 inches
- Materials: Shaft stainless steel, flange aluminum, housing aluminum, cable PVC
- Spring arm mechanism materials: spring steel, aluminum components
- Start up torque: 0.5 Ncm
- Operating torque: 0.4 Ncm
- Operating speed: up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Maximum spring arm deflection: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 100mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 240
- Robust aluminum housing with IP65 enclosure rating
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- Measuring wheel with smooth urethane surface and 12 inch circumference
- Spring arm design with counter-weight and under-belt yoke mount
- Low power consumption with max 1.25 W
- High maximum output frequency of 60 kHz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and industrial automation systems to ensure proper mounting, wiring, and configuration.
Applications
- Industrial automation for position and speed measurement
- Conveyor belt monitoring and control
- Material handling systems
- Packaging machinery
- Robotics and motion control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KFJDEB incremental encoder is available for immediate purchase, ideal for industrial automation and material handling applications.
