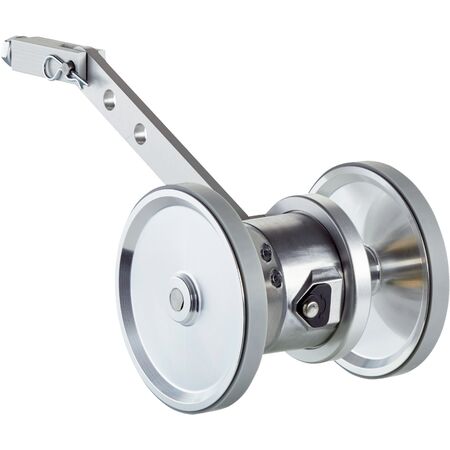

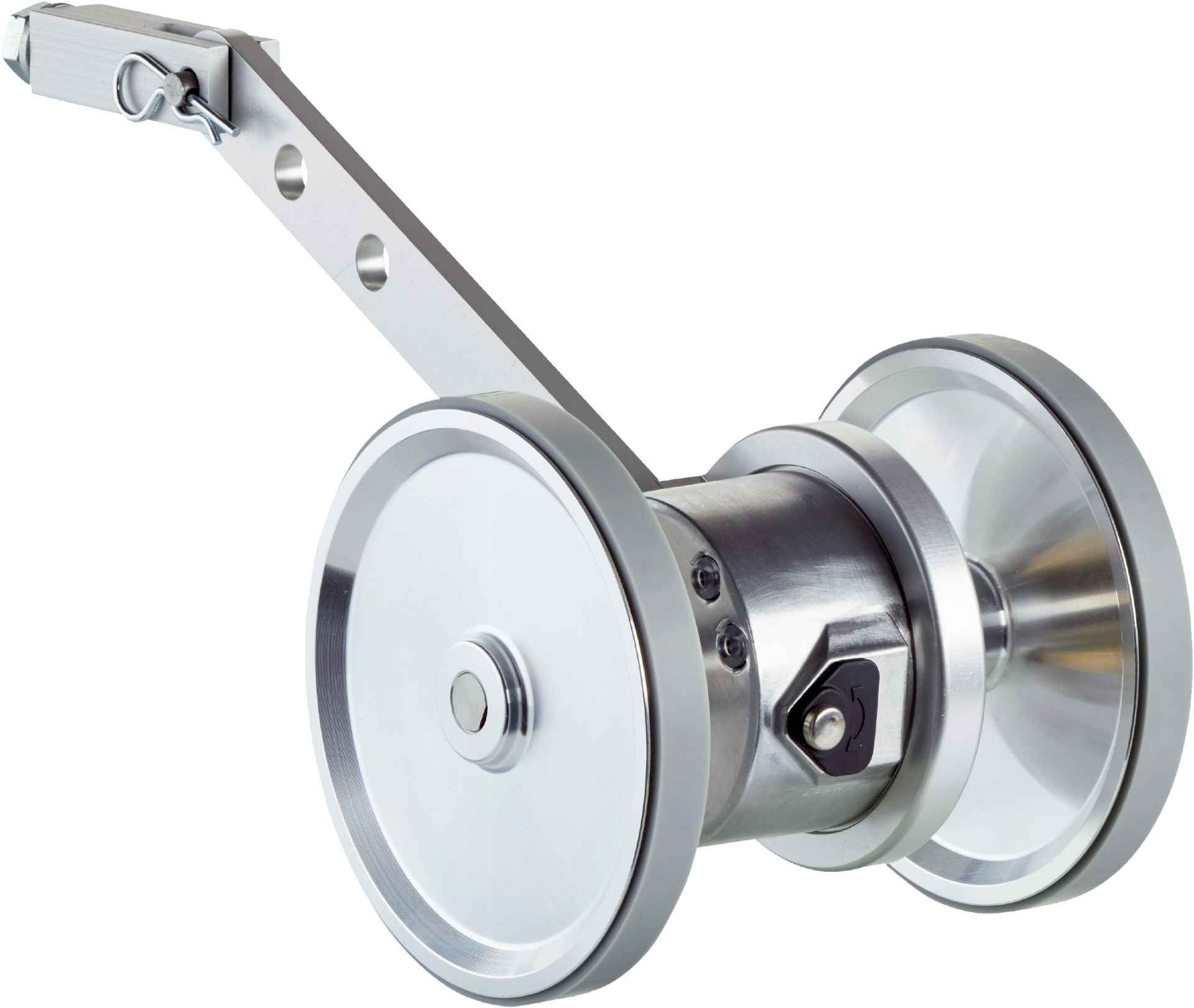

Incremental Rotary Encoder DUV60E-D4KFKAAA | IP65 Rated | Adjustable Pulses | Robust Aluminum Housing | by SICK
The DUV60E-D4KFKAAA incremental rotary encoder is designed for precision in industrial automation, featuring adjustable pulses per revolution from 1 to 2400 and an IP65 rated enclosure for dust and water protection. With a robust aluminum housing and stainless steel shaft, it ensures high reliability and low power consumption, making it ideal for conveyor systems, robotics, and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 2400 (type-dependent)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: less than 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Operating speed: up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Spring arm max travel: 40 mm with recommended pretension 20 mm
- Enclosure rating: IP65
- Operating temperature range: -30°C to +70°C
- Resistance to shocks: 100 g
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 2400
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- Measuring wheel with 12 inch circumference made of smooth urethane plastic
- Spring arm over-belt yoke mount design with aluminum components
- Low power consumption with max 1.25 W and 120 mA no load current
