Incremental Rotary Encoder DUV60E-D4KFKDEB | 275 Years MTTFD | IP65 Protection | by SICK

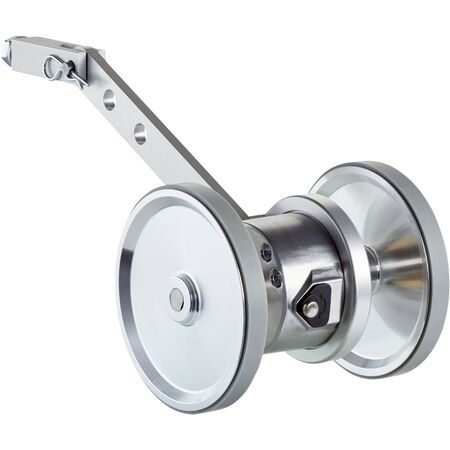

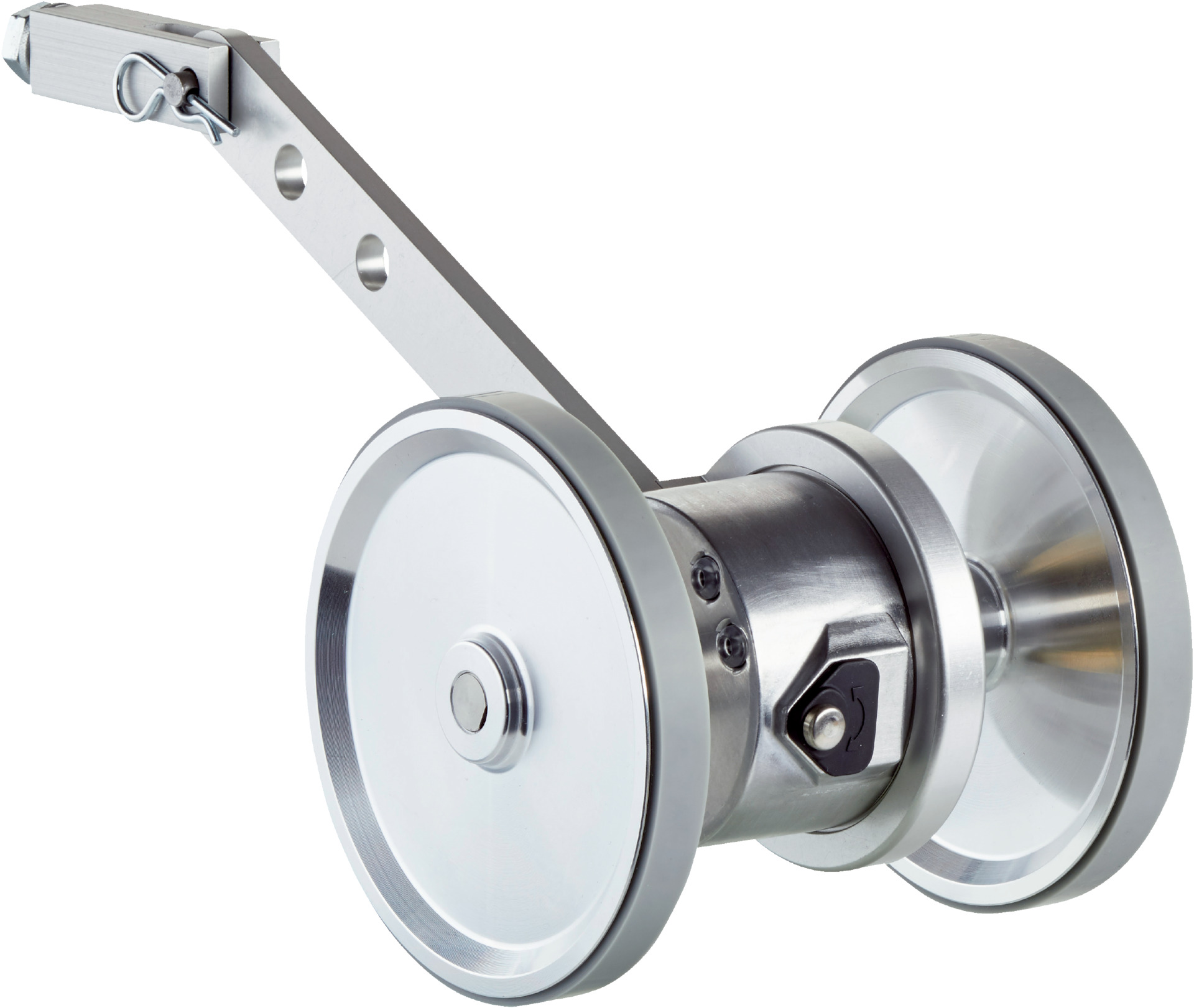

The DUV60E-D4KFKDEB incremental rotary encoder is designed for precise position and speed measurement in industrial automation. With a remarkable MTTFD of 275 years and an IP65 protection rating, it ensures reliability in harsh environments. Ideal for conveyor systems and machine tools, this encoder features adjustable pulses per revolution and robust aluminum housing for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 240 (selectable)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse depending on type
- Measuring step: 90° electric per pulse
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: <5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 12 inches
- Materials: Shaft stainless steel, flange aluminum, housing aluminum, cable PVC
- Spring arm mechanism materials: spring steel, aluminum components
- Start-up torque: 0.5 Ncm, operating torque: 0.4 Ncm
- Operating speed up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Maximum spring arm deflection: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- Enclosure rating: IP65
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Shock resistance: 100 g
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 240
- Robust aluminum housing with IP65 protection rating
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- Measuring wheel circumference of 12 inches with smooth urethane surface
- Spring arm over-belt yoke mount design for stable measurement
- Low startup torque of 0.5 Ncm and operating torque of 0.4 Ncm
- Maximum output frequency of 60 kHz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and configuration for optimal performance and safety.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt systems requiring accurate length measurement
- Machine tool feedback systems
- Material handling and packaging machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W reduces energy usage
- Robust construction ensures long service life, supporting sustainable operations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KFKDEB incremental encoder is available for immediate purchase, ideal for industrial automation and measurement applications requiring high precision and durability.
