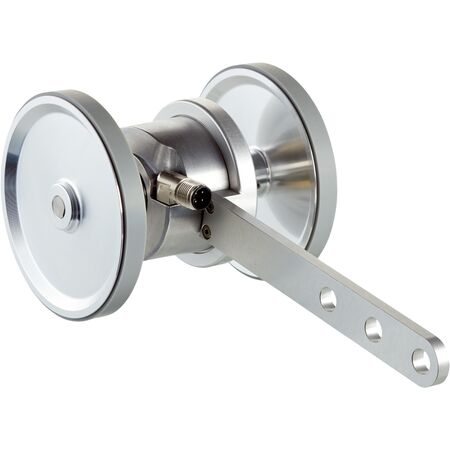

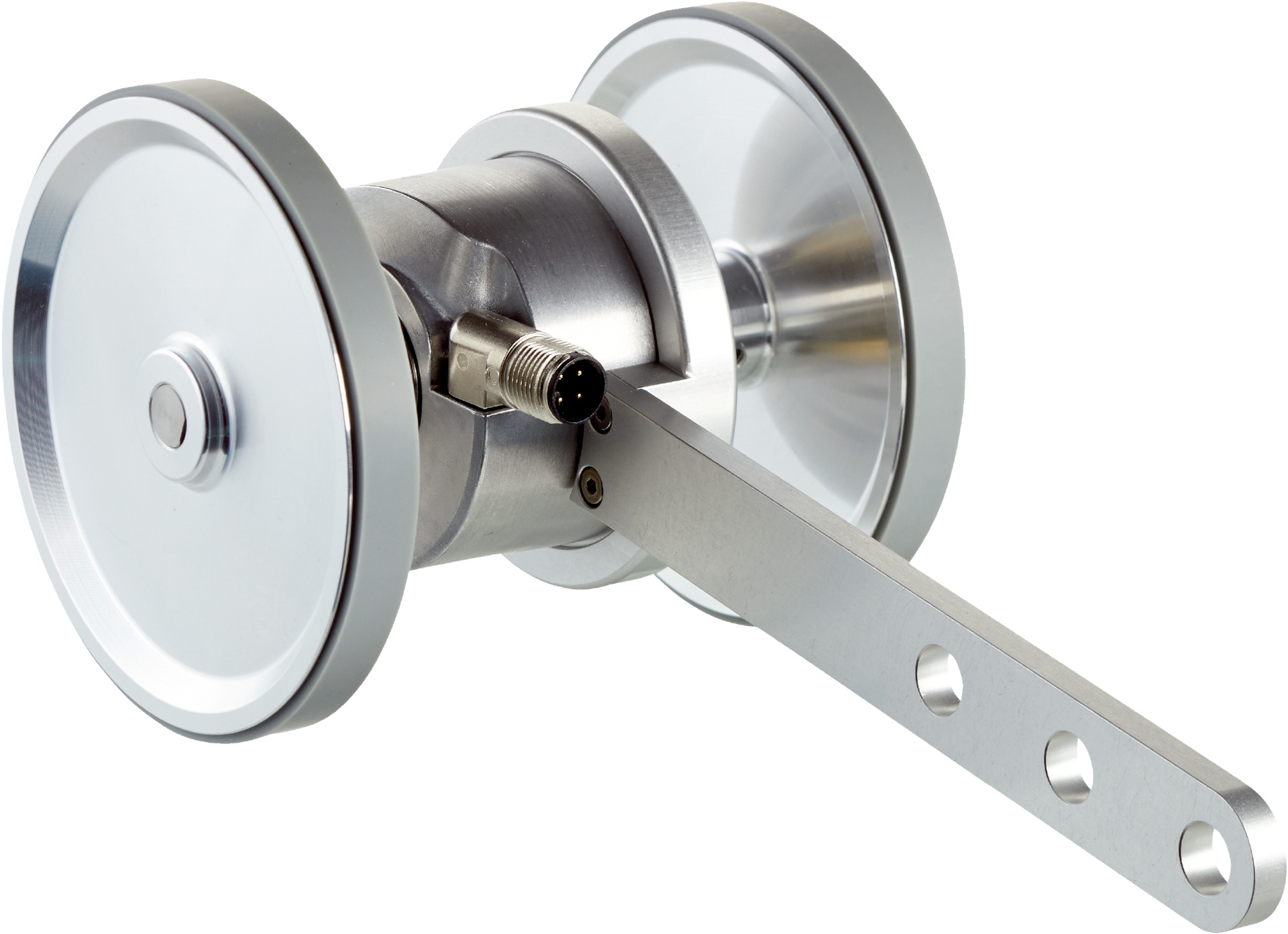

Incremental Rotary Encoder DUV60E-D4KFWACA | 275 Years MTTFD | IP65 Rated | Adjustable Pulses | by SICK
The DUV60E-D4KFWACA incremental rotary encoder is designed for industrial automation, offering high reliability with an MTTFD of 275 years and an IP65 rated enclosure for dust and water protection. With adjustable pulses per revolution from 1 to 1800, it ensures precise position and speed measurement, making it ideal for conveyor systems, robotics, and material handling equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 1800 (selectable)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption: 120 mA, max 1.25 W
- Supply voltage: 4.75 V to 30 V
- Load current max: ≤ 30 mA per channel
- Maximum output frequency: 60 kHz
- Reference signal: 1, positioned at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 12 inches
- Materials: Shaft - stainless steel, Flange - aluminum, Housing - aluminum, Cable - PVC
- Operating speed: up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Spring arm max travel: 40 mm, recommended pretension 20 mm
- Enclosure rating: IP65
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 120mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL signals
- Adjustable pulses per revolution from 1 to 1800
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- High maximum output frequency of 60 kHz
- Measuring wheel circumference of 12 inches with smooth urethane surface
- Low operating torque of 0.4 Ncm and startup torque of 0.5 Ncm
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial automation equipment to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor systems monitoring
- Material handling equipment
- Robotics and machinery requiring incremental position feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of ≤1.25 W minimizes energy use
- Robust design reduces risk of failure and environmental contamination
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KFWACA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
