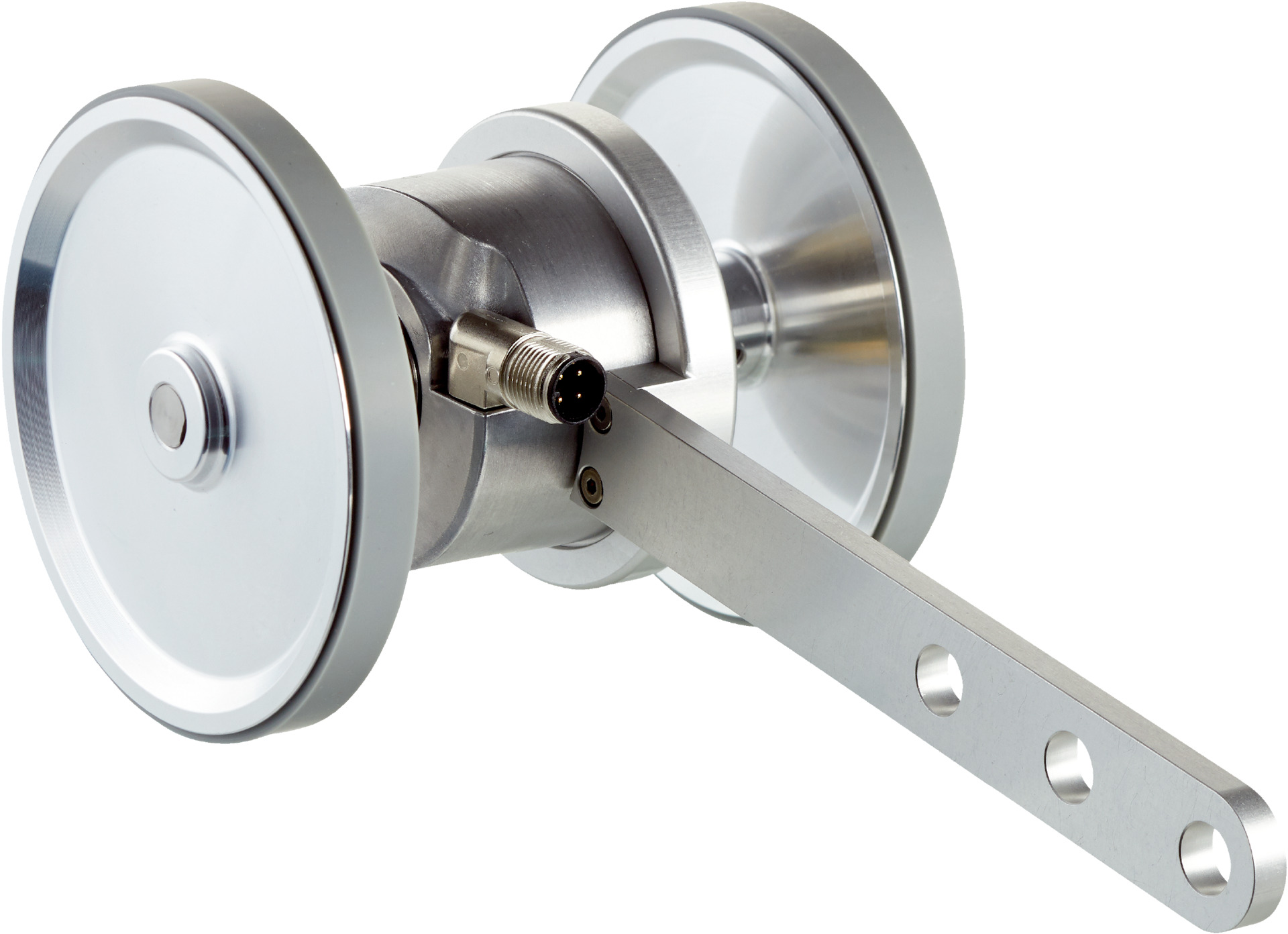

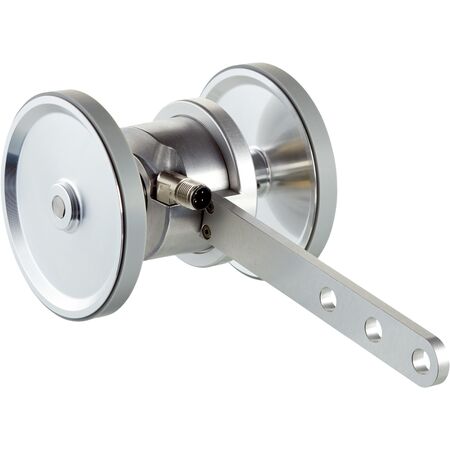

Incremental Rotary Encoder DUV60E-D4KFWBDB | 275 Years MTTFD | IP65 Rated | by SICK
The DUV60E-D4KFWBDB incremental rotary encoder is designed for high reliability in industrial automation, featuring a remarkable MTTFD of 275 years and an IP65 rated enclosure for dust and water resistance. With a maximum output frequency of 60 kHz and a wide operating temperature range from -30°C to +70°C, it's perfect for applications like conveyor belt monitoring and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 1500
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180°, electric, gated with A
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Spring arm max travel: 40 mm
- Recommended pretension: 20 mm
- Operating temperature range: -30°C to +70°C
- Enclosure rating: IP65
- Resistance to shocks: 100 g
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 120mm x 60mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Measuring wheel circumference of 12 inches with smooth plastic (urethane) surface
- Robust aluminum housing and flange with stainless steel shaft
- Operating temperature range from -30°C to +70°C
- IP65 rated enclosure for dust and water resistance
- Short-circuit and reverse polarity protection
- Maximum output frequency of 60 kHz
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for position and speed measurement
- Conveyor belt monitoring
- Material handling systems
- Packaging machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DUV60E-D4KFWBDB incremental encoder is available for immediate purchase, ideal for industrial automation and material handling applications.
