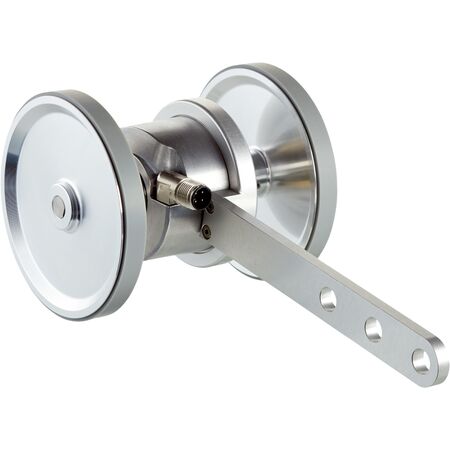

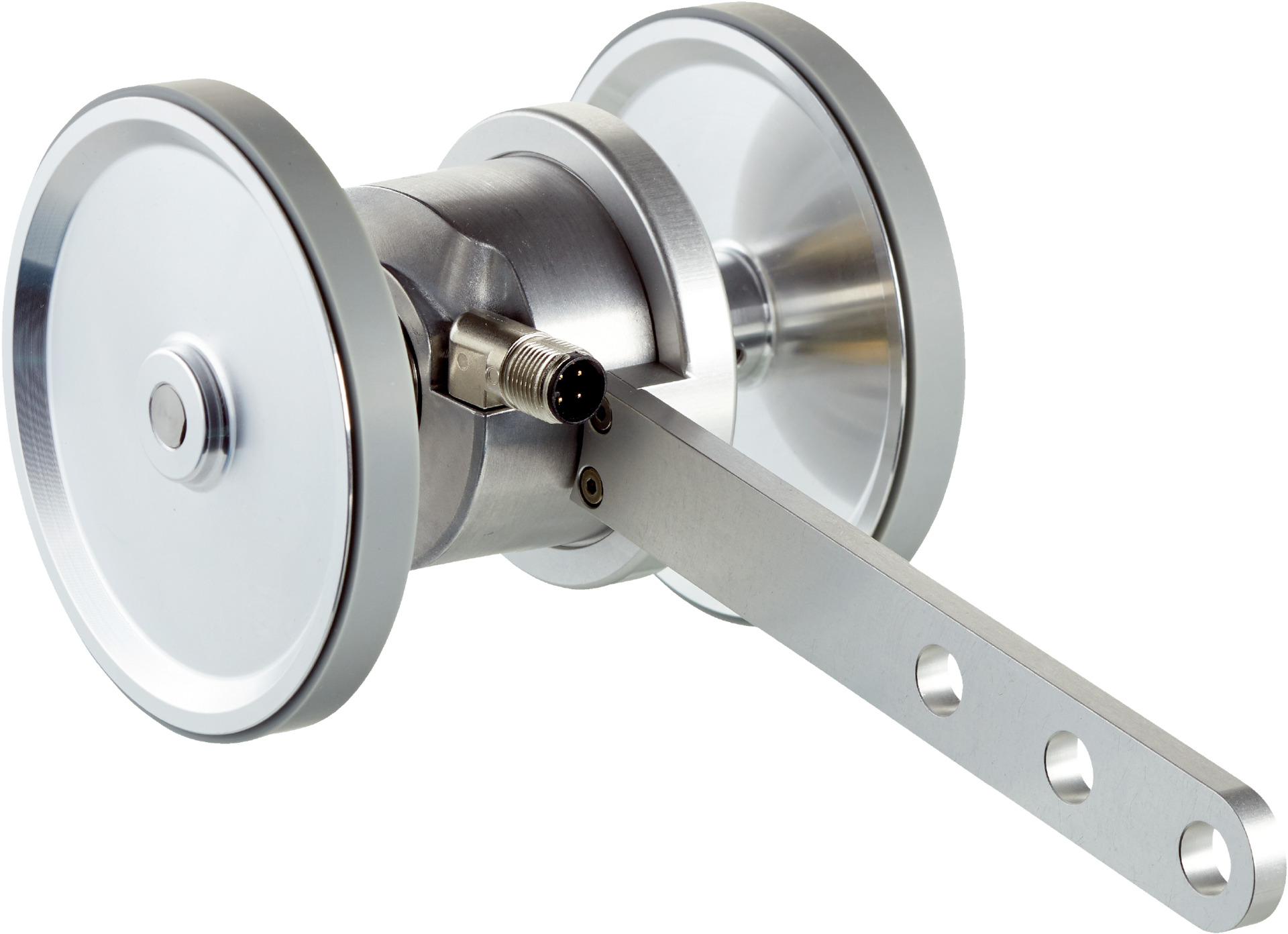

Incremental Rotary Encoder DUV60E-D4KFWCCB | 275 Years MTTFD | IP65 Enclosure | by SICK
The DUV60E-D4KFWCCB incremental rotary encoder is engineered for industrial automation, offering a remarkable MTTFD of 275 years and an IP65 enclosure for robust protection. With adjustable pulses per revolution from 1 to 1800, it ensures precise position and speed measurement, making it ideal for conveyor systems, robotics, and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 1800
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data: DIP switch selectable output
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Connection type: Male M12 4-pin connector
- Operating speed: 1500 min⁻¹
- Start up torque: 0.5 Ncm
- Operating torque: 0.4 Ncm
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -30°C to +70°C
- Storage temperature range: -40°C to +75°C
- Resistance to shocks: 100 g
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 1800
- Robust aluminum housing with IP65 enclosure rating
- Operating temperature range from -30°C to +70°C
- Reverse polarity and short-circuit protection
- Measuring wheel circumference of 12 inches with smooth urethane surface
- Low operating torque of 0.4 Ncm and startup torque of 0.5 Ncm
- High bearing lifetime of 3.6 x 10^9 revolutions
- Resistance to shocks up to 100 g and vibration up to 30 g
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor systems monitoring
- Material handling and packaging machinery
- Robotics and motion control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W reduces energy usage
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DUV60E-D4KFWCCB incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
