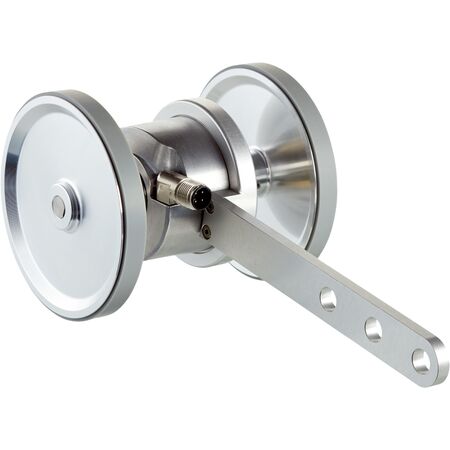

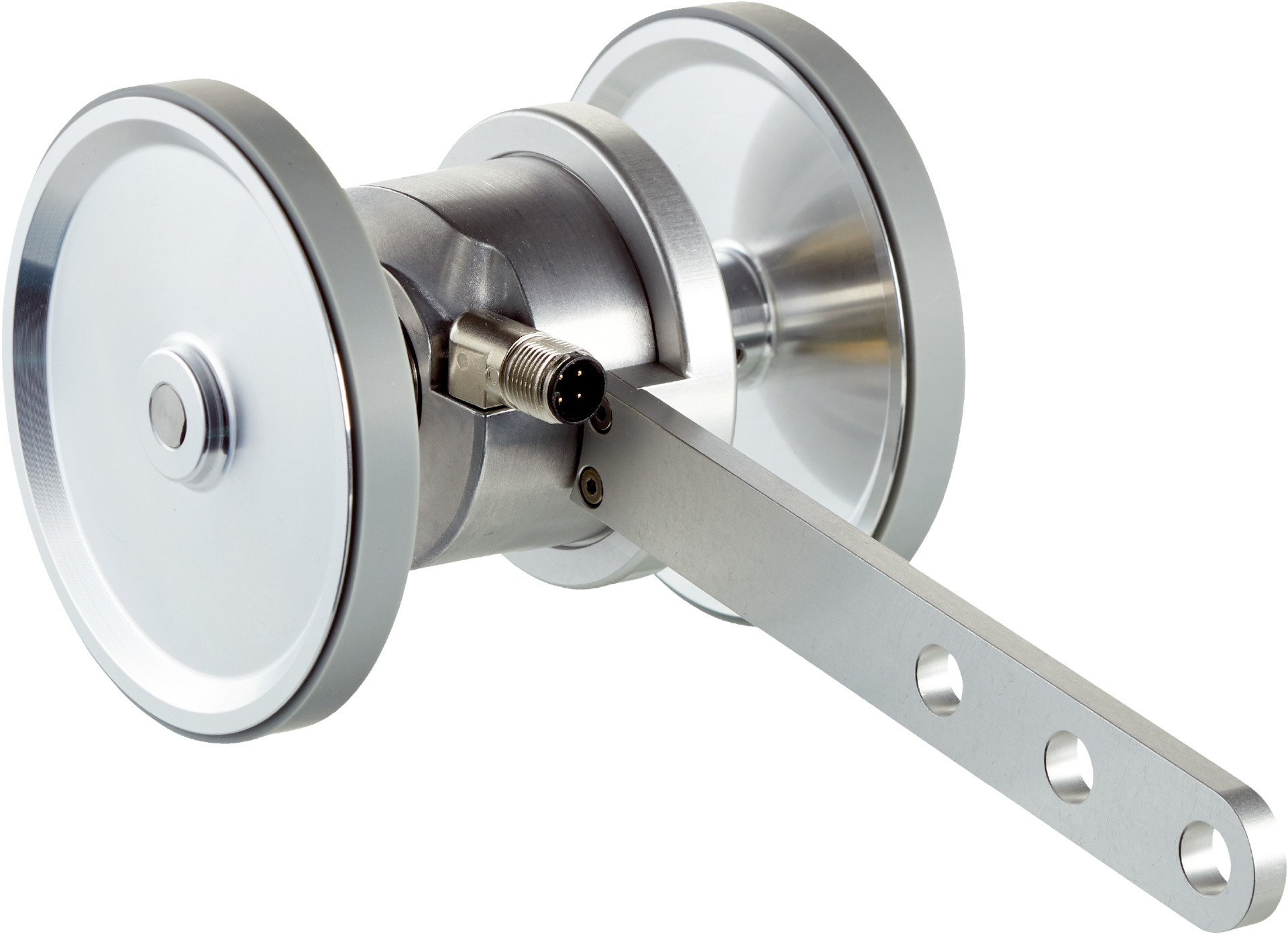

Incremental Rotary Encoder DUV60E-D4KFWCDB | 275 Years MTTFD | IP65 Enclosure | by SICK
The DUV60E-D4KFWCDB incremental rotary encoder is designed for precise position and speed measurement in industrial automation. With a remarkable MTTFD of 275 years and an IP65 enclosure rating, it ensures high reliability and durability. Ideal for applications like conveyor belt monitoring and machine tool feedback systems, this encoder features adjustable pulses per revolution and robust construction for long service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 1500 (selectable)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1, positioned at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 12 inches
- Materials: Stainless steel shaft, aluminum flange and housing, PVC cable
- Operating speed: up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Spring arm max deflection: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature range: -30°C to +70°C
- Storage temperature range: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 120mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 1500
- Robust aluminum housing with IP65 enclosure rating
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- Measuring wheel circumference of 12 inches with smooth urethane surface
- Low operating torque of 0.4 Ncm and startup torque of 0.5 Ncm
- High maximum output frequency of 60 kHz
- Durable stainless steel shaft and aluminum flange
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial automation systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for position and speed measurement
- Conveyor belt monitoring
- Machine tool feedback systems
- Material handling and packaging machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W contributes to energy efficiency
- Robust construction ensures long service life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KFWCDB incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
