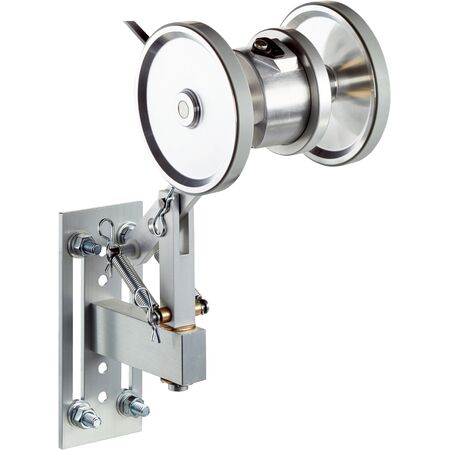

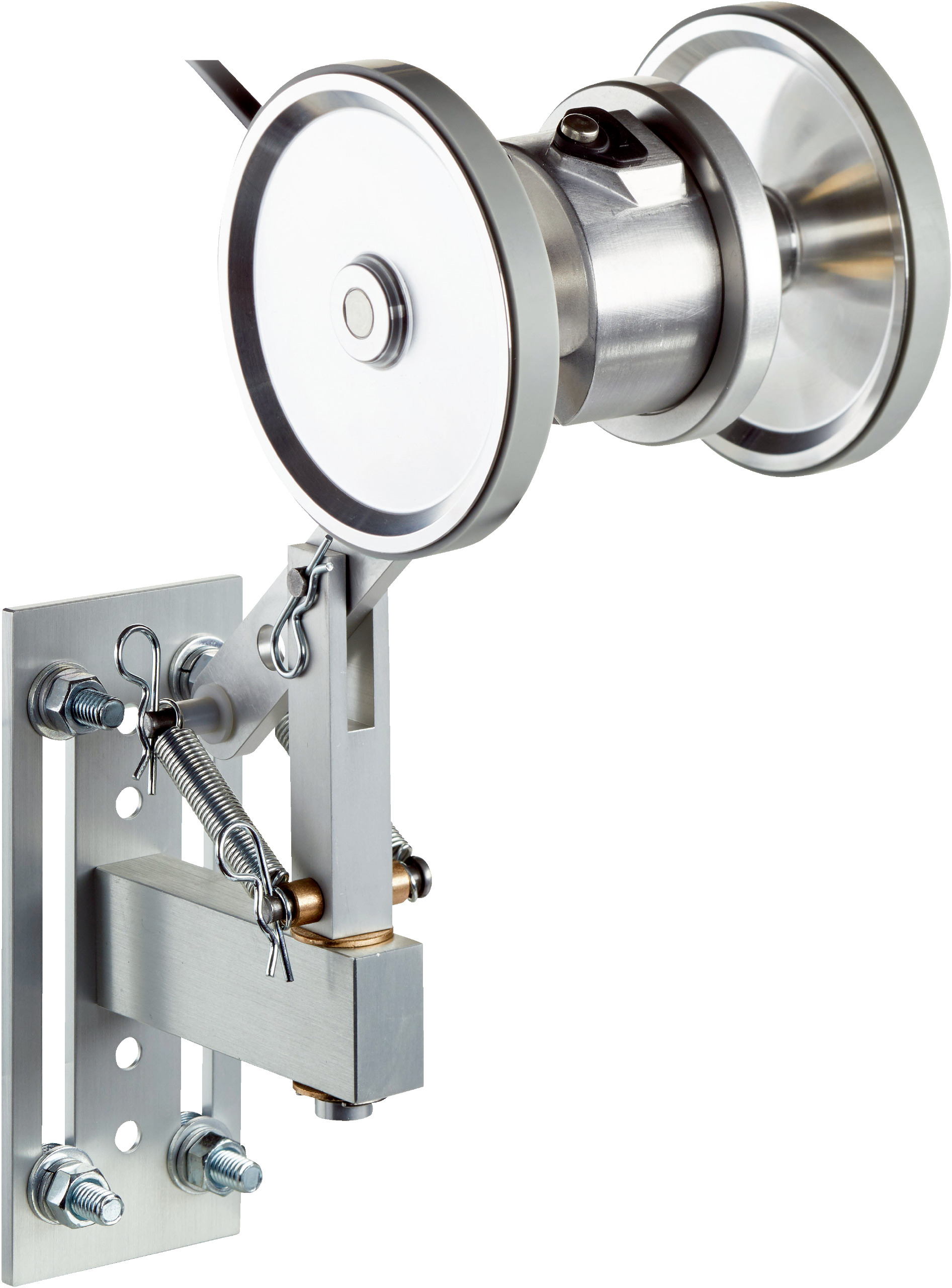

Incremental Rotary Encoder DUV60E-D4KKHBGA | IP65 Rated | 12-Inch Measuring Wheel | High Durability | by SICK
The DUV60E-D4KKHBGA incremental rotary encoder is designed for precise position and speed measurement in industrial automation. With a measuring wheel circumference of 12 inches and an IP65 rated enclosure, it ensures reliable performance in harsh environments. Built for durability with a stainless steel shaft and aluminum housing, this encoder is perfect for conveyor systems, robotics, and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 48 (type-dependent)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1, positioned at 180° electric, gated with A
- Connection type: 8-wire cable, 1.5 m length
- Operating speed: up to 1500 min⁻¹
- Start-up torque: 0.5 Ncm
- Operating torque: 0.4 Ncm
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -30°C to +70°C
- Resistance to shocks: 100 g
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 120mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- Incremental communication interface with TTL/HTL output
- Measuring wheel circumference of 12 inches with smooth plastic (urethane) surface
- High durability with stainless steel shaft and aluminum housing
- Operating temperature range from -30°C to +70°C
- IP65 rated enclosure for dust and water resistance
- Short-circuit and reverse polarity protection
- High maximum output frequency of 60 kHz
- Spring arm design with under-belt flange mount for reliable contact
- Long bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper mounting, wiring, and calibration according to manufacturer guidelines.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt systems
- Material handling and packaging machinery
- Robotics and motion control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable materials and long bearing life reduce waste and replacement frequency
- IP65 rating ensures protection against dust and water, extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KKHBGA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
