Incremental Rotary Encoder | High Precision ±0.03° | 6-Channel Output | IP65/IP67 Rated | by SICK

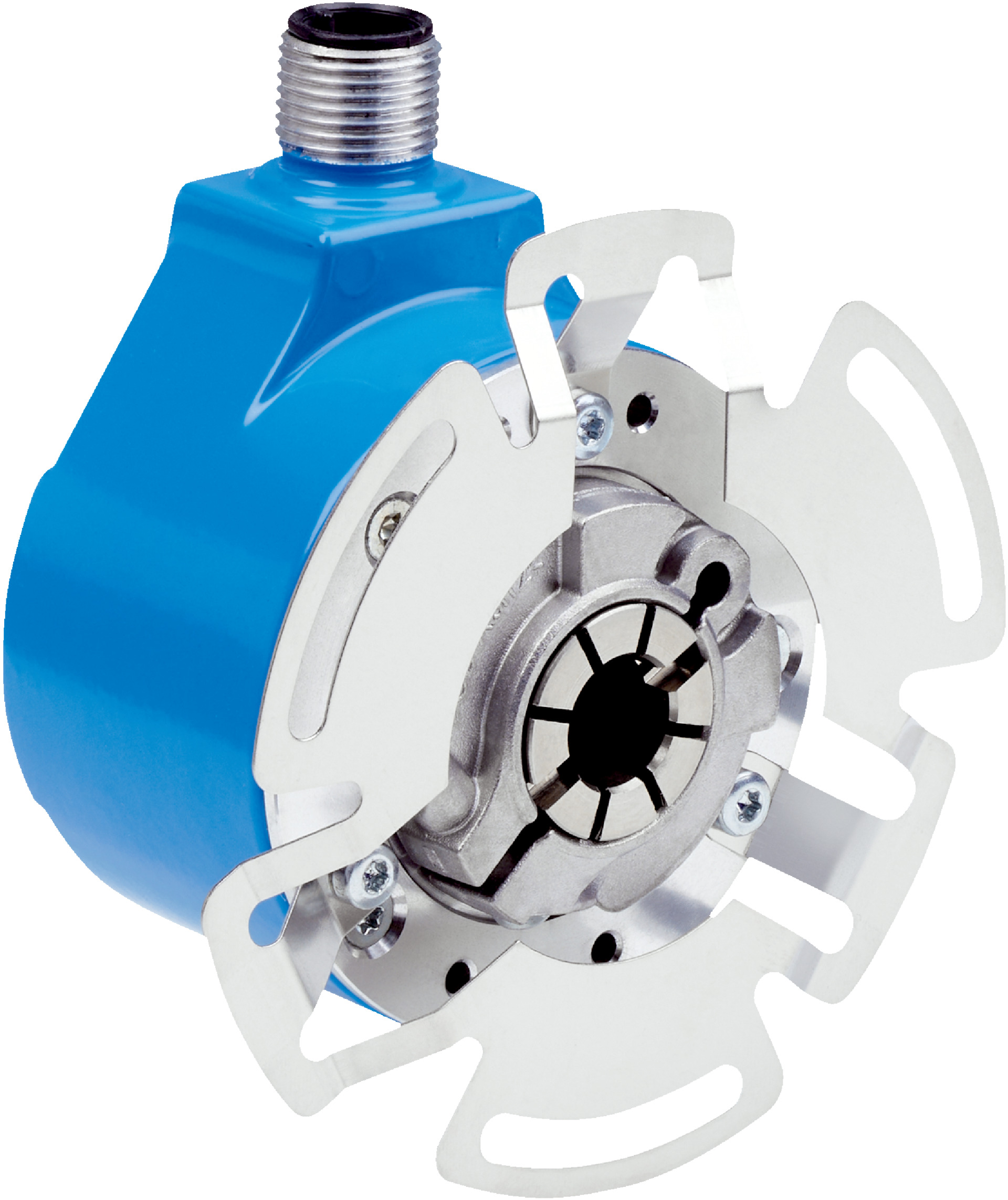

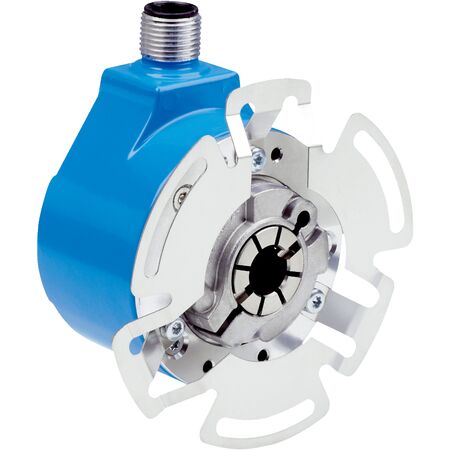

The Incremental Rotary Encoder DFS22A-LCB1C000100 offers high precision with ±0.03° error limits and a robust mechanical design featuring a blind hollow shaft. Ideal for industrial automation and robotics, it operates in a wide temperature range from –30 °C to +85 °C, ensuring reliable performance in demanding environments. With an IP65/IP67 rating for dust and water protection, this encoder is perfect for machine tool feedback and positioning applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 330 years (EN ISO 13849-1)
- Pulses per revolution: 100
- Measuring step: ±90°, electric/pulses per revolution
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 8 to 30 V
- Reference signal position: 180°, electric, gated with A
- Mechanical design: Blind hollow shaft with 3/8″ front clamp
- Flange type: 3-point stator coupling
- Shaft material: Stainless steel 1,4305
- Housing and flange material: Aluminum
- Start up torque: 0.8 Ncm at +20 °C
- Operating torque: 0.6 Ncm at +20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Operating speed: up to 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: up to 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: –30 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 100 g, 11 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- High precision with ±0.03° error limits
- Incremental communication interface with HTL / Push pull
- 6-channel signal output
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- Wide operating temperature range from –30 °C to +85 °C
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity and short-circuit protection
- Low power consumption of 0.7 W without load
- High resistance to shocks (100 g) and vibration (30 g)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Machine tool feedback and positioning
Standards & Compliance
- Complies with AS/NZS 61000 series for electromagnetic compatibility
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS22A-LCB1C000100 incremental encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
