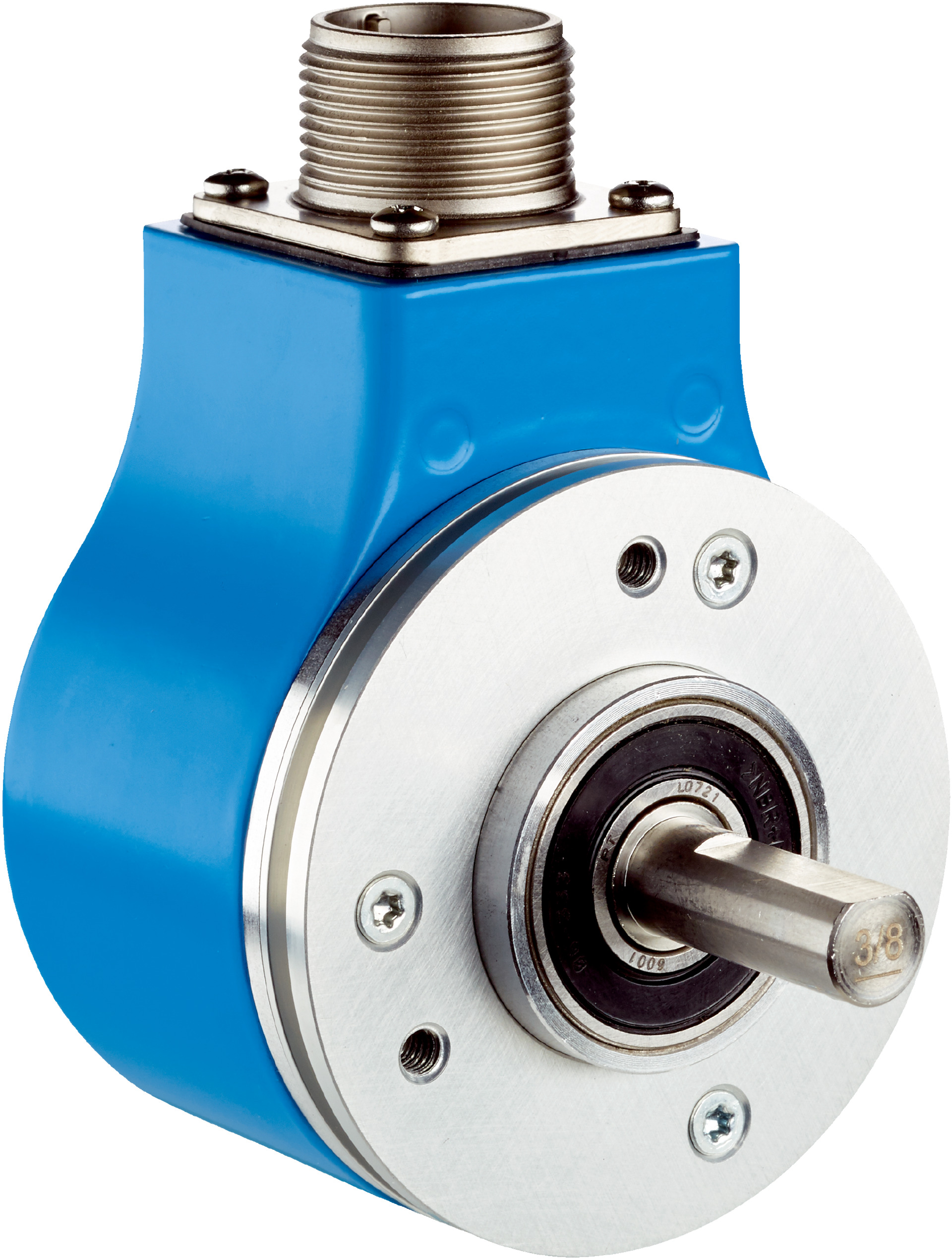

Incremental Rotary Encoder DFS25A-B1B1E000060 | High Precision ±0.04° | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder DFS25A-B1B1E000060 offers high precision with a measuring step deviation of ±0.04° and error limits of ±0.03°. Designed for industrial automation, this robust encoder features a solid shaft and servo flange, making it ideal for applications like servo motor feedback and robotics. With an impressive operating speed of up to 9,000 min⁻¹ and IP65/IP67 ratings for dust and water protection, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 330 years (EN ISO 13849-1)
- Pulses per revolution: 60
- Measuring step: ±90°, electric/pulses per revolution
- Measuring step deviation: ±0.04° pulses 1...99
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- 0-set function via hardware pin: Yes, H-active
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, MS, 7-pin, radial
- Supply voltage: 8...30 V
- Reference signal: 1, position 180°, gated with A
- Code sequence: Clockwise
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6.35 mm (1/4 inch) with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel 1.4305
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.4 kg
Key Features
- High precision with measuring step deviation of ±0.04° and error limits of ±0.03°
- Robust mechanical design with solid shaft and servo flange
- High operating speed up to 9,000 min⁻¹
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity and short-circuit protection
- Low power consumption of 0.7 W without load
- 6-channel incremental communication interface with HTL / Push pull output
