Incremental Rotary Encoder | HTL Output | IP65 Rated | 60 kHz Max Frequency | by SICK
The Incremental Rotary Encoder is designed for precise rotational measurement in industrial automation. With an HTL output and an IP65 rated enclosure, it ensures high reliability and protection against dust and water. Ideal for machine control systems and safety-related applications, this encoder operates efficiently within a temperature range of -30 °C to +70 °C, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 1500
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: less than 5 ms
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max: ≤ 30 mA per channel
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Start up torque: 0.5 Ncm
- Operating torque: 0.4 Ncm
- Operating speed: up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Maximum travel/deflection of spring arm: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature range: -30 °C to +70 °C
- Storage temperature range: -40 °C to +75 °C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.9 kg
Key Features
- MS 3-pin connector at the end of a 500 mm cable with DIP switches pre-set to HTL output
- Incremental communication interface with TTL / HTL selectable output
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Operating power consumption of 120 mA with supply voltage from 4.75 V to 30 V
- Robust mechanical design with stainless steel shaft, aluminum flange and housing
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection on outputs
- Operating temperature range from -30 °C to +70 °C
- High maximum output frequency of 60 kHz
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial electrical standards to ensure proper connection and safety compliance.
Applications
- Industrial automation for precise rotational measurement
- Machine control systems requiring incremental position feedback
- Safety-related applications with high reliability requirements
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now

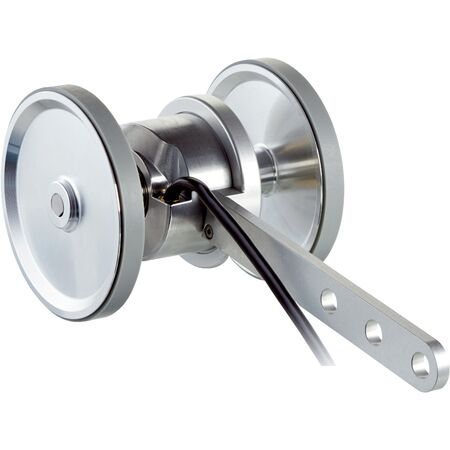

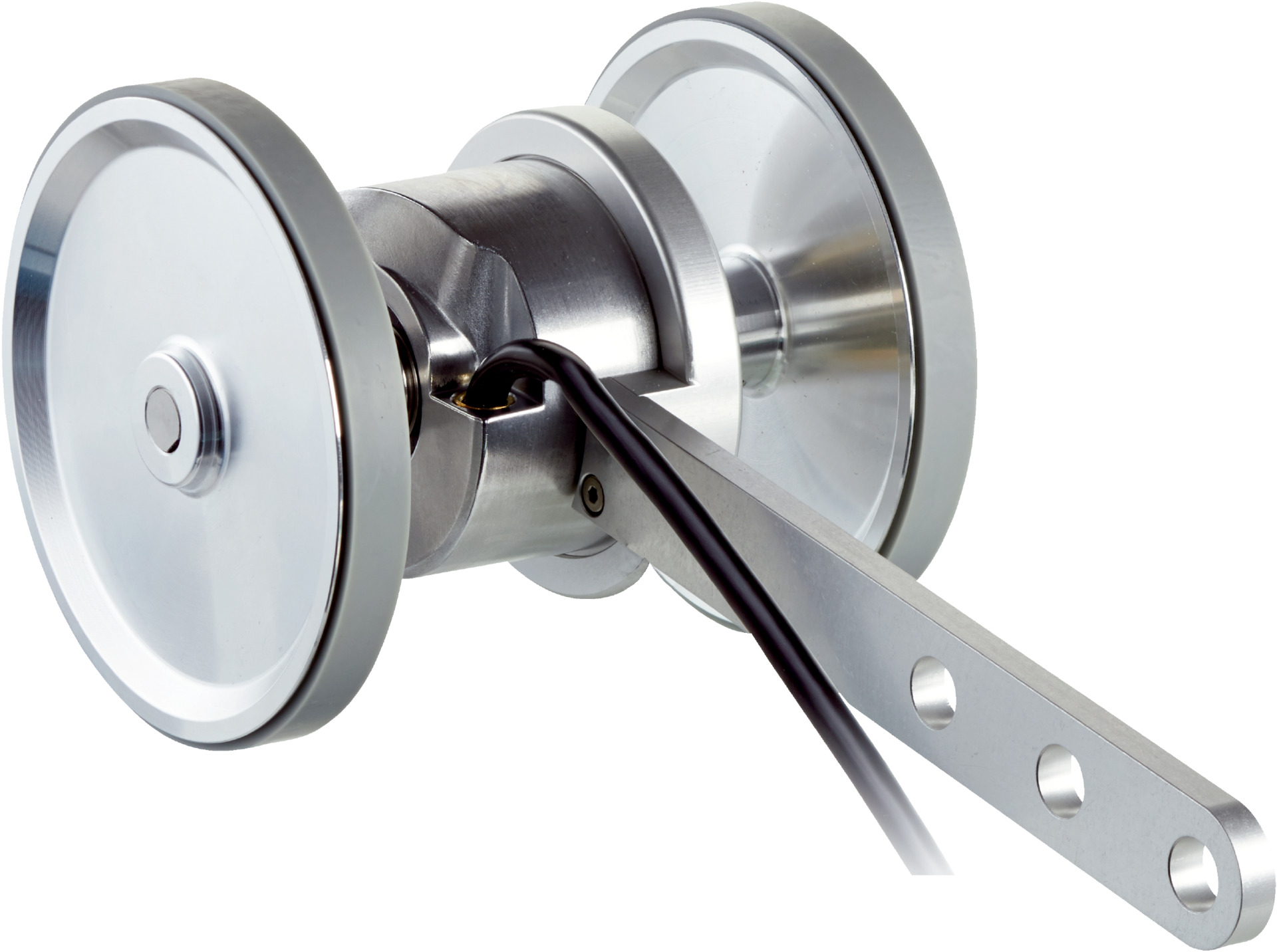

The SICK DUV60E-Z4KZWZZAS05 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise rotational measurement.
