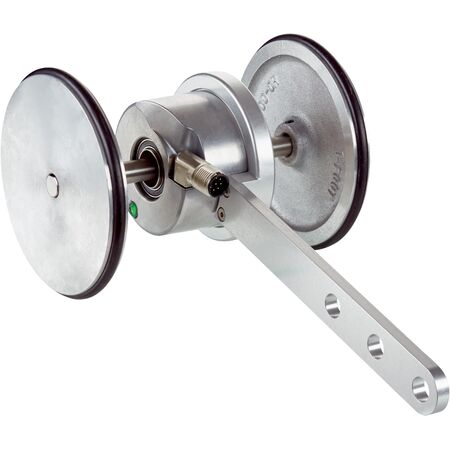

Incremental Rotary Encoder SICK DUV60E-32KFWAEA | IP65 Rated | 0.125 mm/pulse Resolution | 1500 min⁻¹ Speed | by SICK
The SICK DUV60E-32KFWAEA incremental rotary encoder delivers high reliability and precision for industrial automation. With a resolution ranging from 0.125 mm/pulse to 304.8 mm/pulse and an operating speed of up to 1500 min⁻¹, it's perfect for machine tool feedback and robotics applications. Its robust aluminum housing and IP65 rating ensure durability in demanding environments, making it an ideal choice for precise position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 240 (type-dependent)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Reference signal: 1 at 180° electric, gated with A
- Connection: Male M12 4-pin connector
- Operating speed: up to 1500 min⁻¹
- Start-up torque: 0.5 Ncm
- Operating torque: 0.4 Ncm
- Measuring wheel circumference: 300 mm
- Enclosure rating: IP65
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Selectable output via DIP switch
- Robust aluminum housing and flange with stainless steel shaft
- Operating temperature range from -30°C to +70°C
- IP65 rated enclosure for dust and water resistance
- Short-circuit and reverse polarity protection
- Maximum output frequency of 60 kHz
- Bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Machine tool feedback systems
- Conveyor and material handling systems
- Robotics and motion control applications
Standards & Compliance
- Complies with AS/NZS 61000 series for EMC standards
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-32KFWAEA incremental encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
