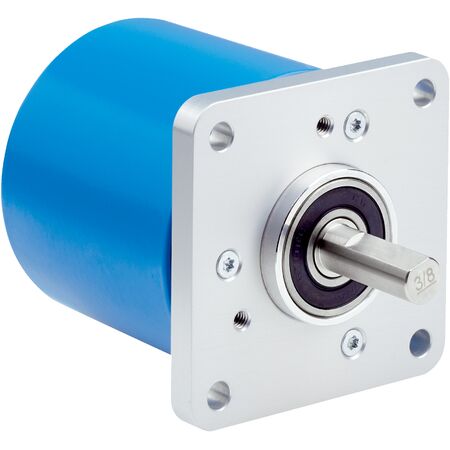

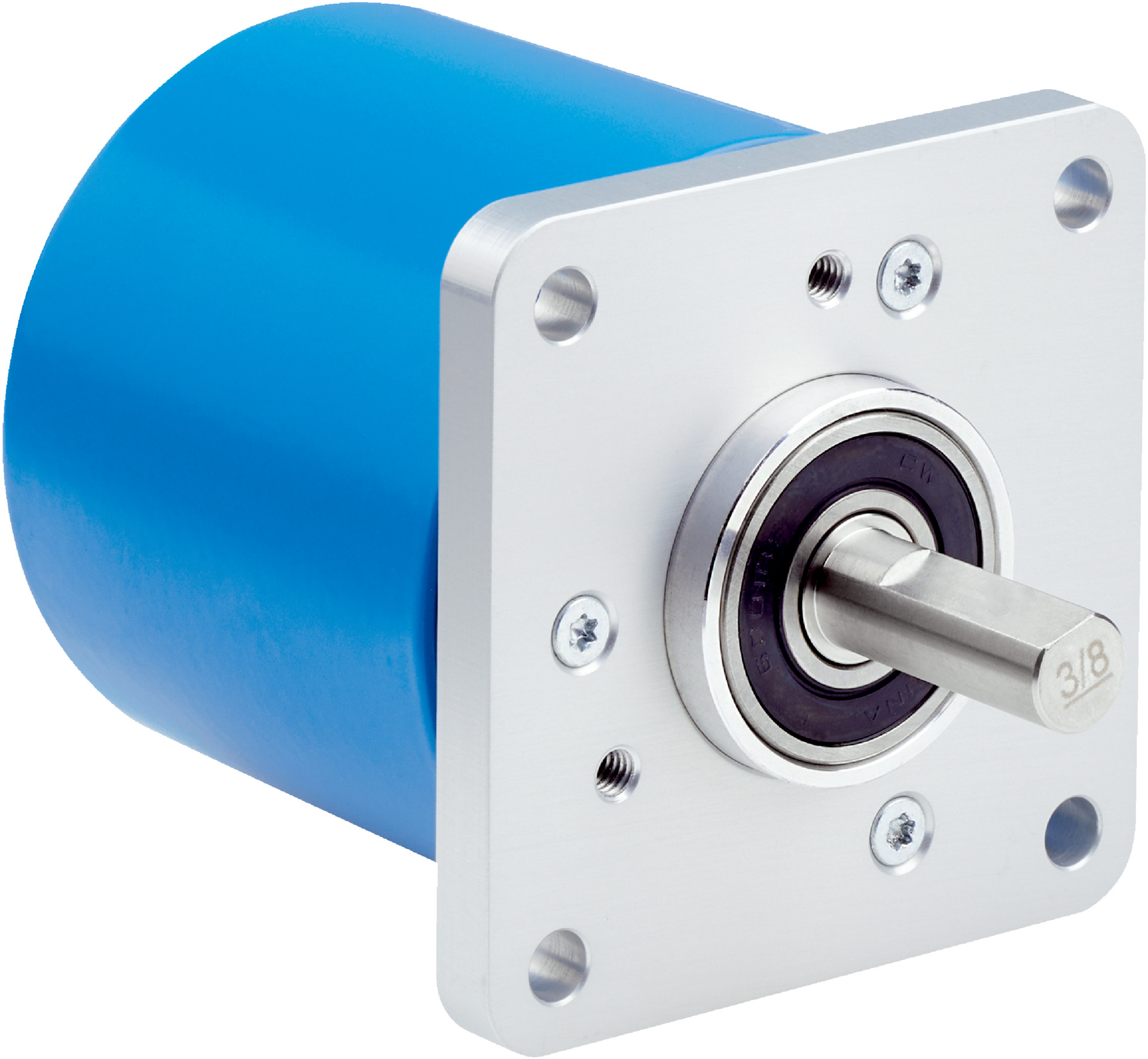

Incremental Rotary Encoder DFS25A-A1B17000100 | ±0.008° Precision | 6-Channel HTL Interface | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder DFS25A-A1B17000100 offers high precision with a measuring step deviation of ±0.008°, making it ideal for industrial automation and motion control applications. With a robust mechanical design and a wide operating temperature range from –30 °C to +85 °C, this encoder ensures reliable performance in demanding environments. Its IP65/IP67 rating provides excellent protection against dust and water, ensuring longevity and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 100
- Measuring step: ±90°, electric/pulses per revolution
- Measuring step deviation: ±0.008° pulses 100 ... 10,000
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- 0-set function via hardware pin: Yes, H-active
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Cable, 9-wire, axial, 5 m
- Supply voltage: 8 ... 30 V
- Mechanical design: Solid shaft, Square flange
- Shaft diameter: 1/4″ with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel 1,4305
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial), 40 N (axial)
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of the rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.4 kg
Key Features
- High precision with measuring step deviation of ±0.008°
- 6-channel incremental communication interface with HTL / Push pull
- Robust mechanical design with solid shaft and square flange
- Wide operating temperature range from –30 °C to +85 °C
- IP65 rated shaft side and IP67 rated housing side for protection
- Reverse polarity and short-circuit protection
- Low power consumption of 0.7 W without load
- High operating speed up to 9,000 min⁻¹
