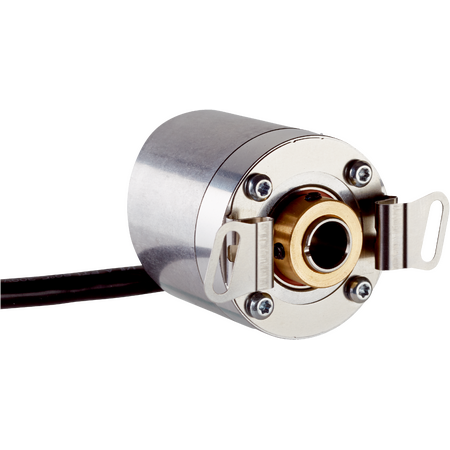

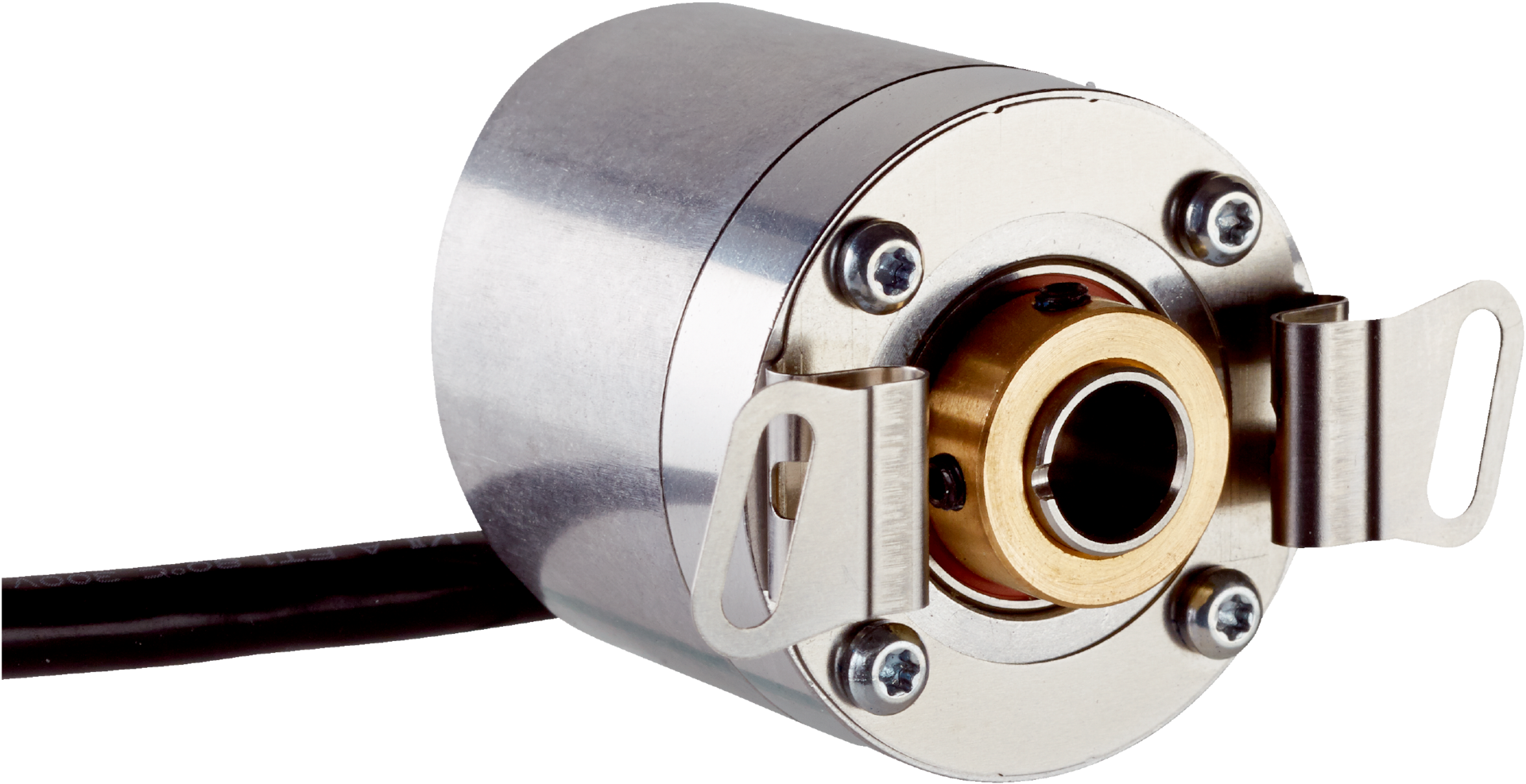

Incremental Rotary Encoder SICK DBS36E-BBEP02048 | 2048 Pulses/Rev | IP65 Rated | Stainless Steel Shaft | by SICK
The SICK DBS36E-BBEP02048 incremental rotary encoder delivers high precision with 2048 pulses per revolution, making it ideal for industrial automation and robotics. Its robust blind hollow shaft design features a stainless steel shaft and an IP65 rated enclosure, ensuring durability in harsh environments. With a wide operating temperature range from -20°C to +85°C and low power consumption, this encoder is perfect for applications requiring reliable motion control feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Incremental rotary encoder, blind hollow shaft encoder, industrial position sensor, SICK DBS36 encoder
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±18° / pulses per revolution
- Error limits: ±54° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 3 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, with male M12 8-pin connector, 0.5 m length
- Supply voltage: 7 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 8 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start up torque: +0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: ≤ 8,000 min⁻¹
- Moment of inertia of rotor: 0.8 gcm²
- Bearing lifetime: 2 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C (extended range on request)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 48mm x 36mm
- Weight: 0.15 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Robust blind hollow shaft mechanical design with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -20°C to +85°C
- Short-circuit and reverse polarity protection
- Low power consumption of ≤ 0.5 W without load
- High maximum operating speed up to 8,000 min⁻¹
- 6-channel incremental HTL / Push pull communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise rotational position measurement
- Robotics for motion control feedback
- Conveyor systems for speed and position monitoring
- Machine tools requiring high accuracy incremental encoders
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS36E-BBEP02048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
