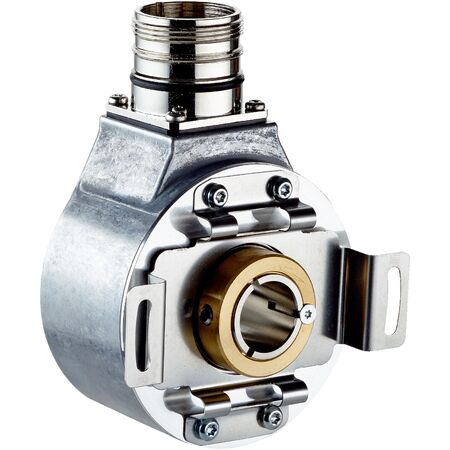

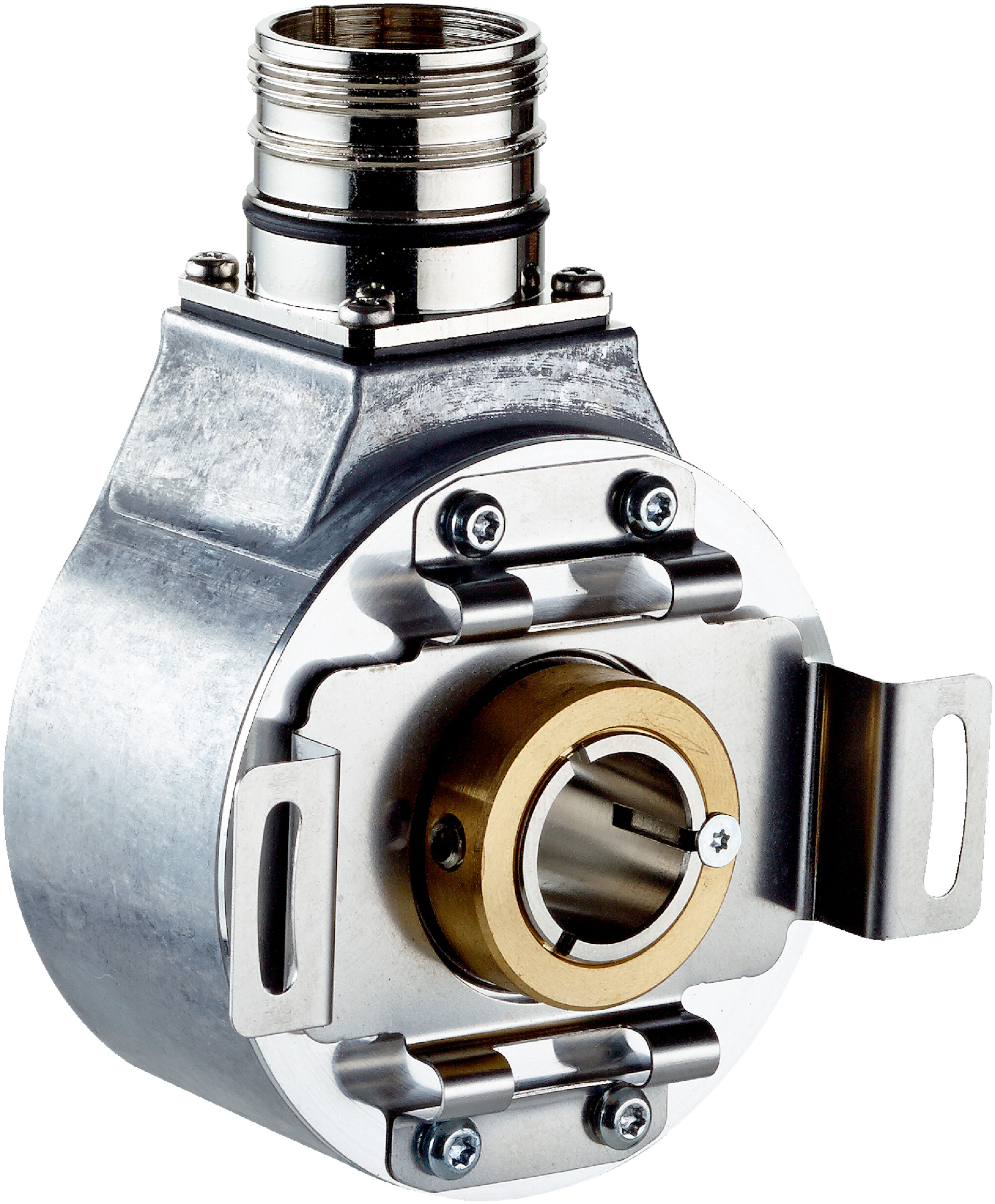

Incremental Rotary Encoder SICK DBS60E-TDFAB4096 | 4096 Pulses/Rev | IP65 Rated | Fast Initialization | by SICK
The SICK DBS60E-TDFAB4096 incremental rotary encoder delivers high precision with 4,096 pulses per revolution, making it ideal for industrial automation and robotics applications. With an IP65 rating for dust and water protection, this encoder ensures reliable performance in harsh environments. Its fast initialization time of under 5 ms and robust mechanical design make it a top choice for machine tool positioning and feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 4,096
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 36° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 10%
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 30 V
- Shaft diameter: 10 mm front clamp
- Flange type: Stator coupling, 2-sided, screw hole circle 63 mm
- Housing material: Aluminum
- Shaft material: Stainless steel
- Operating temperature range: -30°C to +100°C
- Enclosure rating: IP65 (housing and shaft side)
- Resistance to shocks: 250 g, 3 ms
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 63mm x 40mm x 63mm
- Weight: 0.25 kg
Key Features
- High resolution with 4,096 pulses per revolution
- Robust through hollow shaft mechanical design
- IP65 rated housing and shaft side for dust and water protection
- Reverse polarity and short-circuit protection
- Fast initialization time under 5 ms
- Supports TTL and HTL incremental communication interfaces
- Operating temperature range from -30°C to +100°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Low power consumption of ≤ 0.5 W without load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
