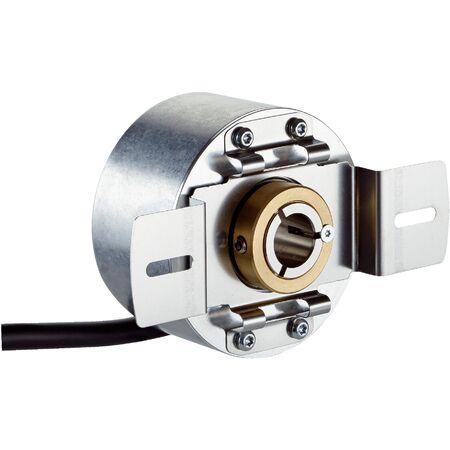

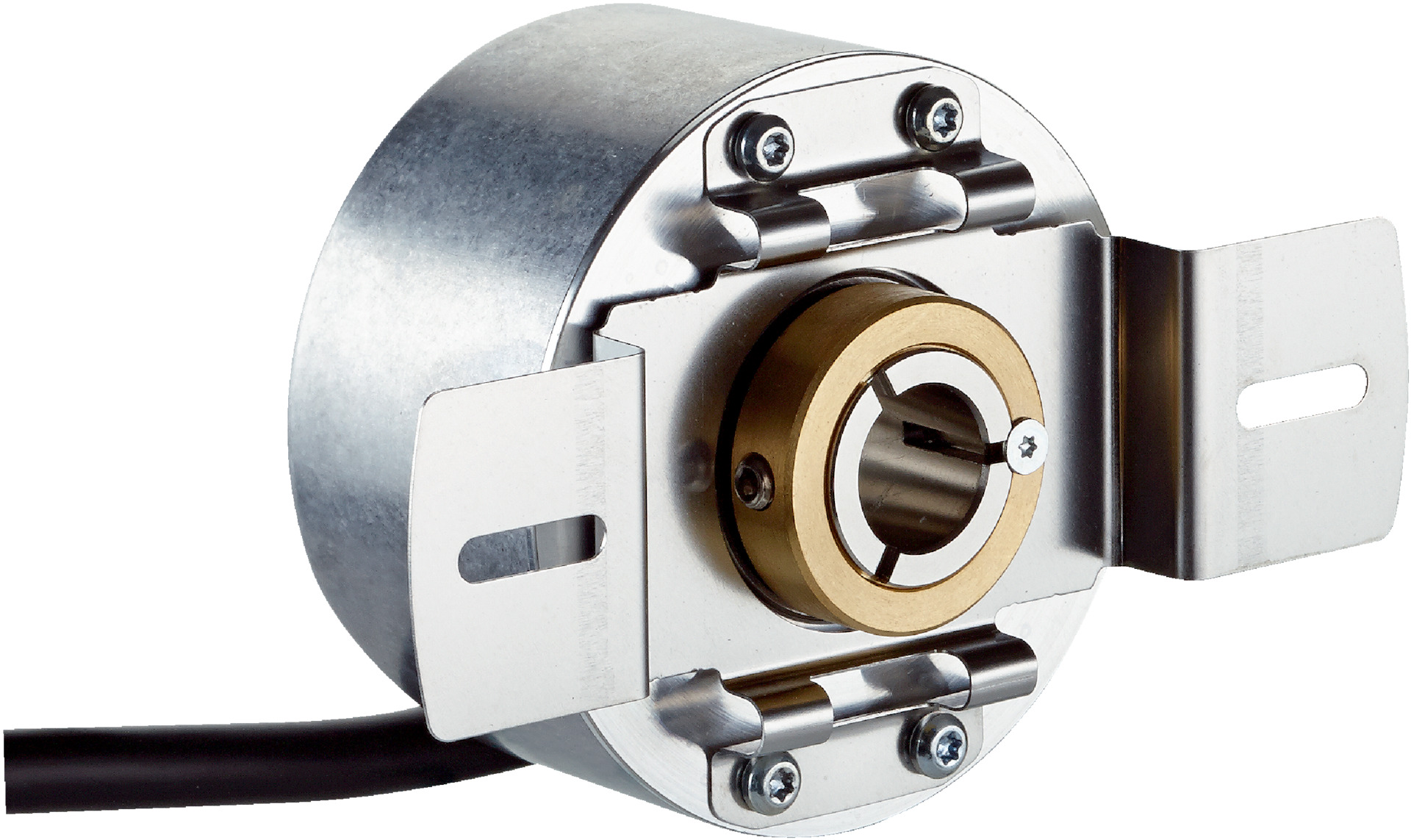

Incremental Rotary Encoder SICK DBS60E | 48 Pulses/Rev | IP65 Rated | High Speed 9000 RPM | by SICK
The Incremental Rotary Encoder SICK DBS60E is designed for precise rotational position and speed measurement in industrial automation. With 48 pulses per revolution and a high operating speed of up to 9,000 min⁻¹, it features a robust aluminum housing and stainless steel shaft for durability. Ideal for robotics, conveyor systems, and machinery feedback, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 48
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA (without load)
- Connection type: Cable, 8-wire, universal, 10 m
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 5/8″ front clamp
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- Incremental communication interface with TTL / RS-422
- 6-channel signal output with up to 300 kHz frequency
- Through hollow shaft mechanical design with 5/8″ front clamp
- High operating speed up to 9,000 min⁻¹
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection on outputs
- Low start-up torque of 0.5 Ncm and operating torque of 0.4 Ncm
- High bearing lifetime of 3.6 x 10⁹ revolutions
- Wide operating temperature range from -20 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Rotational position and speed measurement
- Robotics and machinery feedback
- Conveyor systems and material handling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption electronics enhance energy efficiency
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-TJAN00048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise rotational measurement applications.
