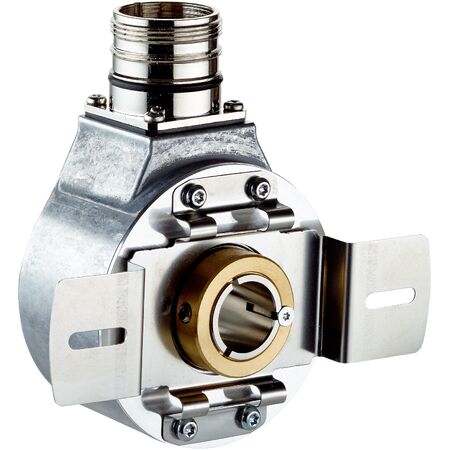

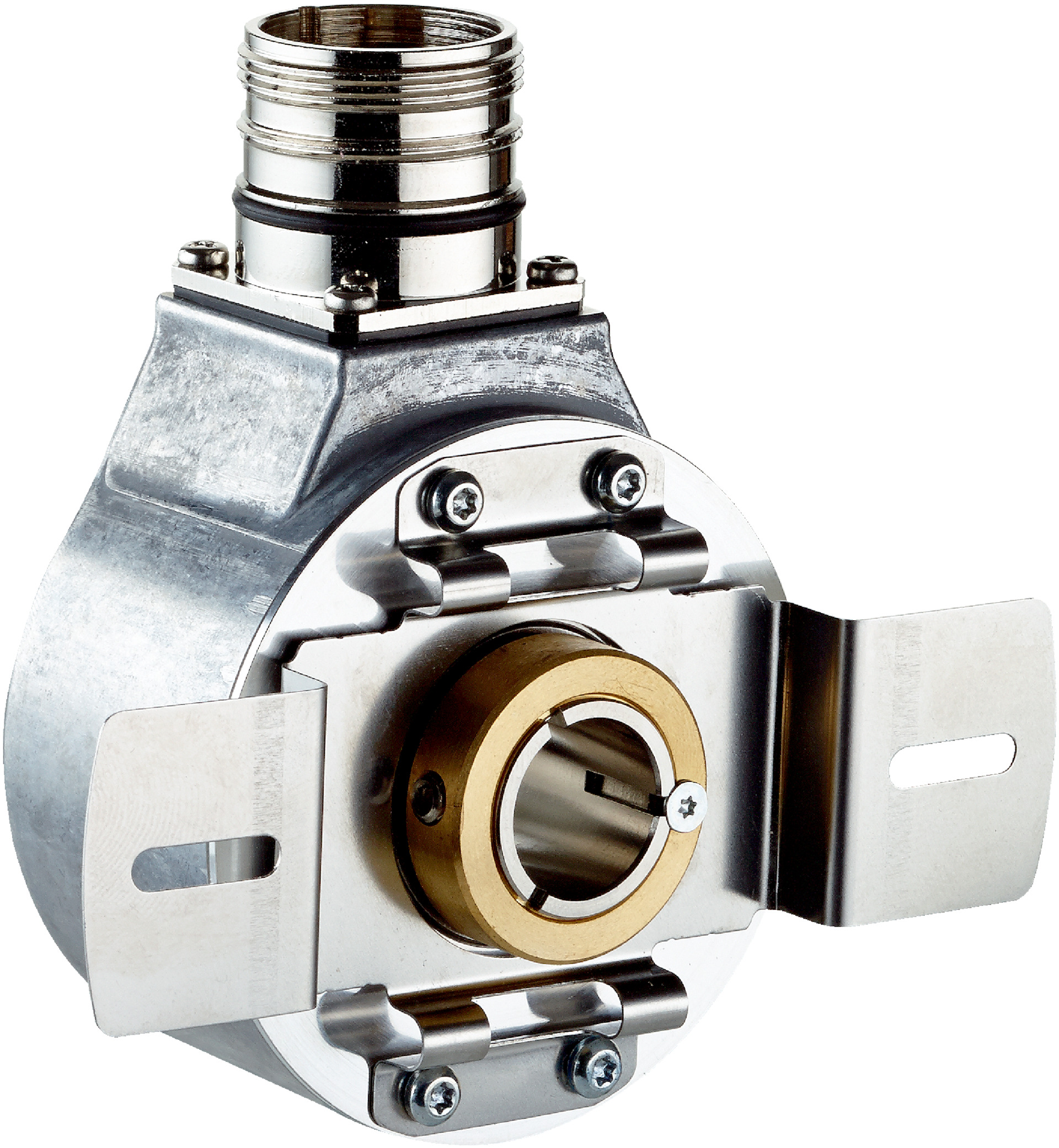

Incremental Rotary Encoder SICK DBS60E-BHEA00010 | 6-Channel Output | IP67 Rated | High Speed up to 9000 RPM | by SICK
The SICK DBS60E-BHEA00010 incremental rotary encoder is designed for precise rotational position and speed measurement in industrial automation. With a robust aluminum housing, 6-channel output, and an impressive operating speed of up to 9,000 min⁻¹, it’s perfect for machine tool feedback and robotics applications. Its IP67 rating ensures durability in harsh environments, making it a reliable choice for demanding industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 500 years (EN ISO 13849-1)
- Pulses per revolution: 10
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Supply voltage: 10 to 27 V
- Connection type: Male connector, M23, 12-pin, radial
- Shaft diameter: 15 mm front clamp
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Operating torque: 0.4 Ncm at 20°C
- Start up torque: 0.5 Ncm at 20°C
- Operating speed: 6,000 min⁻¹ (max 9,000 min⁻¹)
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Enclosure rating: IP67 housing side, IP65 shaft side
- Resistance to shocks: 250 g, 3 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- Incremental communication interface with HTL / Push pull output
- 6-channel signal output with 10 pulses per revolution
- Robust aluminum housing and flange with stainless steel shaft
- High operating speed up to 9,000 min⁻¹
- IP67 rated housing side and IP65 shaft side for harsh environments
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 1 W without load
- High mechanical tolerance with permissible radial and axial movement
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial electrical standards to ensure proper connection and safety compliance.
Applications
- Industrial automation and control systems
- Rotational position and speed measurement
- Machine tool feedback
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BHEA00010 incremental encoder is available for immediate purchase, ideal for industrial automation and precise rotational measurement applications.
