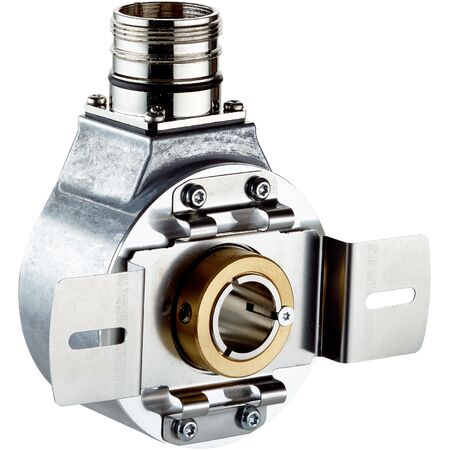

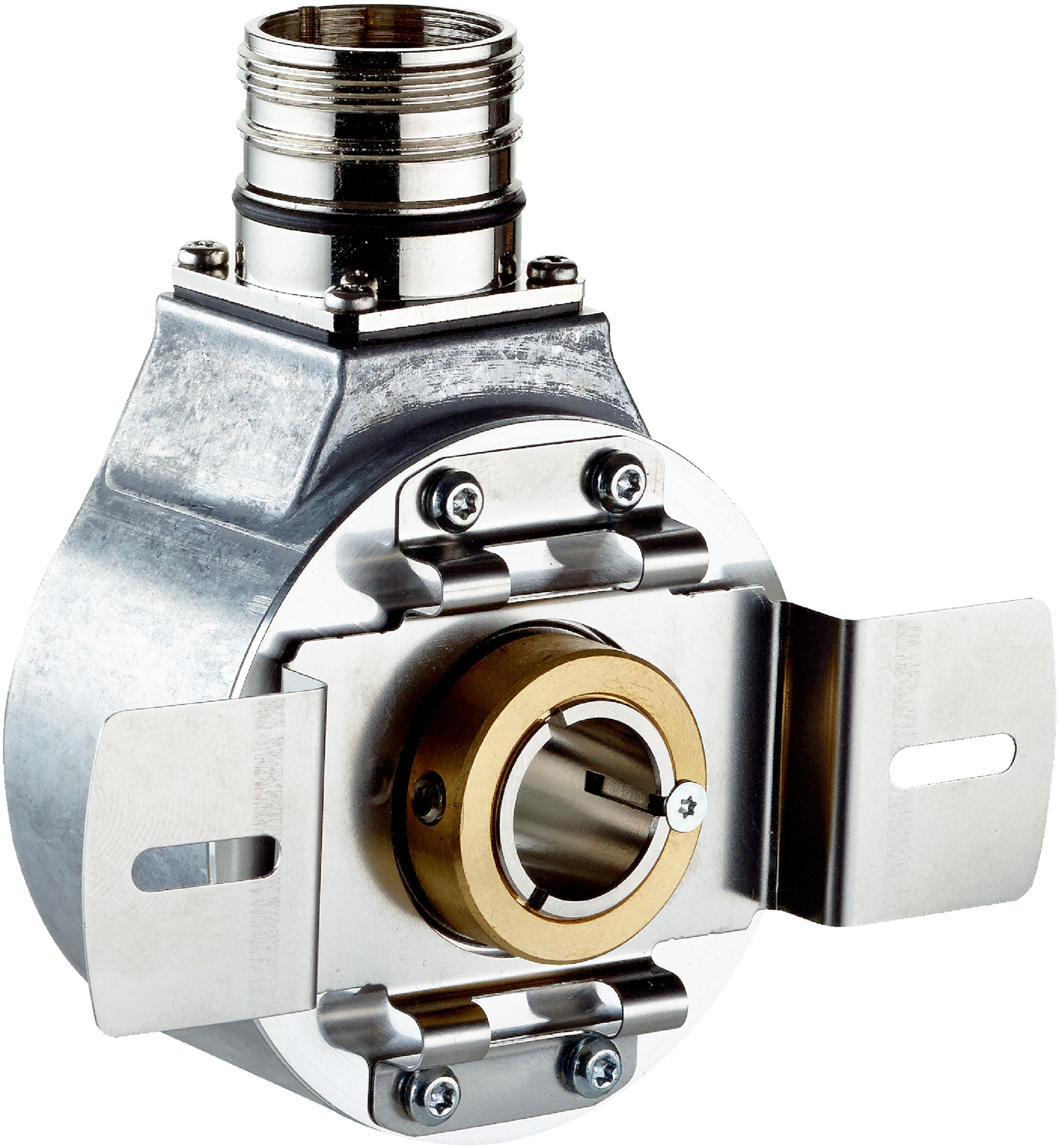

Incremental Rotary Encoder SICK DBS60E-BHEA01024 | 1024 Pulses/Rev | IP67 Rated | by SICK
The SICK DBS60E-BHEA01024 incremental rotary encoder delivers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and robotics applications. Its robust blind hollow shaft design features a stainless steel shaft and an IP67 rated housing, ensuring durability and protection against dust and water. With fast initialization under 5 ms and a high operating speed of up to 9,000 min⁻¹, this encoder is perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push-pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Blind hollow shaft with 15 mm diameter
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Start-up torque: +0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust blind hollow shaft design with stainless steel shaft
- IP67 rated housing for protection against dust and water
- Short-circuit and reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Low start-up and operating torque for minimal mechanical load
- 6-channel incremental HTL / Push-pull communication interface
- Fast initialization time under 5 ms
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems
- Machine tool feedback
- Safety-related monitoring applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤1 W contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBS60E-BHEA01024 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
