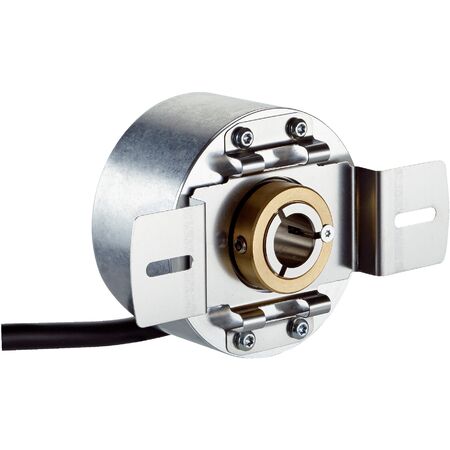

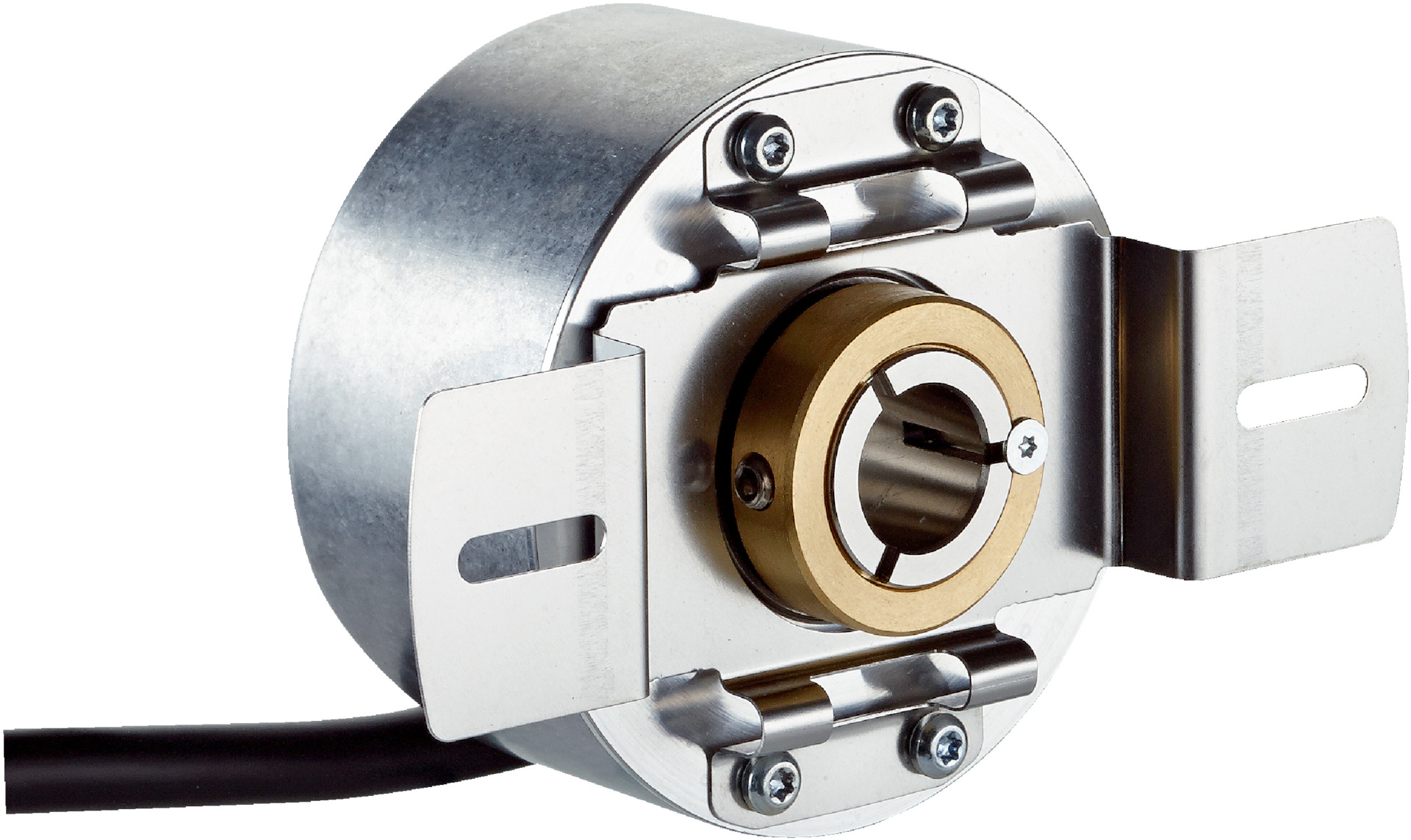

Incremental Rotary Encoder SICK DBS60E-BJCN05000 | 5000 Pulses/Rev | IP67 & IP65 Rated | by SICK
The SICK DBS60E-BJCN05000 incremental rotary encoder delivers high precision with 5,000 pulses per revolution, making it ideal for industrial automation and motion control applications. Its robust blind hollow shaft design and IP67/IP65 ratings ensure reliable performance in harsh environments, while features like reverse polarity protection and low power consumption enhance its durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 5,000
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 36° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 10%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: 8-wire cable, 10 m length
- Supply voltage: 10 to 30 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 5/8 inch front clamp
- Flange type: 2-sided stator coupling with slot, screw hole circle 63–83 mm
- Shaft material: Stainless steel
- Housing material: Aluminum
- Operating torque: 0.4 Ncm at 20°C
- Start-up torque: 0.5 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- High resolution with 5,000 pulses per revolution
- Robust blind hollow shaft mechanical design
- IP67 rated housing side and IP65 shaft side for harsh environments
- Reverse polarity and short-circuit protection
- Low power consumption of ≤ 0.5 W
- High operating speed up to 9,000 min⁻¹
- Durable stainless steel shaft and aluminum housing
- Fast initialization time of less than 5 ms
- 6-channel incremental TTL/RS-422 communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems
- Machine tool feedback
- Position and speed sensing in manufacturing
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BJCN05000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
