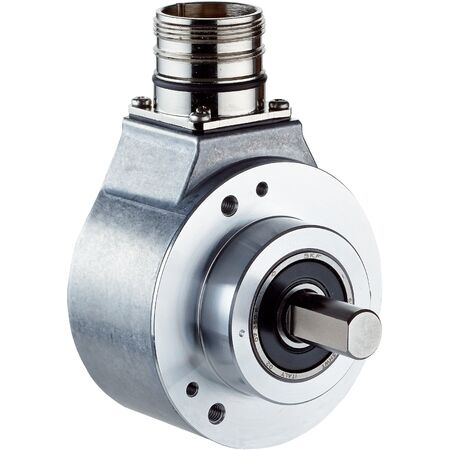

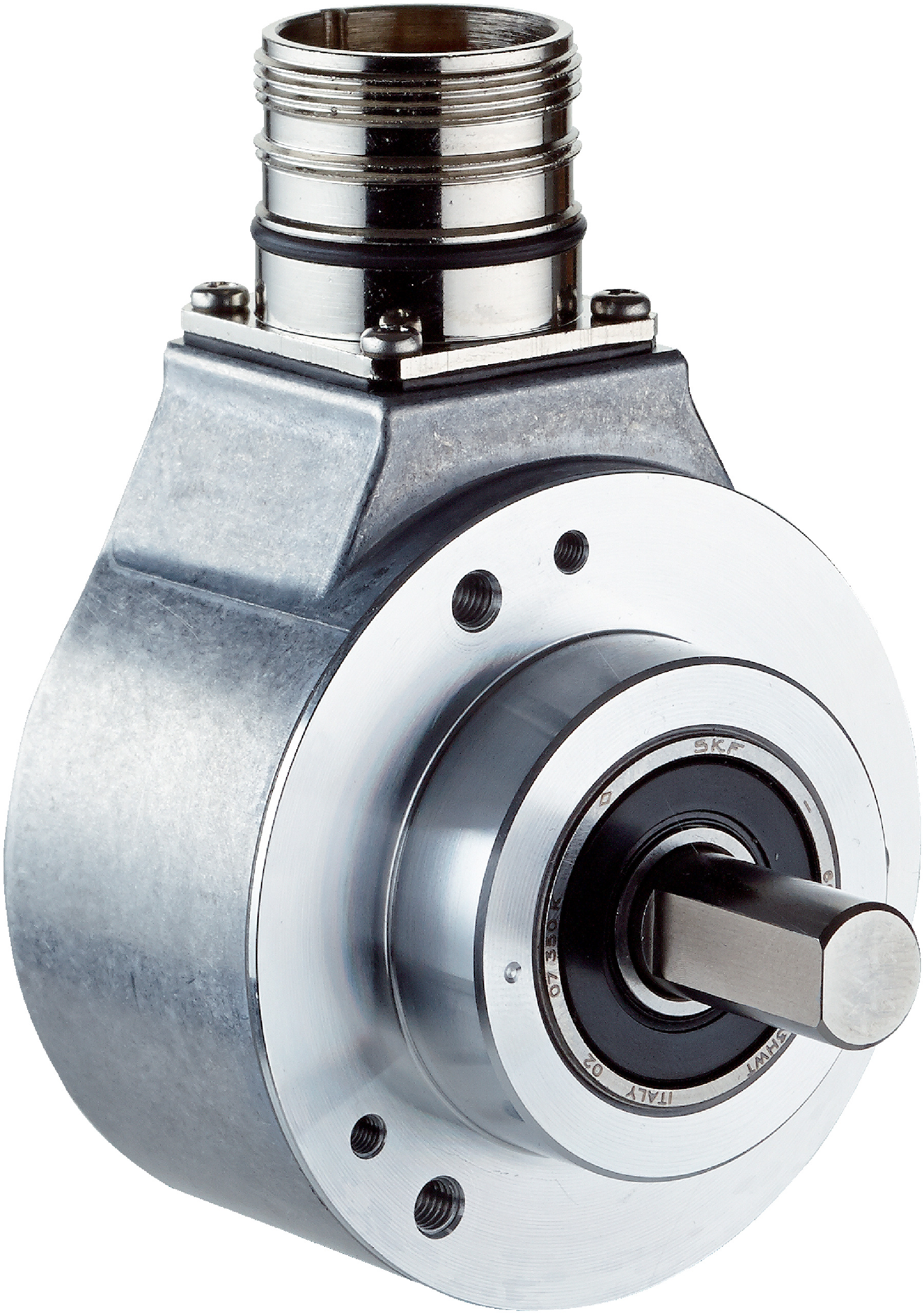

Incremental Rotary Encoder SICK DBS60E-S3EA00100 | 6-Channel Output | IP67 Rated | by SICK
The SICK DBS60E-S3EA00100 incremental rotary encoder features a robust solid shaft design and a high output frequency of up to 300 kHz, making it ideal for industrial automation and motion control applications. With an IP67 rated housing and a wide operating temperature range from -20°C to +85°C, this encoder ensures reliable performance in demanding environments. Its low power consumption and high mechanical durability further enhance its suitability for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 500 years (EN ISO 13849-1)
- Pulses per revolution: 100
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Flange type: Flange with 3 x M3 and 3 x M4 screws
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 1.2 Ncm at 20°C
- Operating torque: 1.1 Ncm at 20°C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 60mm x 58mm
- Weight: 0.3 kg
Key Features
- Incremental communication interface with HTL / Push pull
- 6-channel signal output
- High output frequency up to 300 kHz
- Robust solid shaft with stainless steel material
- Flange mounting with 3 x M3 and 3 x M4 screws
- IP67 rated housing side and IP65 shaft side for protection
- Operating temperature range from -20°C to +85°C
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 1 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems
- Machine tool feedback
- Position and speed measurement in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-S3EA00100 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
