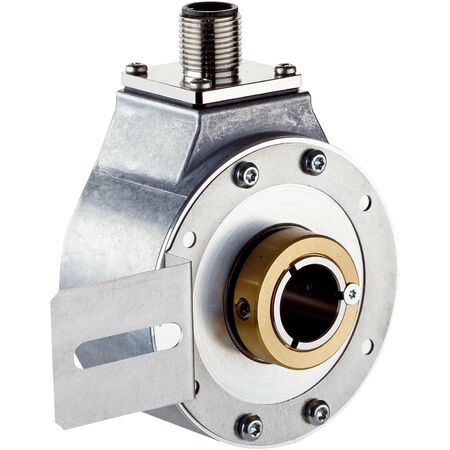

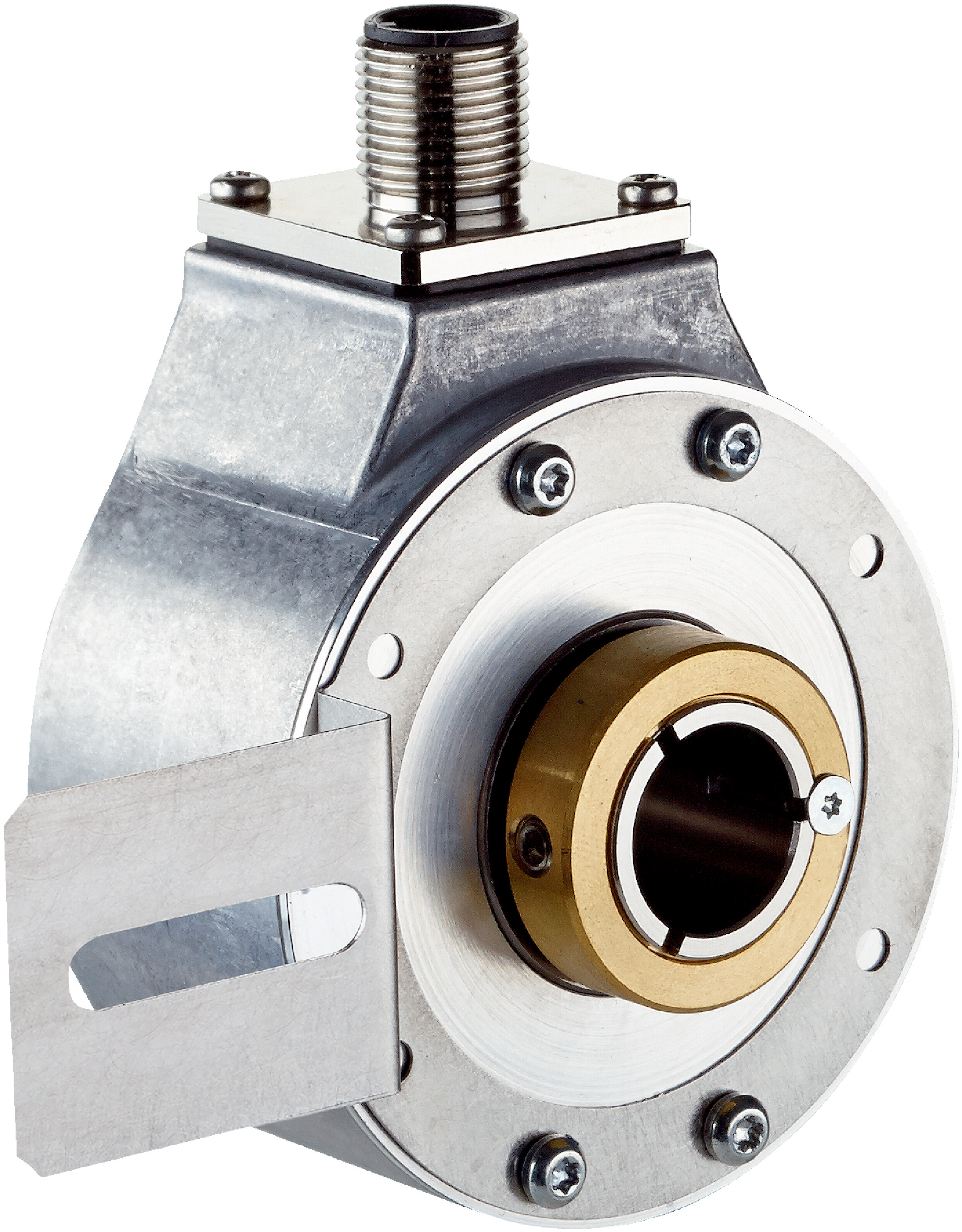

Incremental Rotary Encoder SICK DBS60E-TEECD1024 | 1024 Pulses/Rev | IP65 Protection | 12mm Hollow Shaft | by SICK
The SICK DBS60E-TEECD1024 incremental rotary encoder delivers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and motion control applications. Its robust aluminum housing features IP65 protection, ensuring durability in harsh environments. With a wide operating temperature range from -20 °C to +85 °C and reverse polarity protection, this encoder is built for reliability and longevity in demanding settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm (front clamp)
- Flange type: 1-sided stator coupling with slot, screw hole circle radius 31.5–48.5 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust aluminum housing with IP65 protection on housing and shaft sides
- Through hollow shaft design with 12 mm shaft diameter
- Supports incremental HTL / Push pull communication interface
- Low power consumption ≤ 1 W without load
- Reverse polarity and short-circuit protection on outputs
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Wide operating temperature range from -20 °C to +85 °C
- High resistance to shocks (250 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and packaging machinery
- Machine tool feedback and control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-TEECD1024 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
