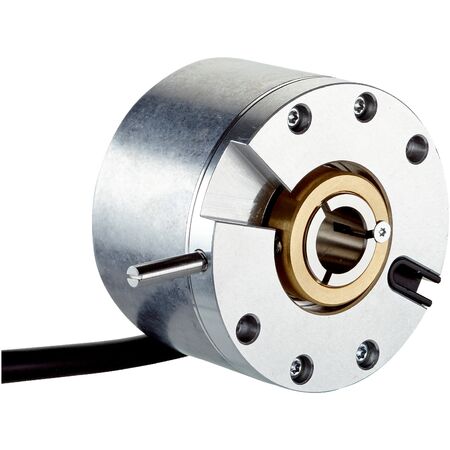

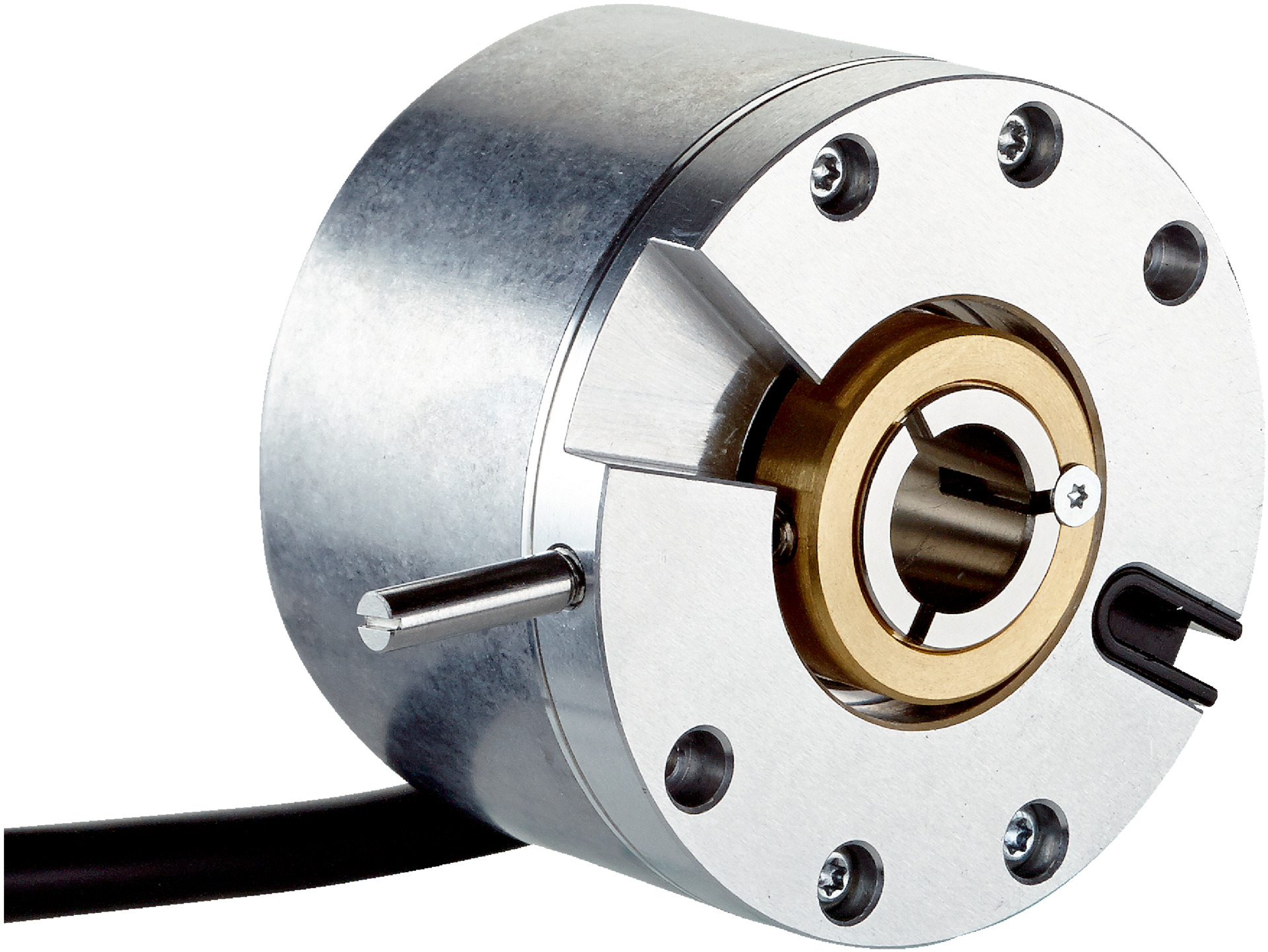

Incremental Rotary Encoder SICK DBS60E-TFEQC1024 | 1024 PPR | IP65 Rated | Stainless Steel Shaft | by SICK
The SICK DBS60E-TFEQC1024 incremental rotary encoder delivers precise position feedback with 1024 pulses per revolution, making it ideal for industrial automation and robotics applications. With a robust design featuring a stainless steel shaft and IP65 rated enclosure, it ensures high reliability and performance in demanding environments. Enjoy fast initialization under 5 ms and a wide operating temperature range from -20°C to +85°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 500 years (EN ISO 13849-1)
- Pulses per revolution: 1024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: 8-wire cable with M23 12-pin male connector, 0.5 m length
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 1/2 inch front clamp
- Flange type: Axial and radial register pin mounting for 4 mm register pin
- Shaft material: Stainless steel
- Housing and flange material: Aluminum
- Cable material: PVC
- Start up torque: > 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 9000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High reliability with MTTFD of 500 years according to EN ISO 13849-1
- 1024 pulses per revolution for precise measurement
- Incremental HTL / Push pull communication interface with 6 signal channels
- Fast initialization time under 5 ms
- Output frequency greater than 300 kHz
- Robust mechanical design with stainless steel shaft and aluminum housing
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection
- Wide operating temperature range from -20°C to +85°C
- High resistance to shocks (250 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption of ≤1 W contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBS60E-TFEQC1024 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position feedback.
