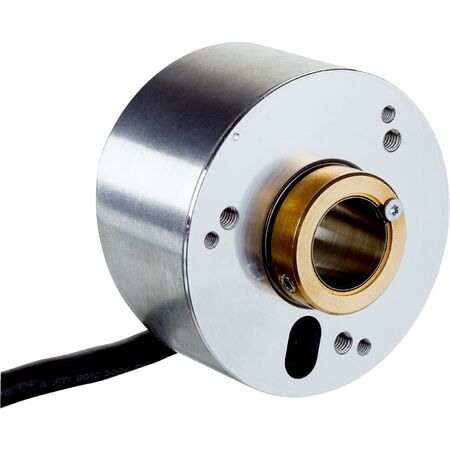

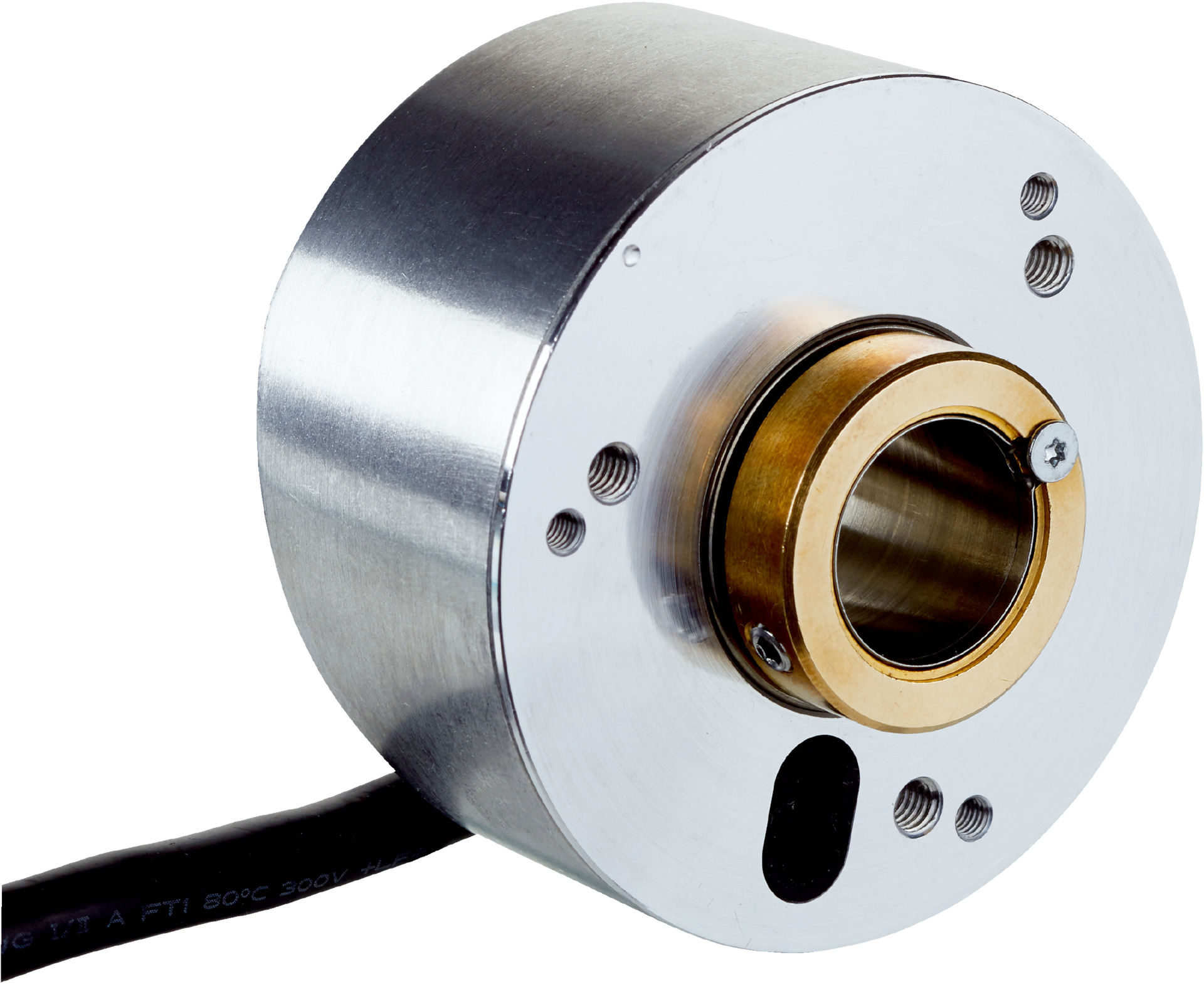

Incremental Rotary Encoder SICK DBS60E-THAJK0512 | 512 PPR | IP65 Protection | High Speed 9000 RPM | by SICK
The SICK DBS60E-THAJK0512 incremental rotary encoder delivers precise measurement with 512 pulses per revolution, making it ideal for industrial automation and motion control applications. Featuring a robust aluminum housing with IP65 protection and a high operating speed of up to 9,000 min⁻¹, this encoder ensures reliable performance in demanding environments. With reverse polarity and short-circuit protection, it’s built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 500 years (EN ISO 13849-1)
- Pulses per revolution: 512
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA without load
- Connection type: 8-wire cable, 0.5 m length
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Through hollow shaft with 15 mm diameter
- Flange: Aluminum with 3x M3, 3x M4 screws and axial register pin
- Shaft material: Stainless steel
- Housing material: Aluminum
- Cable material: PVC
- Start-up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- 512 pulses per revolution for precise measurement
- Incremental communication interface with TTL / RS-422
- 6-channel signal output
- High operating speed up to 9,000 min⁻¹
- Robust aluminum housing with IP65 protection
- Reverse polarity and short-circuit protection
- Through hollow shaft design with 15 mm diameter
- Low start-up torque of 0.5 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper mounting, wiring, and configuration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool feedback
- Conveyor and material handling systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-THAJK0512 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
