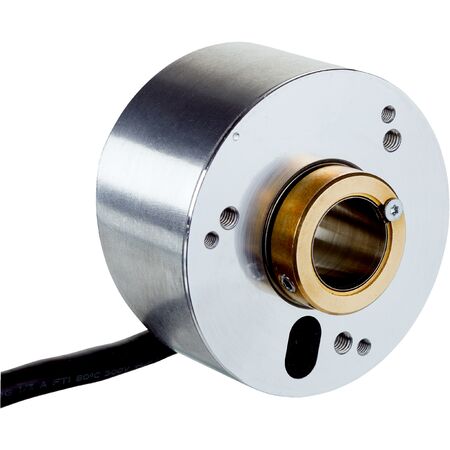

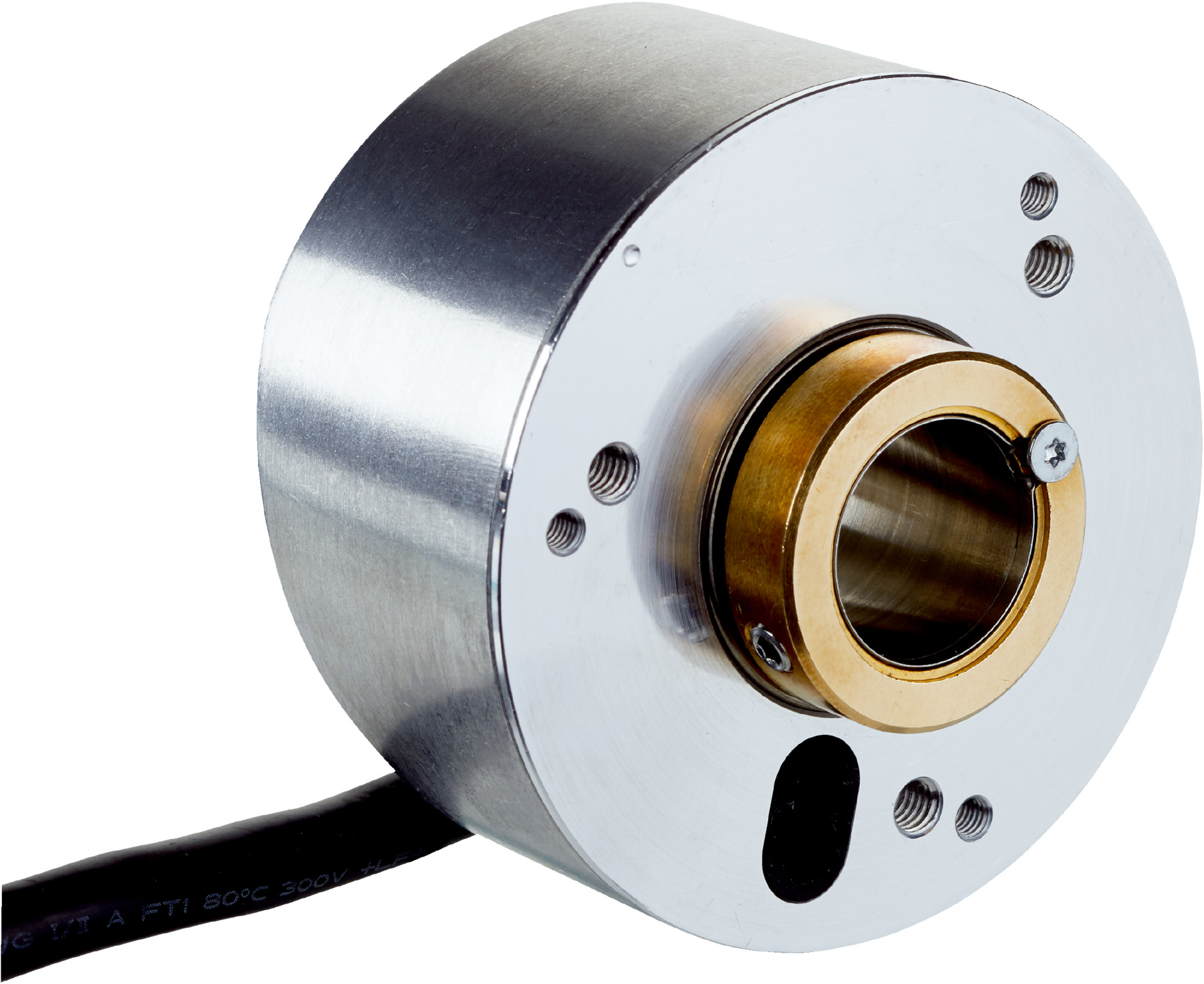

Incremental Rotary Encoder SICK DBS60E-TJFJK0060 | 60 Pulses/Rev | IP65 Rated | Stainless Steel Shaft | by SICK
The SICK DBS60E-TJFJK0060 incremental rotary encoder delivers precise rotational measurement with 60 pulses per revolution and a measuring step of ≤ 90°. Designed for industrial automation, it features a robust IP65 rated enclosure, stainless steel shaft, and aluminum housing, ensuring durability in harsh environments. Ideal for robotics, conveyor systems, and machine tool feedback, this encoder offers fast initialization and high mechanical durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 60
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6-channel
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, universal, 0.5 m
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 5/8″ Front clamp
- Flange type: Without stator coupling, flange with 3 x M3, 3 x M4, axial register pin mounting
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start up torque: + 0.5 Ncm (+20 °C)
- Operating torque: 0.4 Ncm (+20 °C)
- Permissible movement static: ± 0.3 mm (radial), ± 0.5 mm (axial)
- Permissible movement dynamic: ± 0.1 mm (radial), ± 0.2 mm (axial)
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 housing and shaft side (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 250 g, 3 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental communication interface with TTL/HTL signals
- 60 pulses per revolution with measuring step ≤ 90°
- High mechanical durability with stainless steel shaft and aluminum housing
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +100°C
- High resistance to shocks (250 g) and vibration (30 g)
- Low power consumption ≤ 0.5 W without load
- Fast initialization time < 5 ms
- Maximum operating speed up to 9,000 min⁻¹
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Rotational position and speed measurement
- Robotics and conveyor systems
- Machine tool feedback
- Packaging and material handling equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-TJFJK0060 incremental encoder is available for immediate purchase, ideal for industrial automation and precise rotational measurement applications.
