Incremental Rotary Encoder SICK DFS20A | 1024 Pulses/Rev | IP65/IP67 Rated | by SICK

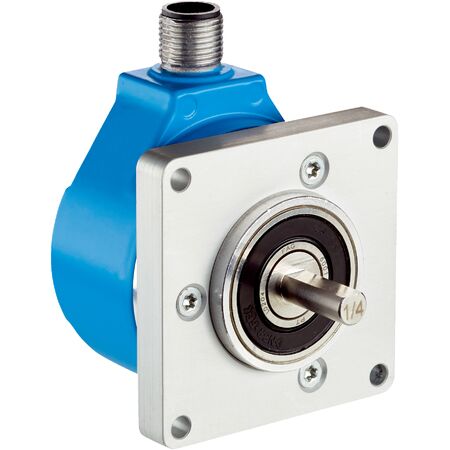

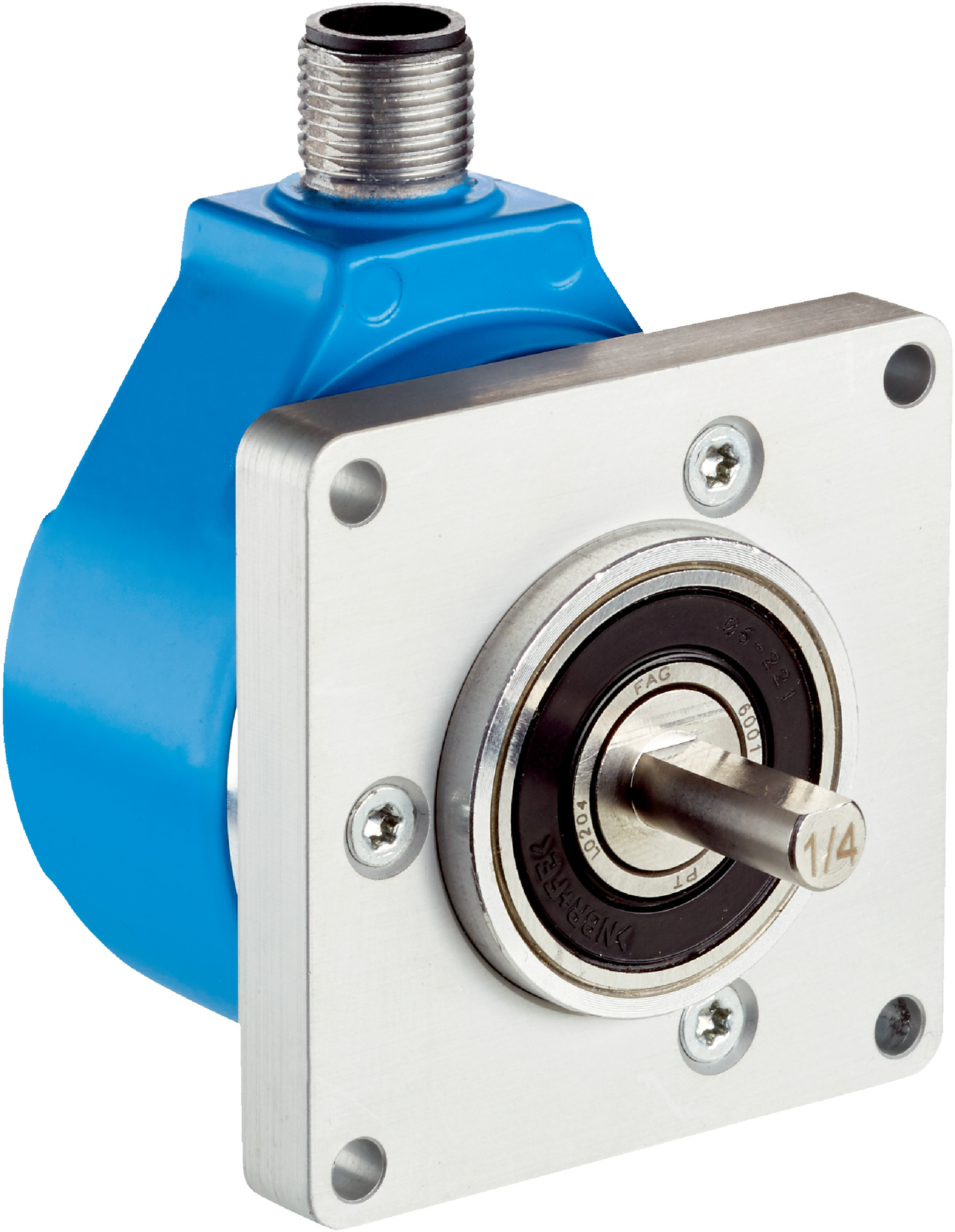

The SICK DFS20A-A2BAC001024 incremental rotary encoder delivers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and motion control applications. Its robust solid shaft design features a stainless steel shaft and aluminum housing, ensuring durability and protection against dust and water with IP65/IP67 ratings. Perfect for robotics, conveyor systems, and machine tool positioning, this encoder is built for reliability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push-pull, 6-channel
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 8 to 30 V
- Mechanical design: Solid shaft, square flange
- Shaft diameter: 3/8 inch with flat
- Shaft length: 16 mm
- Shaft material: Stainless steel 1.4305
- Flange and housing material: Aluminum
- Start-up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: up to 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust solid shaft design with stainless steel shaft and aluminum housing
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +85°C
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Fast initialization time of 40 ms
- 6-channel incremental HTL / Push-pull communication interface
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial electrical standards to ensure proper connection and safety compliance.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption of 0.7 W reduces energy usage in industrial applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS20A-A2BAC001024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
