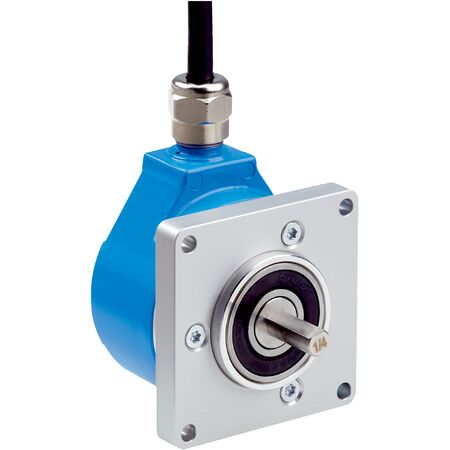

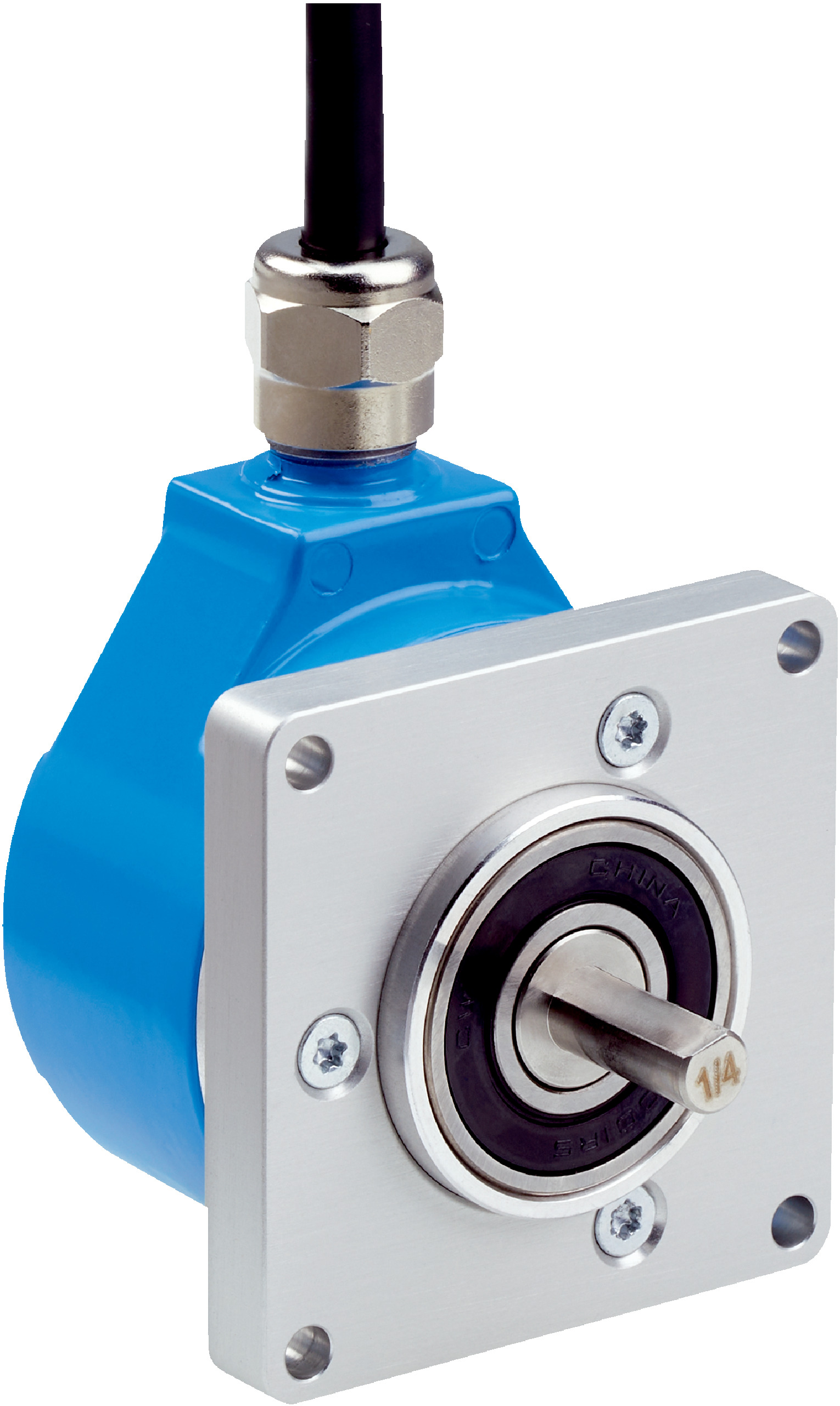

Incremental Rotary Encoder SICK DFS20A | 1024 PPR | IP65/IP67 Rated | by SICK
The SICK DFS20A incremental rotary encoder delivers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and motion control applications. Its robust solid shaft design features a stainless steel shaft and aluminum housing, ensuring durability and protection against dust and water with IP65/IP67 ratings. Perfect for robotics, conveyor systems, and machine tool positioning, this encoder is built for reliability and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Supply voltage: 8 to 30 V
- Connection type: 9-wire cable, radial, 10 m length
- Mechanical design: Solid shaft with square flange
- Shaft diameter: 6.35 mm (1/4 inch) with flat
- Shaft length: 16 mm
- Materials: Stainless steel shaft (1.4305), aluminum flange and housing
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust solid shaft design with stainless steel shaft and aluminum housing
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity and short-circuit protection
- Fast initialization time of 40 ms
- Operating temperature range from -30°C to +85°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- 6-channel incremental TTL/RS-422 communication interface
- 0-set function via hardware pin for easy zeroing
