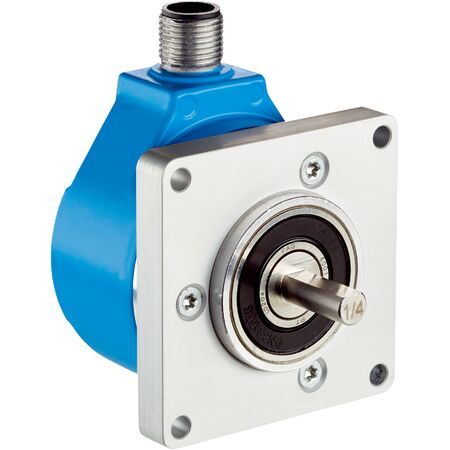

Incremental Rotary Encoder SICK DFS20A-A1P1C065536 | 65,536 Pulses/Rev | ±0.002° Accuracy | IP65/IP67 Rated | by SICK
The SICK DFS20A-A1P1C065536 incremental rotary encoder delivers high-resolution feedback with 65,536 pulses per revolution and an impressive measuring step accuracy of ±0.002°. Designed for industrial automation and robotics, it features a robust mechanical design with IP65/IP67 ratings for protection against dust and water, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step: ±90°, electric/pulses per revolution
- Measuring step deviation: ±0.002° pulses > 10,000
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.75 to 30 V
- Mechanical design: Solid shaft, square flange
- Shaft diameter: 6.35 mm (1/4 inch) with flat
- Shaft length: 16 mm
- Shaft material: Stainless steel 1.4305
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: up to 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: –30 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 100 g, 11 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 65,536 pulses per revolution
- Measuring step accuracy of ±0.002° for pulses > 10,000
- Robust mechanical design with solid shaft and square flange
- IP65 rated shaft side and IP67 rated housing side for protection
- Operating temperature range from –30 °C to +85 °C
- Short-circuit and reverse polarity protection
- Programmable and configurable 6-channel incremental output
- Low power consumption of 0.7 W without load
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration according to industrial standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Manufacturing equipment requiring high-resolution feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS20A-A1P1C065536 incremental encoder is available for immediate purchase, ideal for high-precision industrial automation and control applications.
