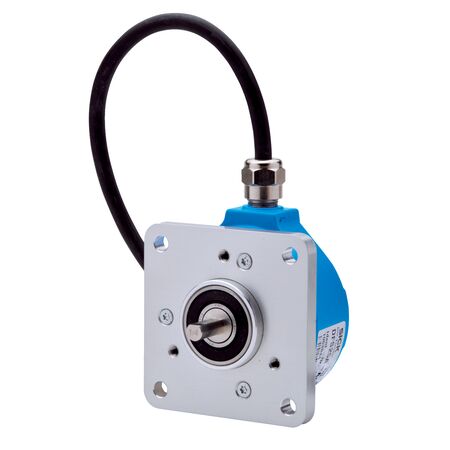

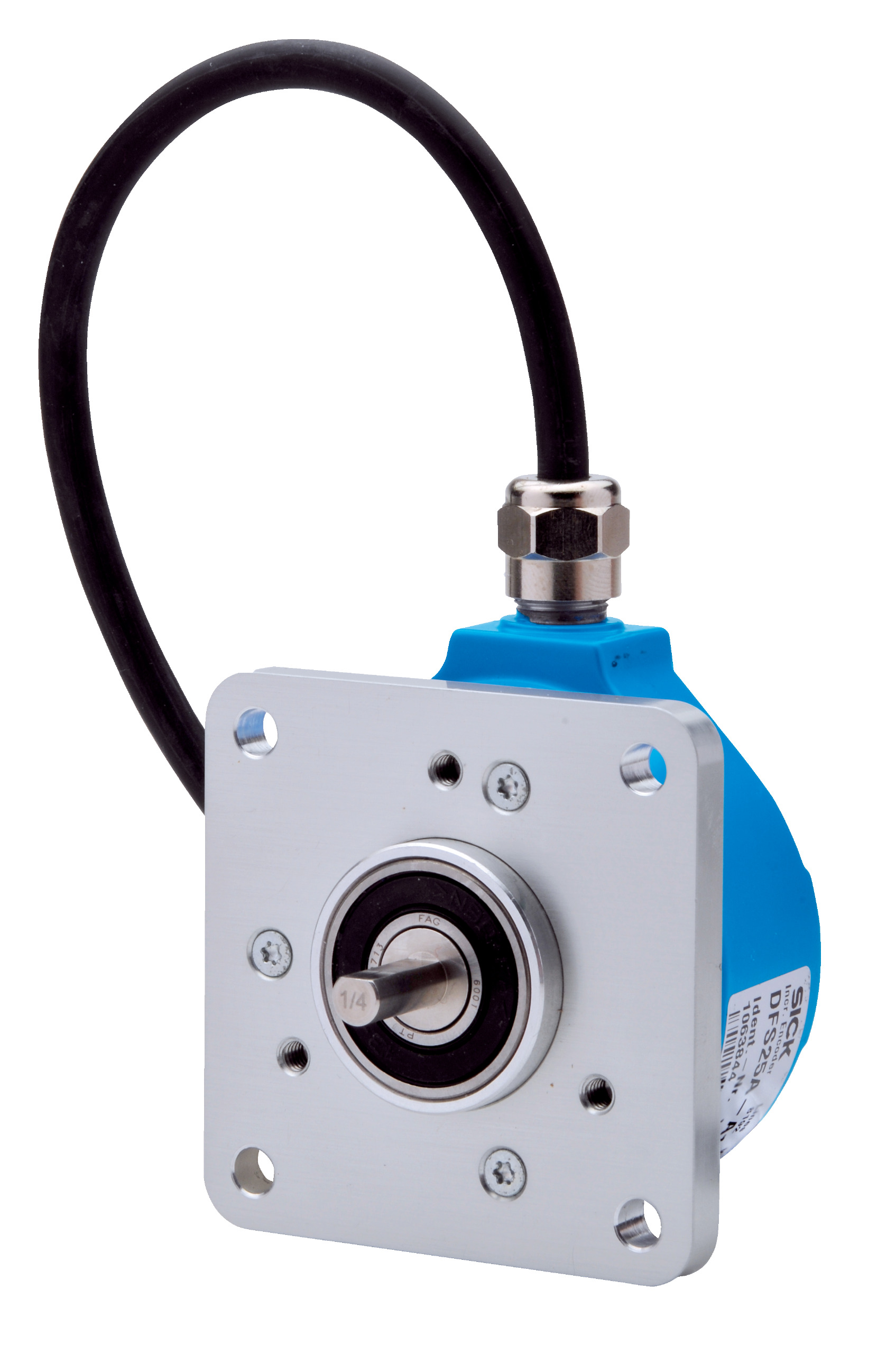

Incremental Rotary Encoder SICK DFS25A | 1500 PPR | IP65/IP67 Rated | by SICK
The SICK DFS25A-A2AAL001500 incremental rotary encoder delivers high precision with 1500 pulses per revolution and a robust mechanical design. Ideal for industrial automation and robotics, it features an incremental communication interface and a wide operating temperature range of -30 °C to +85 °C. With IP65 and IP67 ratings, this encoder ensures reliable performance in harsh environments, making it perfect for machine tool positioning and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,500
- Measuring step deviation: ±0.008° pulses 100 ... 10,000
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Output frequency: 820 kHz
- Load current: 30 mA
- Operating current: 50 mA (without load)
- Supply voltage: 4.5 ... 5.5 V
- Mechanical design: Solid shaft, square flange
- Shaft diameter: 3/8" with flat
- Shaft length: 19 mm
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial), 40 N (axial)
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: –30 °C to +85 °C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.4 kg
Key Features
- High precision with ±0.03° error limits
- Incremental communication interface with TTL / RS-422
- 6-channel signal output with 0-set function via hardware pin
- Robust mechanical design with solid shaft and square flange
- IP65 rated on shaft side and IP67 on housing side for protection
- Wide operating temperature range from –30 °C to +85 °C
- Reverse polarity and short-circuit protection
- Long bearing lifetime of 3.6 x 10^9 revolutions
- Low operating torque of 0.3 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-A2AAL001500 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
