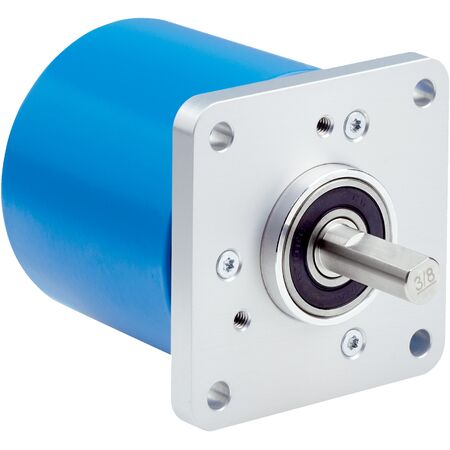

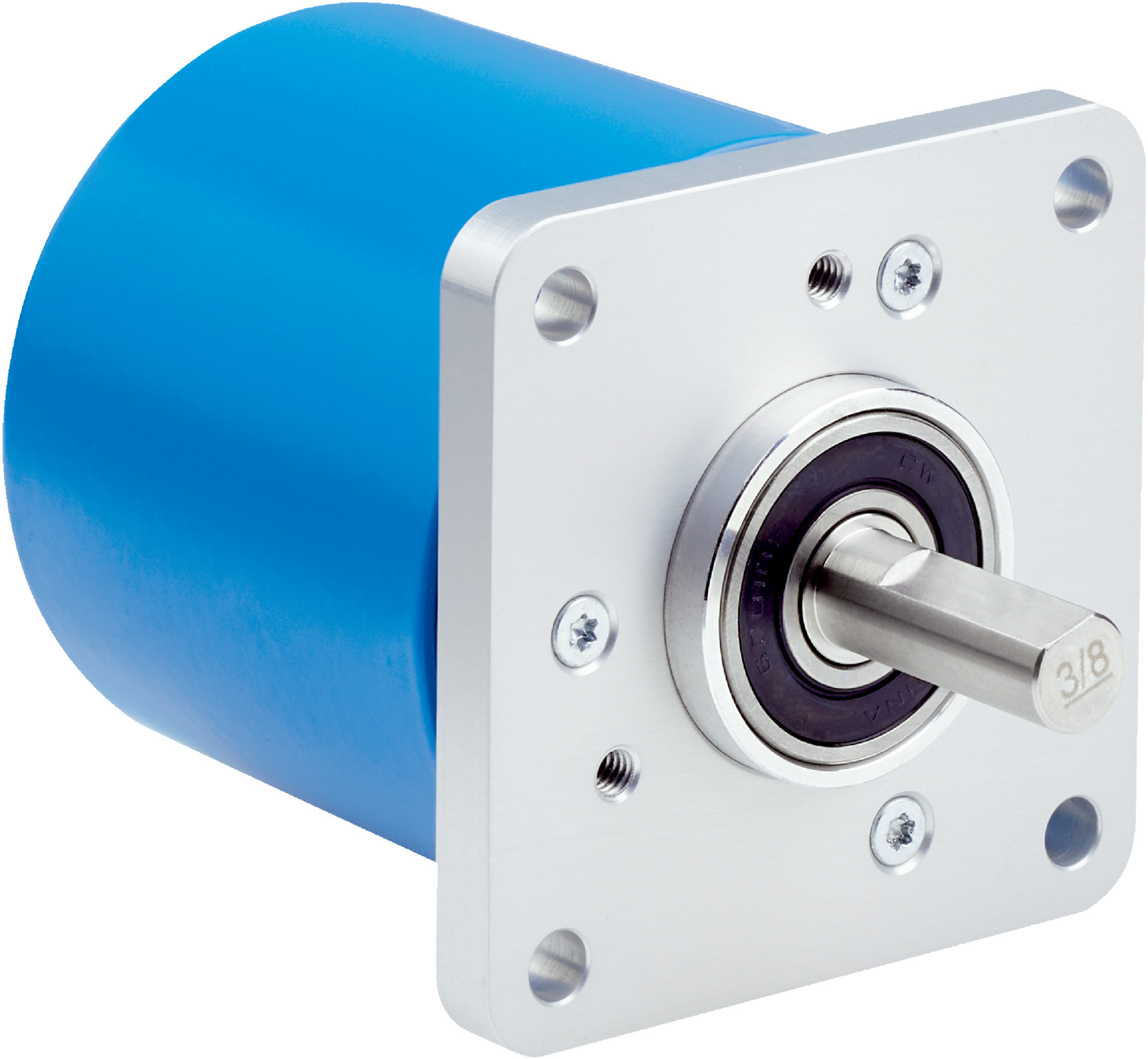

Incremental Rotary Encoder SICK DFS25A | 600 PPR | High Precision ±0.008° | IP65/IP67 Rated | by SICK
The SICK DFS25A-A2AA3000600 incremental rotary encoder features 600 pulses per revolution and a high precision measuring step deviation of ±0.008°. Designed for industrial automation and motion control, it offers robust protection with IP65 and IP67 ratings, ensuring reliable performance in harsh environments. Ideal for applications in robotics, conveyor systems, and machine tool positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 330 years (EN ISO 13849-1)
- Pulses per revolution: 600
- Measuring step: ±90°, electric/pulses per revolution
- Measuring step deviation: ±0.008° pulses 100 ... 10,000
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Operating current: 50 mA (without load)
- Connection type: Male connector, MS, 7-pin, axial
- Supply voltage: 4.5 ... 5.5 V
- Reference signal: 1, position 180°, electrically gated
- Code sequence: Counterclockwise
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Solid shaft, square flange
- Shaft diameter: 3/8 inch with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel 1.4305
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.4 kg
Key Features
- Incremental encoder with 600 pulses per revolution
- High precision measuring step deviation of ±0.008°
- Robust mechanical design with solid shaft and square flange
- IP65 rated on shaft side and IP67 on housing side for protection
- Operating temperature range from –30 °C to +85 °C
- Reverse polarity and short-circuit protection
- Low operating torque of 0.3 Ncm
- High bearing lifetime of 3.6 x 10^9 revolutions
- Communication interface TTL / RS-422 with 6 signal channels
- 0-set function via hardware pin for easy initialization
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-A2AA3000600 incremental encoder is available for immediate purchase, ideal for industrial automation, safety, and motion control applications.
