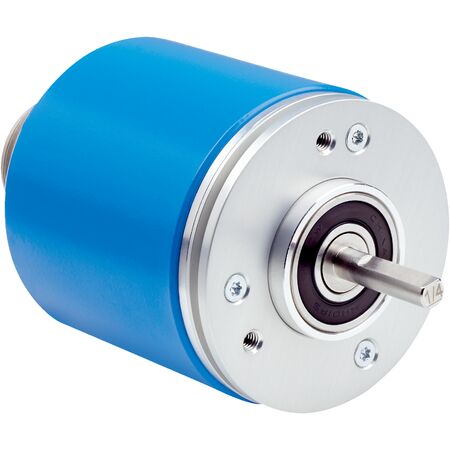

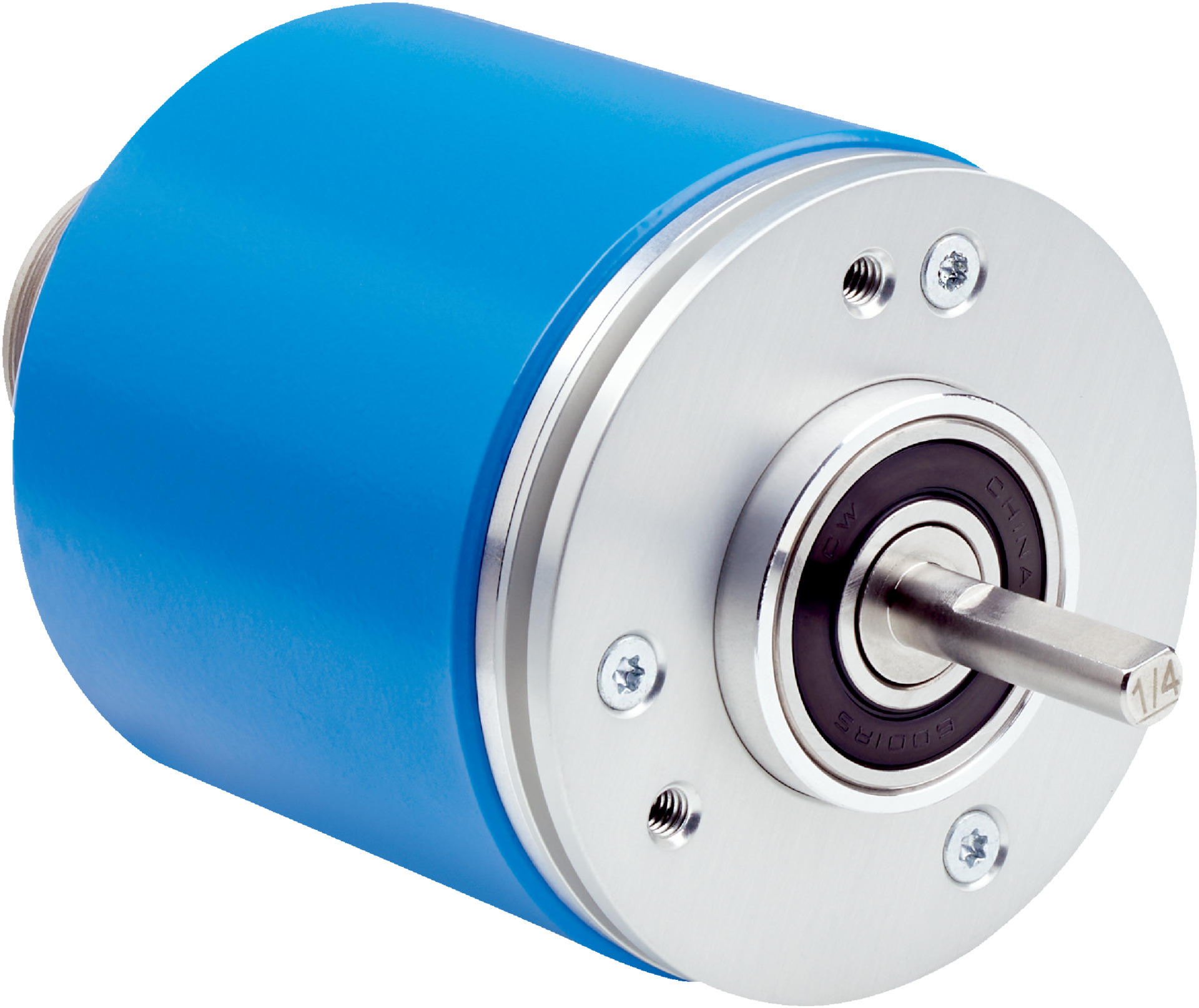

Incremental Rotary Encoder SICK DFS25A | 8192 Pulses/Rev | IP65/IP67 Rated | by SICK
The SICK DFS25A-N4C2C008192 incremental rotary encoder delivers high precision with 8,192 pulses per revolution, making it ideal for industrial automation and motion control applications. Its robust design features a stainless steel shaft and aluminum housing, ensuring durability in demanding environments. With an operating temperature range of -30°C to +85°C and IP65/IP67 ratings for dust and water protection, this encoder is built for reliability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 8,192
- Measuring step deviation: ±0.008° pulses 100 ... 10,000
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6-channel
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 8 ... 30 V
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel 1.4305
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial), 40 N (axial)
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of the rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 8,192 pulses per revolution
- Robust solid shaft design with stainless steel shaft and aluminum housing
- IP65 rated on shaft side and IP67 on housing side for dust and water protection
- Operating temperature range from -30°C to +85°C
- Reverse polarity and short-circuit protection
- Low power consumption of 0.7 W without load
- High operating speed up to 9,000 min⁻¹
- 6-channel incremental communication interface with TTL / RS-422
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Precision measurement and positioning
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-N4C2C008192 incremental encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
