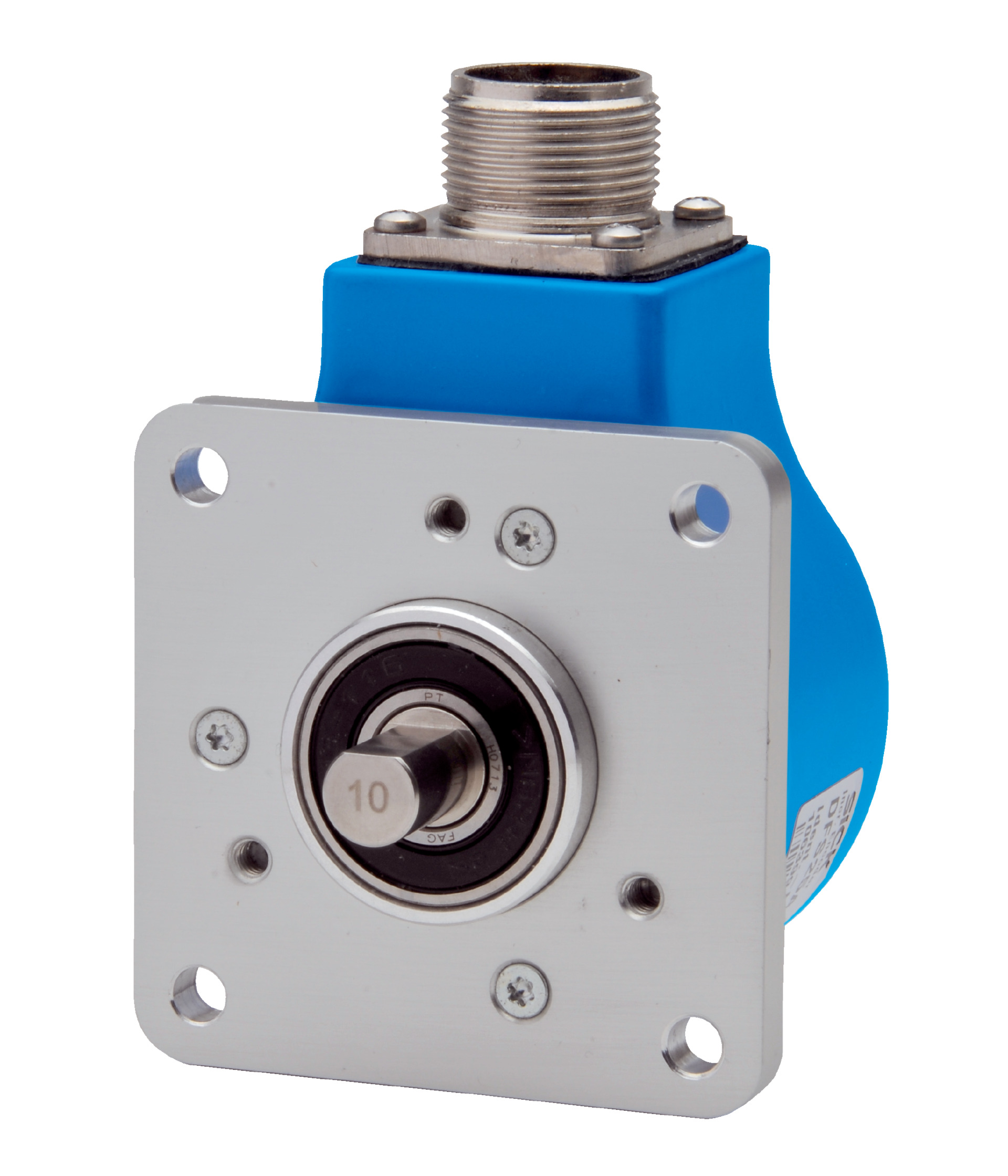

Incremental Rotary Encoder SICK DFS25A-A2BAE001000 | 1000 Pulses/Rev | IP65/IP67 Rated | by SICK
The SICK DFS25A-A2BAE001000 incremental rotary encoder delivers high precision with 1,000 pulses per revolution, making it ideal for industrial automation and motion control applications. With robust IP65/IP67 ratings for dust and water protection, it ensures reliable performance in challenging environments. Designed for easy integration, this encoder is perfect for robotics, conveyor systems, and machine tool feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,000
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Supply voltage: 8 to 30 V
- Connection type: Male connector, MS, 7-pin, radial
- Shaft diameter: 3/8 inch with flat
- Shaft length: 19 mm
- Operating speed: up to 9,000 min⁻¹
- Operating temperature range: -30°C to +85°C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 1,000 pulses per revolution
- Robust solid shaft with stainless steel material
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +85°C
- Low power consumption of 0.7 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- 6-channel incremental communication interface with HTL / Push pull output
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems
- Machine tool feedback
- Position and speed measurement in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-A2BAE001000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
