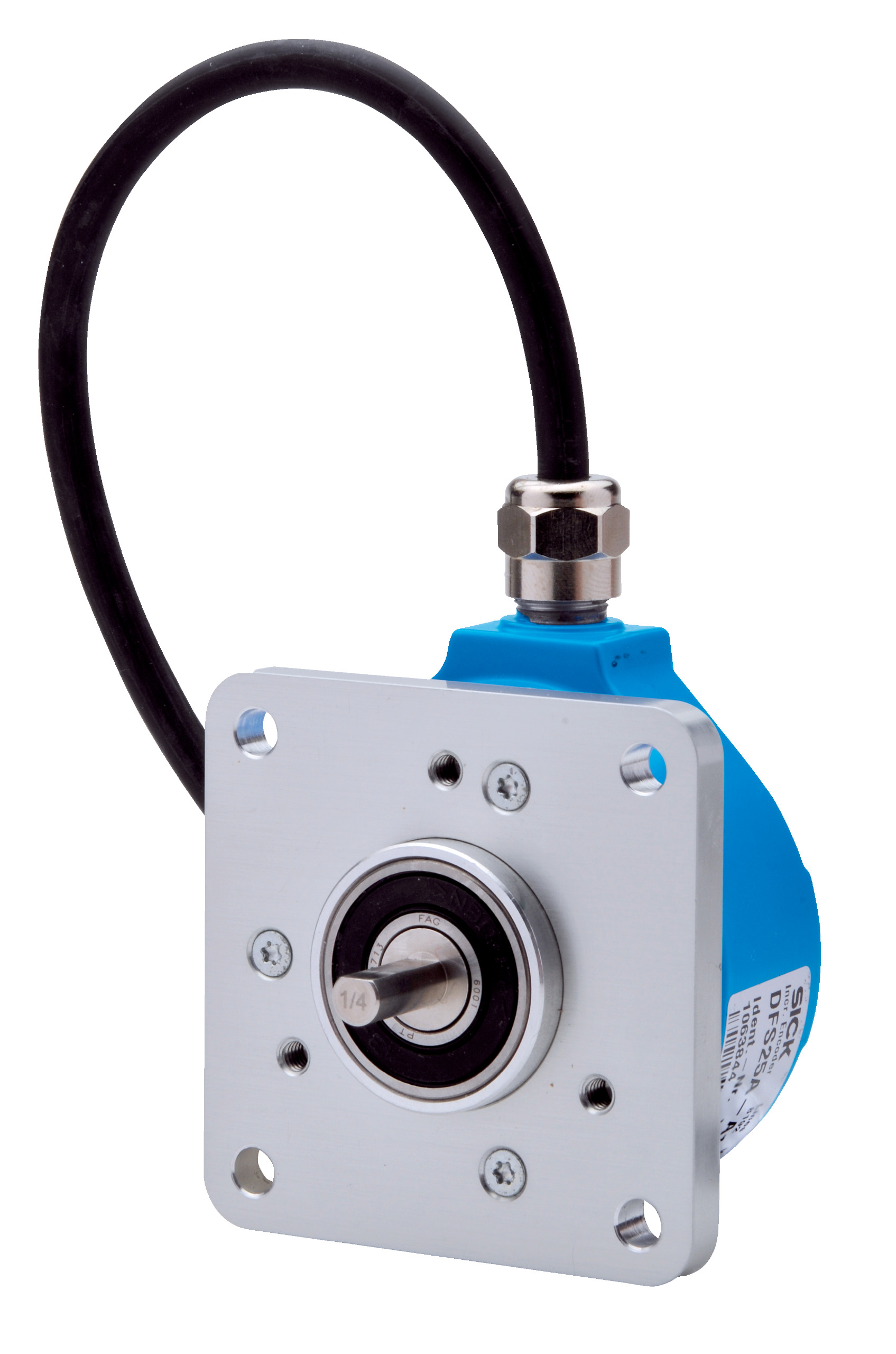

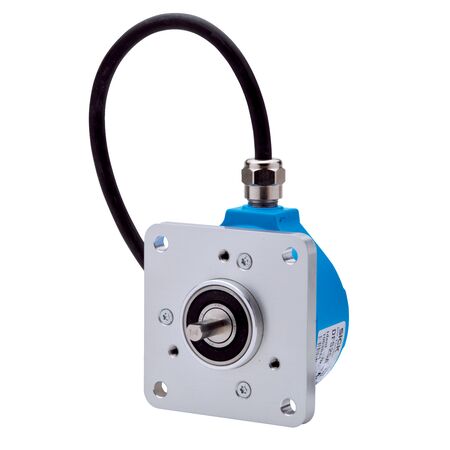

Incremental Rotary Encoder SICK DFS25A-A4D1L005000 | 5000 Pulses/Rev | IP65/IP67 Rated | by SICK
The SICK DFS25A-A4D1L005000 incremental rotary encoder delivers high precision with 5,000 pulses per revolution, making it ideal for industrial automation and robotics applications. Its robust mechanical design features a solid shaft and square flange, ensuring durability in harsh environments. With an IP65/IP67 rating, it offers excellent protection against dust and water, making it perfect for demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 5,000
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental, Open Collector
- Number of signal channels: 6
- Output frequency: 150 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Cable, 9-wire, radial, 1.5 m
- Supply voltage: 8 to 30 V
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Mechanical design: Solid shaft, square flange
- Housing material: Aluminum
- Operating temperature range: -30°C to +85°C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 5,000 pulses per revolution
- Robust mechanical design with solid shaft and square flange
- IP65 rated on shaft side and IP67 on housing side for harsh environments
- Reverse polarity and short-circuit protection
- Low power consumption of 0.7 W without load
- Operating temperature range from -30°C to +85°C
- High resistance to shocks (100 g) and vibration (30 g)
- 0-set function via hardware pin for easy initialization
- Clockwise code sequence with 6 signal channels
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-A4D1L005000 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
