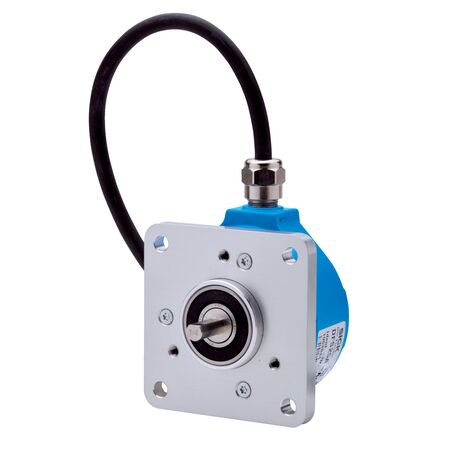

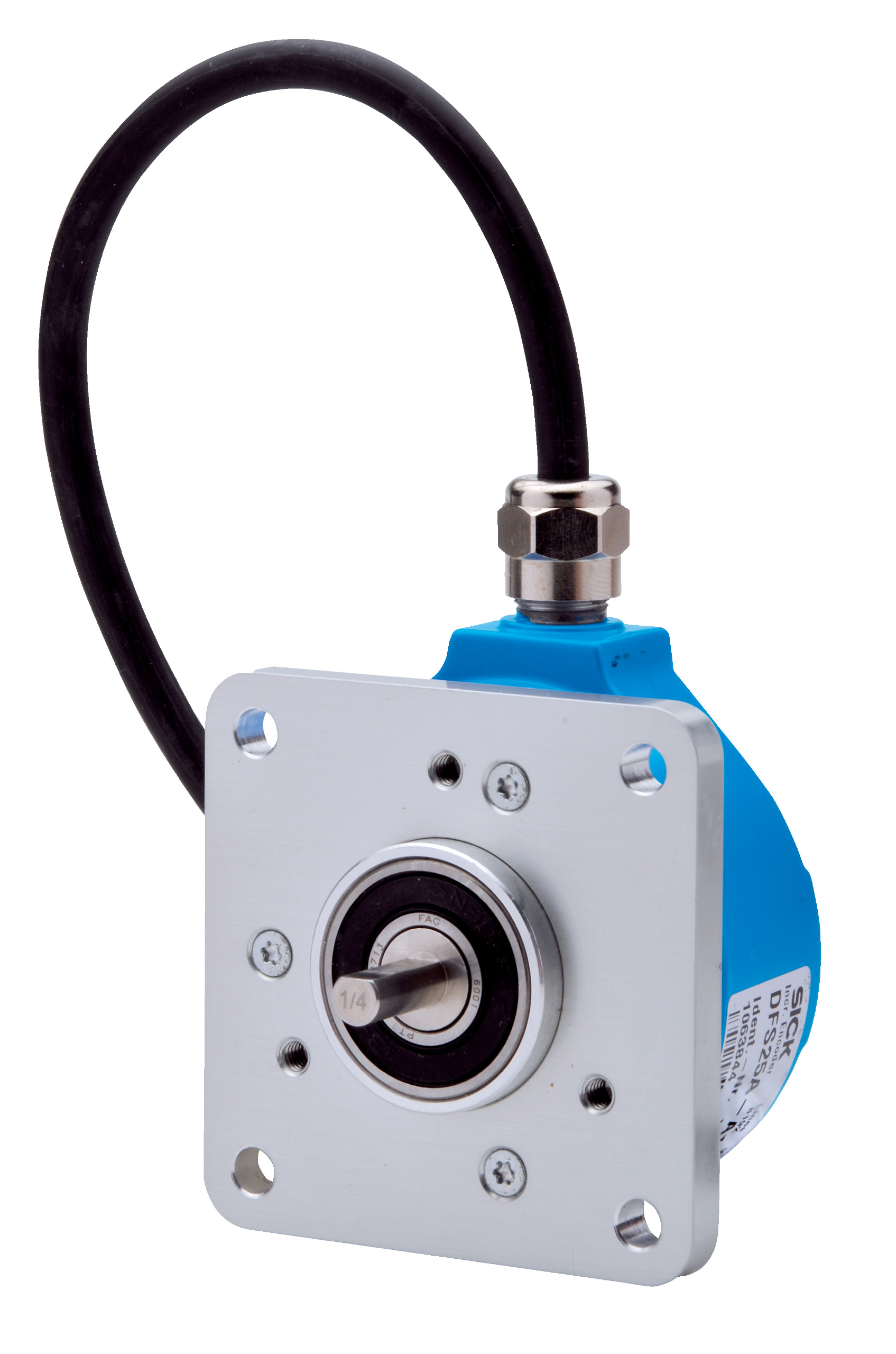

Incremental Rotary Encoder SICK DFS25A | ±0.03° Precision | IP65/IP67 Protection | by SICK
The SICK DFS25A-A4B1N000100 incremental rotary encoder delivers high precision with ±0.03° error limits, making it ideal for industrial automation and control systems. With a robust mechanical design and a wide operating temperature range of –30 °C to +85 °C, this encoder ensures reliable performance in demanding environments. Its incremental communication interface and 6-channel signal output provide versatile applications in robotics, conveyor systems, and machinery feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 330 years (EN ISO 13849-1)
- Pulses per revolution: 100
- Measuring step: ±90°, electric/pulses per revolution
- Measuring step deviation: ±0.008° pulses 100 ... 10,000
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Cable, 9-wire, radial, 5 m
- Supply voltage: 8 ... 30 V
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel 1.4305
- Flange and housing material: Aluminum
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 100 g, 11 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High precision with ±0.03° error limits
- Incremental communication interface with HTL / Push pull
- 6-channel signal output with 0-set function via hardware pin
- Robust mechanical design with solid shaft and square flange
- Wide operating temperature range from –30 °C to +85 °C
- Protection rating IP65 on shaft side and IP67 on housing side
- Reverse polarity and short-circuit protection
- Long bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical wiring standards to ensure proper connection and safety.
Applications
- Industrial automation and control systems
- Rotational position and speed measurement
- Robotics and machinery feedback
- Conveyor systems and material handling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 0.7 W reduces energy usage
- Durable materials and long service life minimize waste
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS25A-A4B1N000100 incremental encoder is available for immediate purchase, ideal for industrial automation and precise rotational measurement applications.
