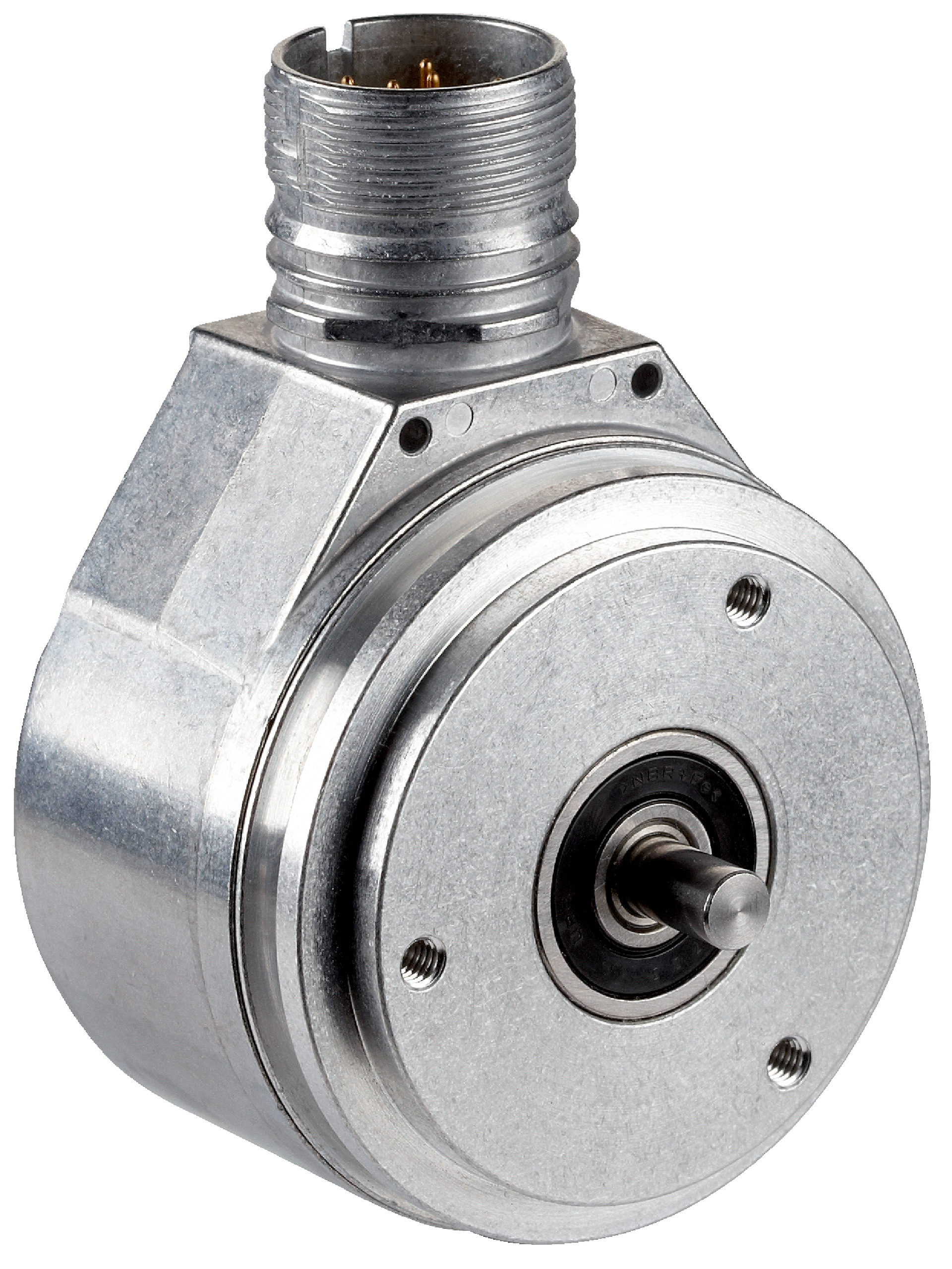

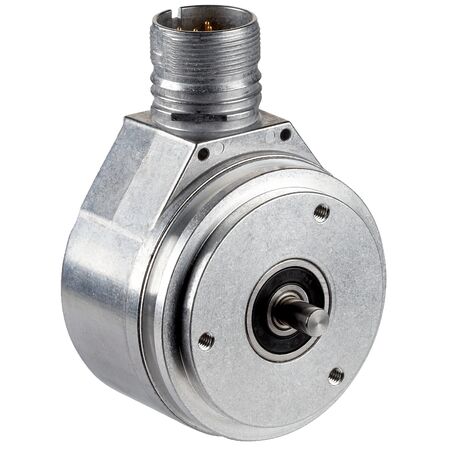

Incremental Rotary Encoder SICK DFS60B-S1AA00400 | 400 Pulses/Rev | IP67 & IP65 Rated | by SICK
The SICK DFS60B-S1AA00400 incremental rotary encoder delivers high precision with 400 pulses per revolution, making it ideal for industrial automation and robotics. Built with a solid stainless steel shaft and robust aluminum housing, it withstands harsh environments with IP67 and IP65 ratings. Perfect for applications requiring accurate position and speed measurement, this encoder ensures reliable performance in conveyor systems and machine tool control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Rotary Encoder SICK DFS60B-S1AA00400 | 400 Pulses/Rev | IP67 & IP65 Rated | by SICK
Brand: SICK
SKU: 1037194
Alternatively Known As: Incremental rotary encoder, solid shaft encoder, industrial position sensor, SICK DFS60 encoder
Technical Specifications
- Pulses per revolution: 400
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 400 pulses per revolution
- Solid shaft with stainless steel material and servo flange
- Robust aluminum die cast housing and flange
- IP67 rated housing side and IP65 shaft side for harsh environments
- Short-circuit protected outputs
- Operating temperature range from -40°C to +100°C
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and servo motor feedback
- Conveyor systems and material handling
- Machine tool control and monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low operating current of 40 mA
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-S1AA00400 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
