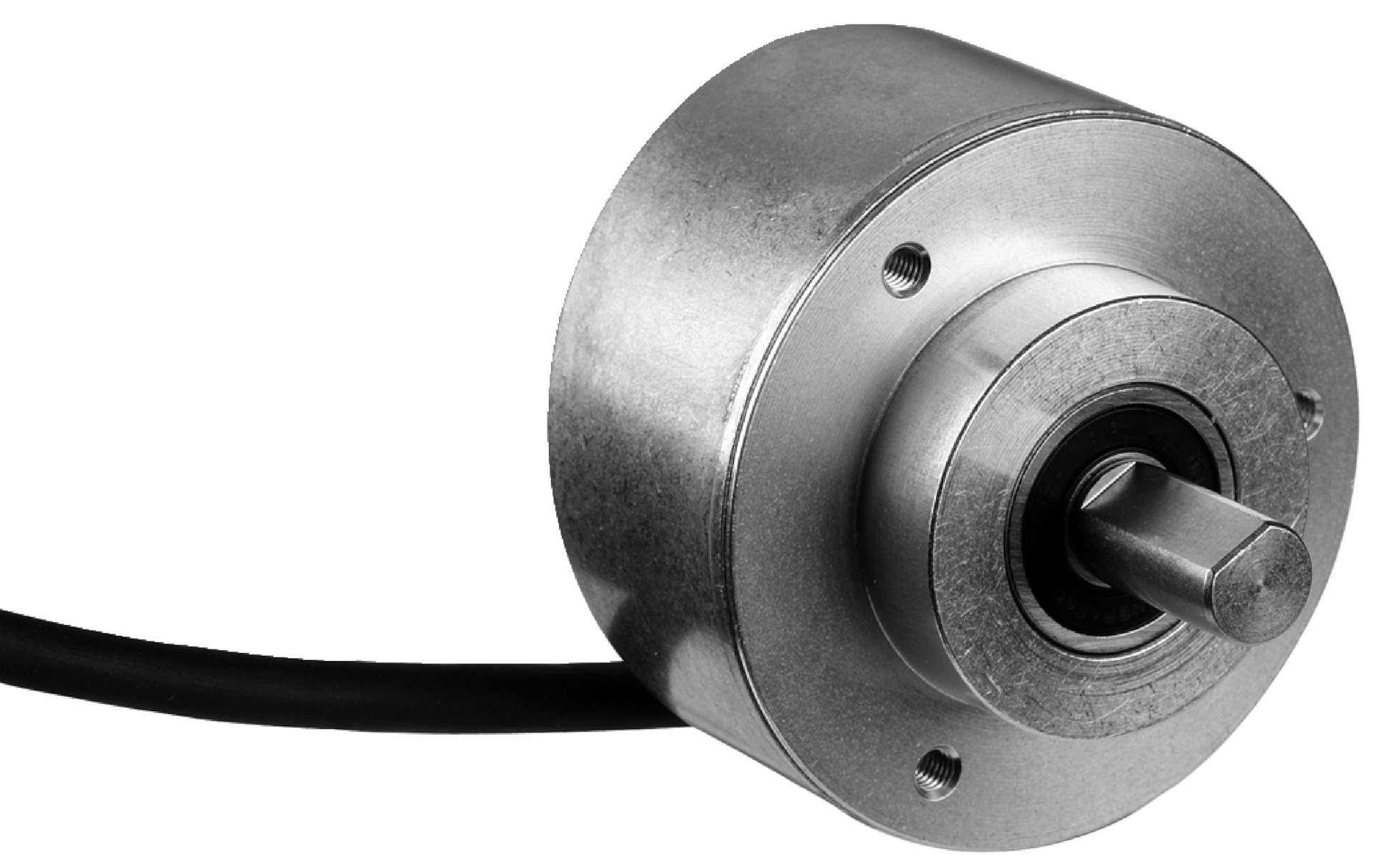

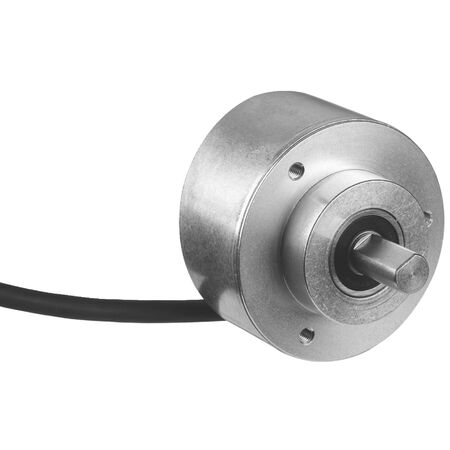

Incremental Rotary Encoder SICK DFS60B-S4EM03000 | 3000 Pulses/Rev | IP67 Rated | by SICK
The SICK DFS60B-S4EM03000 incremental rotary encoder delivers high precision with 3000 pulses per revolution, making it ideal for industrial automation and motion control applications. Its robust aluminum die cast housing and stainless steel shaft ensure durability, while the IP67 rating provides protection against dust and water. Designed for reliable performance in harsh environments, this encoder is perfect for robotics, conveyor systems, and machine tool positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 3,000
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental HTL / Push pull, 6-channel
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: 8-wire cable, 5 m length
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start-up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 housing side and cable connection, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 70 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 58mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 3,000 pulses per revolution
- Solid shaft with face mount flange design
- Robust aluminum die cast housing and stainless steel shaft
- IP67 rated housing side and cable connection, IP65 shaft side
- Reverse polarity and short-circuit protection
- Operating temperature range from -40°C to +100°C
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
- 6-channel incremental HTL / Push pull communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤ 0.5 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-S4EM03000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
