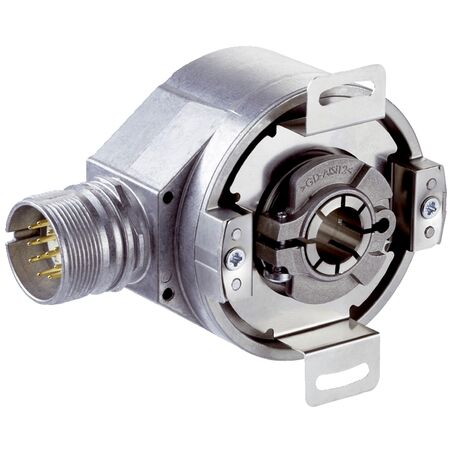

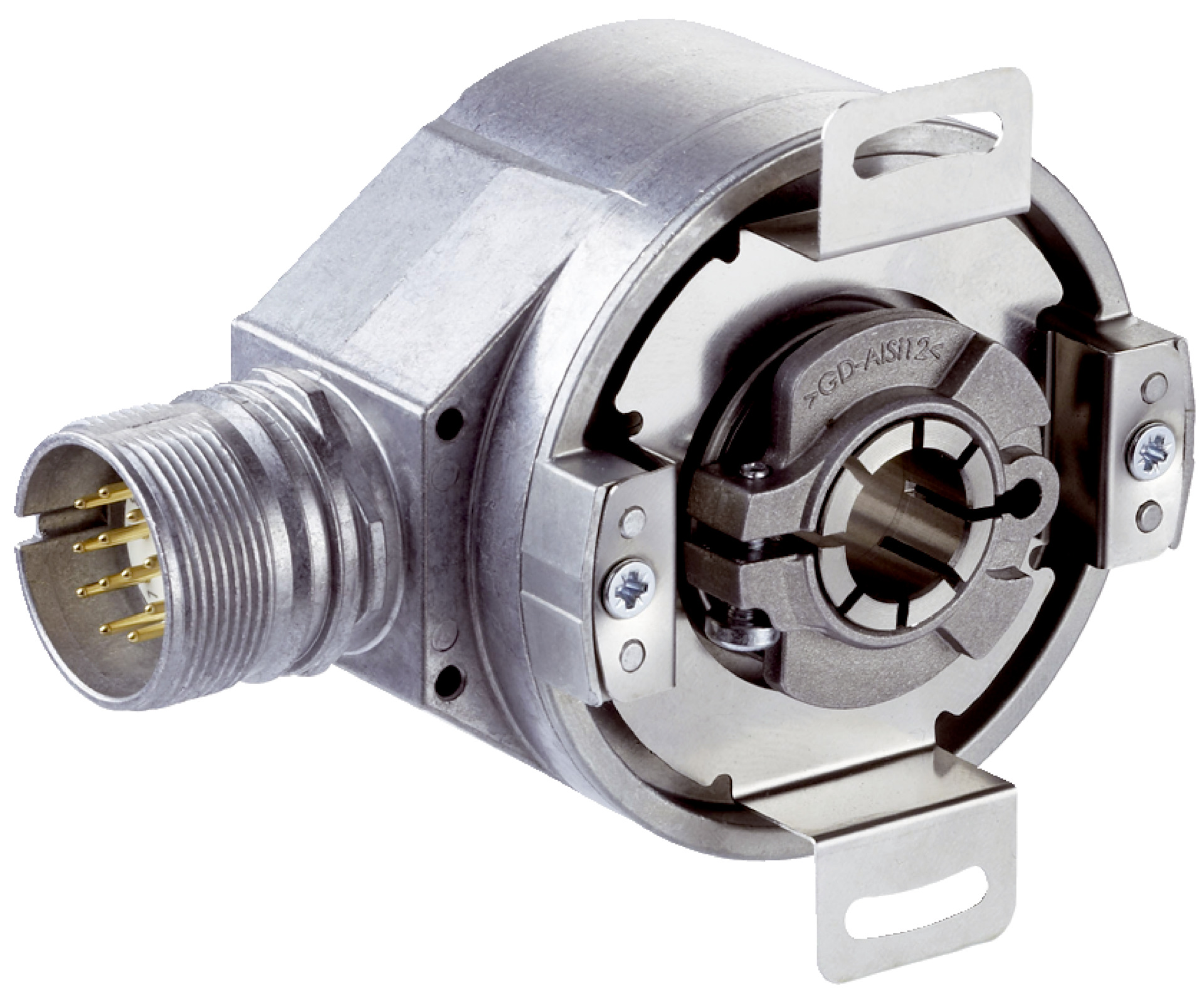

Incremental Rotary Encoder SICK DFS60E-THEA02048 | 2048 Pulses/Rev | IP65 Protection | Through Hollow Shaft Design | by SICK
The SICK DFS60E-THEA02048 incremental rotary encoder delivers high precision with 2048 pulses per revolution, making it ideal for industrial automation and motion control applications. Its robust aluminum die cast housing features IP65 protection, ensuring durability in harsh environments. With a low operating torque of 0.6 Ncm and reverse polarity protection, this encoder is designed for reliable performance in robotics, conveyor systems, and machine tool feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Rotary Encoder SICK DFS60E-THEA02048 | 2048 Pulses/Rev | IP65 Protection | Through Hollow Shaft Design | by SICK
Brand: SICK
SKU: 1056459
Alternatively Known As: Incremental rotary encoder, Through hollow shaft encoder, Industrial encoder, SICK DFS60 encoder
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.15°
- Error limits: ±0.3°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 15 mm (front clamp)
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.8 Ncm (+20 °C)
- Operating torque: 0.6 Ncm (+20 °C)
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: 0 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 50 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 48mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Robust aluminum die cast housing with IP65 protection
- Through hollow shaft design with 15 mm stainless steel shaft
- Low operating torque of 0.6 Ncm
- Reverse polarity and short-circuit protection
- Operating temperature range from 0 °C to +85 °C
- High resistance to shock (50 g) and vibration (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool feedback and positioning
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 0.5 W reduces energy usage
- Durable design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60E-THEA02048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
