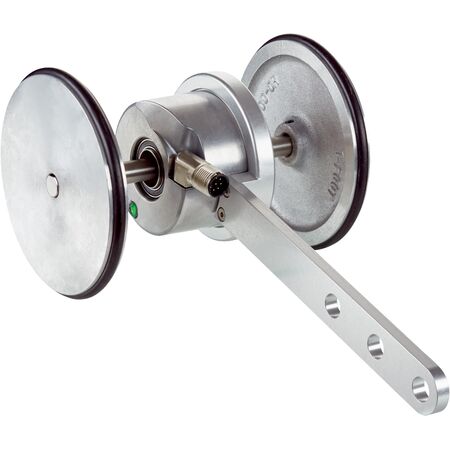

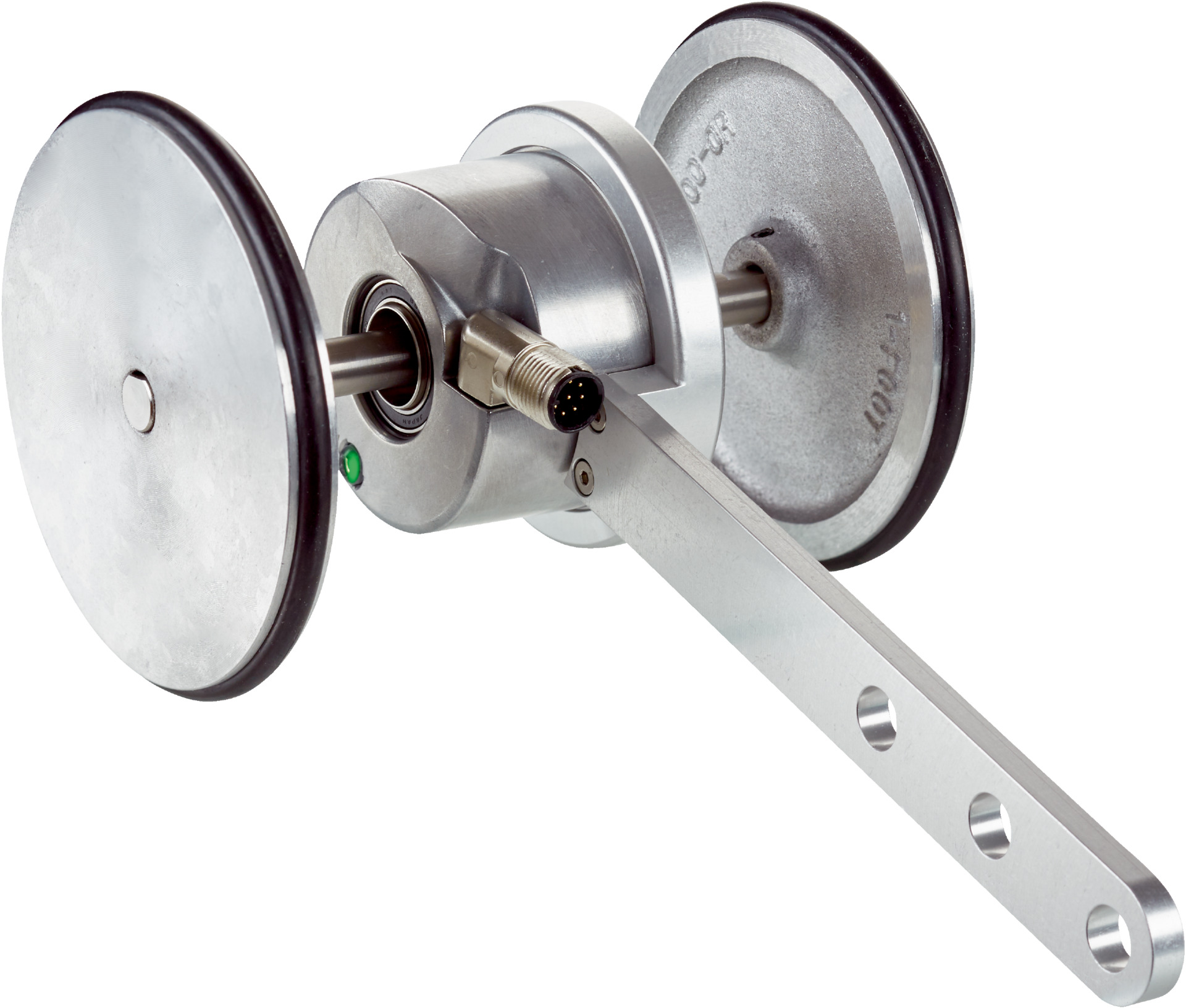

Incremental Rotary Encoder SICK DUV60E-32KCWADA | IP65 Rated | 1 to 1500 Pulses/Rev | Robust Aluminum Housing | by SICK
The SICK DUV60E-32KCWADA incremental rotary encoder is designed for industrial automation, offering adjustable pulses per revolution from 1 to 1500 and an IP65 rated enclosure for dust and water protection. With a robust aluminum housing and stainless steel shaft, it ensures high reliability and low power consumption, making it ideal for precise measurement of rotational position and speed in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 1500
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data: DIP switch selectable output
- Operating power consumption (no load): 120 mA
- Connection type: Male connector, M12, 8-pin
- Output voltage and direction of rotation supported
- Power consumption max without load: ≤ 1.25 W
- Supply voltage: 4.75 V to 30 V
- Load current max: ≤ 30 mA per channel
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 300 mm
- Materials: Shaft stainless steel, flange aluminum, housing aluminum, cable PVC
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Maximum travel/deflection of spring arm: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature range: -30°C to +70°C
- Storage temperature range: -40°C to +75°C
- Shock resistance: 100 g
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 1500
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- Measuring wheel circumference of 300 mm with O-ring NBR70 surface
- Maximum output frequency of 60 kHz
- Low power consumption with max 1.25 W without load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical wiring standards to ensure proper connection and safety compliance.
Applications
- Industrial automation for precise measurement of rotational position and speed
- Conveyor systems for tracking movement and speed
- Machine tool positioning and control
- Material handling and packaging machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-32KCWADA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
