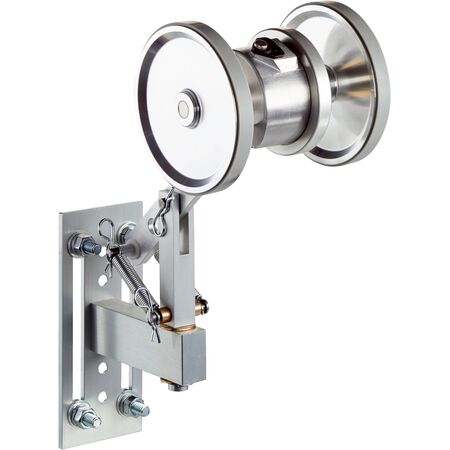

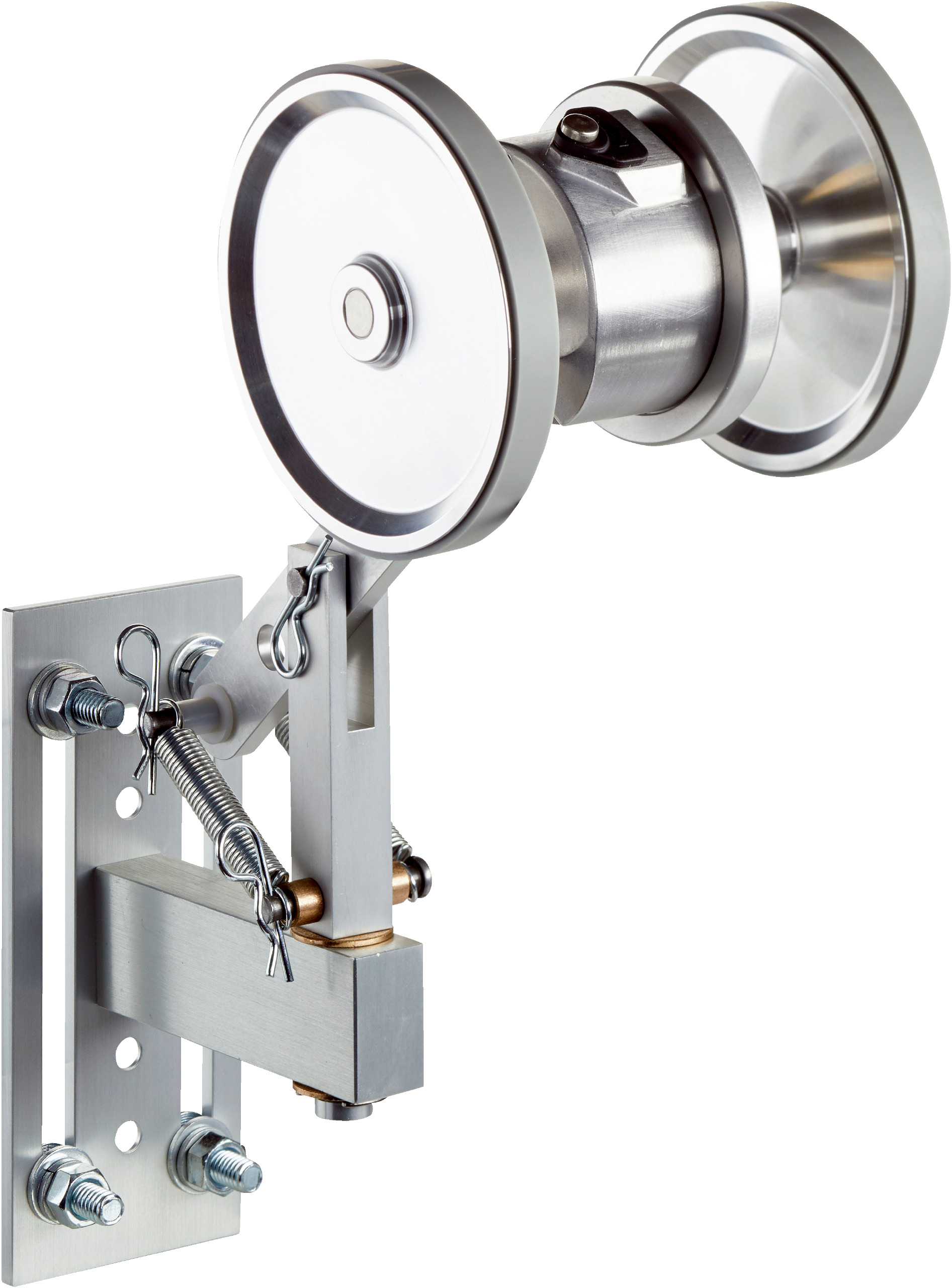

Incremental Rotary Encoder SICK DUV60E-D4KFHDCB | 275 Years MTTFD | IP65 Rated | by SICK
The SICK DUV60E-D4KFHDCB incremental rotary encoder is designed for industrial automation, offering a remarkable MTTFD of 275 years and an IP65 rated enclosure for dust and water protection. With adjustable pulses per revolution from 1 to 1800 and a robust aluminum housing, it ensures precise measurement for conveyor belts, robotics, and packaging machinery, making it an ideal choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 1800
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: <5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data: DIP switch selectable output
- Operating power consumption (no load): 120 mA
- Connection type: Male M12 4-pin connector
- Output voltage and direction of rotation supported
- Power consumption max without load: ≤1.25 W
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1, positioned at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel surface: Smooth plastic (urethane)
- Spring arm mechanism with spring steel element and aluminum components
- Start up torque: 0.5 Ncm, Operating torque: 0.4 Ncm
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Maximum travel/deflection of spring arm: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30°C to +70°C
- Storage temperature range: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 1800
- Measuring wheel circumference of 12 inches with smooth urethane surface
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- High maximum output frequency of 60 kHz
- Spring arm design with under-belt flange mount for stable measurement
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper mounting, electrical connections, and compliance with safety standards.
Applications
- Industrial automation for precise measurement of movement
- Conveyor belt speed and position monitoring
- Material handling systems
- Packaging machinery
- Robotics and assembly lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KFHDCB incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
