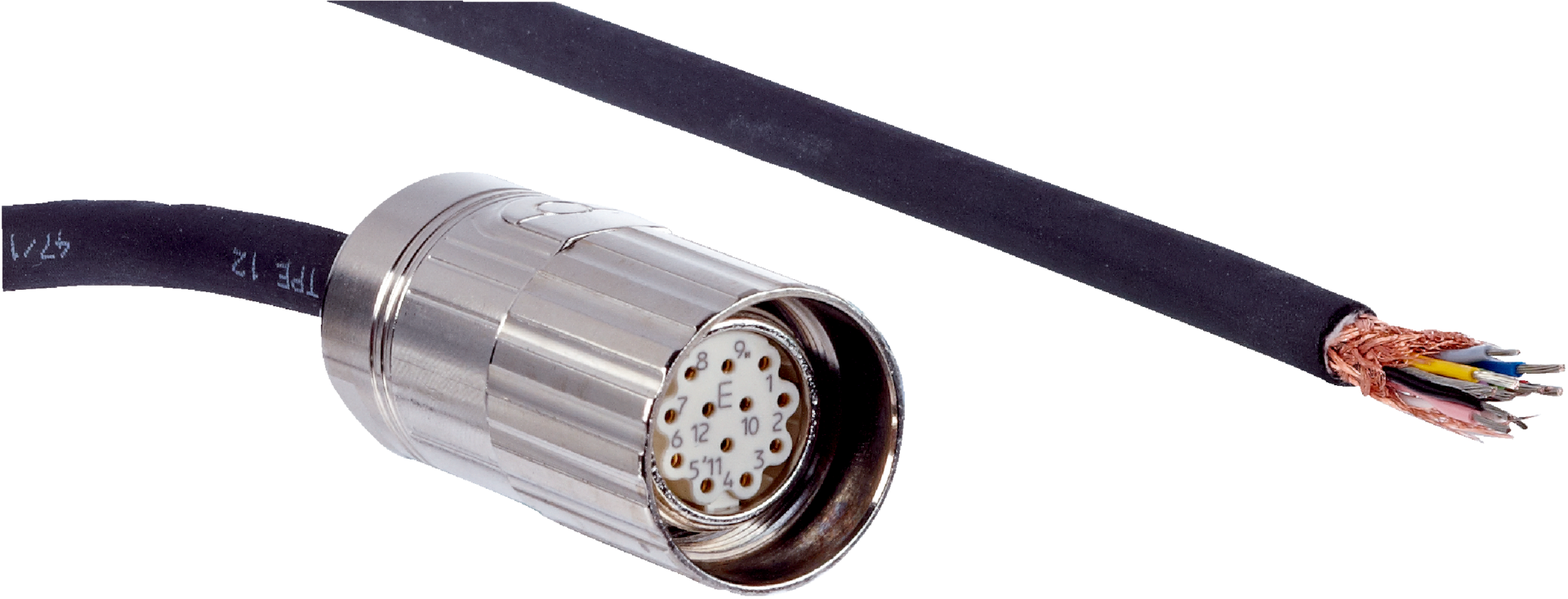

Incremental Sensor Cable M23 12-Pin | Shielded PUR | IP66/IP67 Rated | 2m Length | by SICK
The Incremental Sensor Cable M23 12-pin is designed for robust industrial applications, featuring a shielded PUR jacket for superior signal integrity. With a length of 2 meters and an IP66/IP67 enclosure rating, this cable is perfect for environments exposed to oils and lubricants, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Incremental Sensor Cable M23 12-pin, SICK Sensor Cable, Shielded PUR Cable for Industrial Sensors
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight
- Connection type head B: Flying leads
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 2 m
- Cable wires: 11-wire
- Jacket material: PUR
- Jacket color: Black
- Cable diameter: 7.5 mm
- Conductor cross section: 4 x 2 x 0.25 mm² + 2 x 0.5 mm² + 1 x 0.14 mm²
- Shielding: Shielded
- Bending radius stationary position: > 5 x cable diameter
- Reference voltage: ≤ 160 V
- Current loading: 7 A
- Signal type: Incremental
- Enclosure rating: IP66/IP67
- Dimensions (H x L x W): 20mm x 2000mm x 20mm
- Weight: 0.3 kg
Key Features
- Female connector, M23, 12-pin, straight on head A
- Flying leads on head B
- Zinc die-cast, nickel-plated locking nut
- 2 m length, 11-wire PUR cable with black jacket
- Shielded cable for signal integrity
- High bending radius with stationary position > 5 x cable diameter
- Current loading capacity of 7 A
- Reference voltage up to 160 V
- Enclosure rating IP66/IP67 for dust and water protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and compliant with AS/NZS 3000 wiring rules.
Applications
- Industrial automation zones with oils and lubricants
- Environments requiring shielded incremental signal transmission
- Applications needing IP66/IP67 rated cable connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PUR jacket reduces need for frequent replacements, minimizing waste
- Shielded design reduces electromagnetic interference, improving energy efficiency of connected devices
Warranty Information
Standard manufacturer warranty applies, typically 1 year against defects.
Available Now

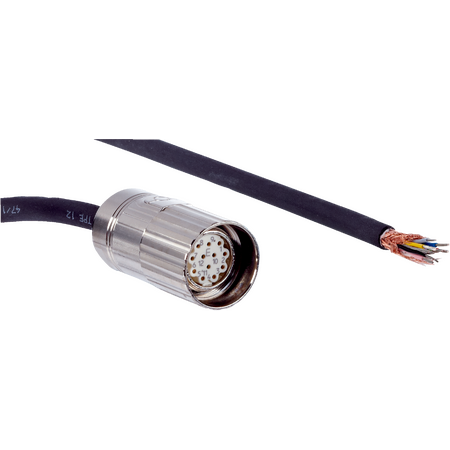

The SICK DOL-2312-G02MLA3 sensor cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
