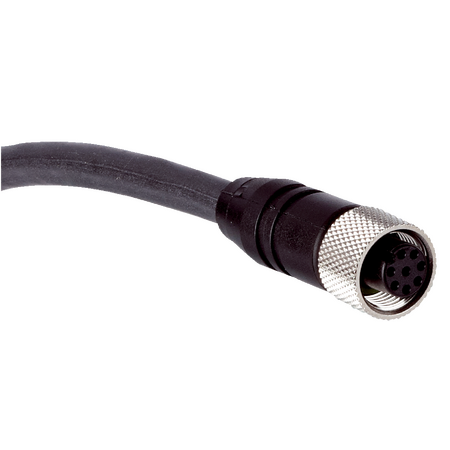

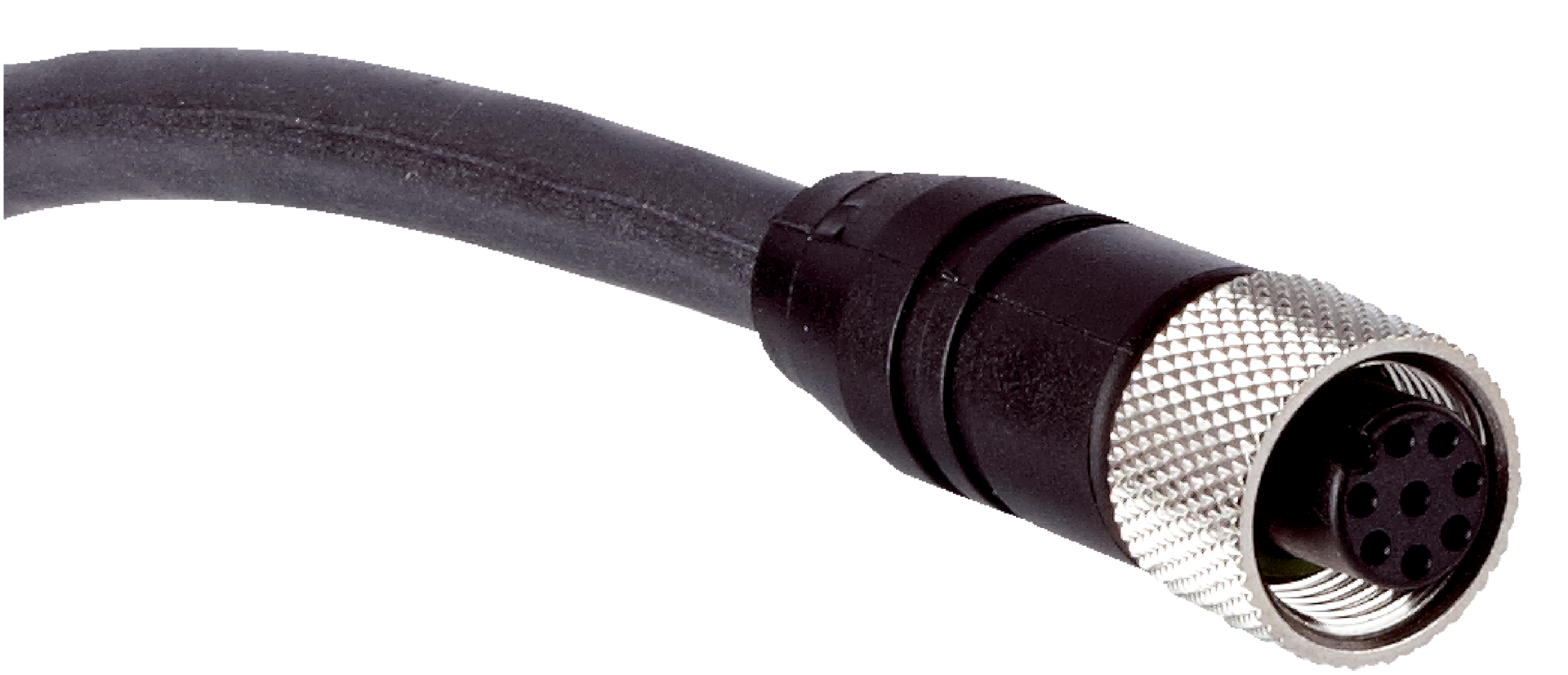

Incremental SSI Cable Assembly | M12 8-Pin Female Connector | 10m Shielded PUR Cable | IP67 Rated | by SICK
The Incremental SSI Cable Assembly features a robust M12 8-pin female connector and flying leads, designed for reliable signal transmission in industrial automation. With a 10m length and halogen-free PUR jacket, it’s perfect for drag chain operations and environments exposed to oils and lubricants. This cable is IP67 rated, ensuring protection against dust and water, making it ideal for harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Incremental SSI Cable, M12 8-pin Cable Assembly, Drag Chain Cable, Shielded PUR Cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Nickel-plated brass
- Cable length: 10 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm², 4 x 2 x 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: > 2,000,000
- Reference voltage: ≤ 36 V AC/DC
- Current loading: 2 A
- Signal type: Incremental, SSI
- Enclosure rating: IP67
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -50 °C to +80 °C
- Operating temperature head: -25 °C to +80 °C
- Dimensions (H x L x W): 20mm x 10000mm x 20mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 8-pin, straight on head A
- Flying leads connection on head B
- Cable length: 10 m, 8-wire, PUR, halogen-free
- Shielded cable with TPU connector material
- Nickel-plated brass locking nut
- High bending radius suitable for flexible use and stationary position
- Operating temperature range: -50 °C to +80 °C
- IP67 rated enclosure for dust and water protection
- Current loading: 2 A
- Signal type: Incremental, SSI
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with industrial electrical connections and drag chain applications to ensure proper handling and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact in case of disposal or fire.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-1208-G10MAC1 cable assembly is available for immediate purchase, ideal for industrial automation and machinery requiring reliable incremental SSI signal transmission in harsh environments.
