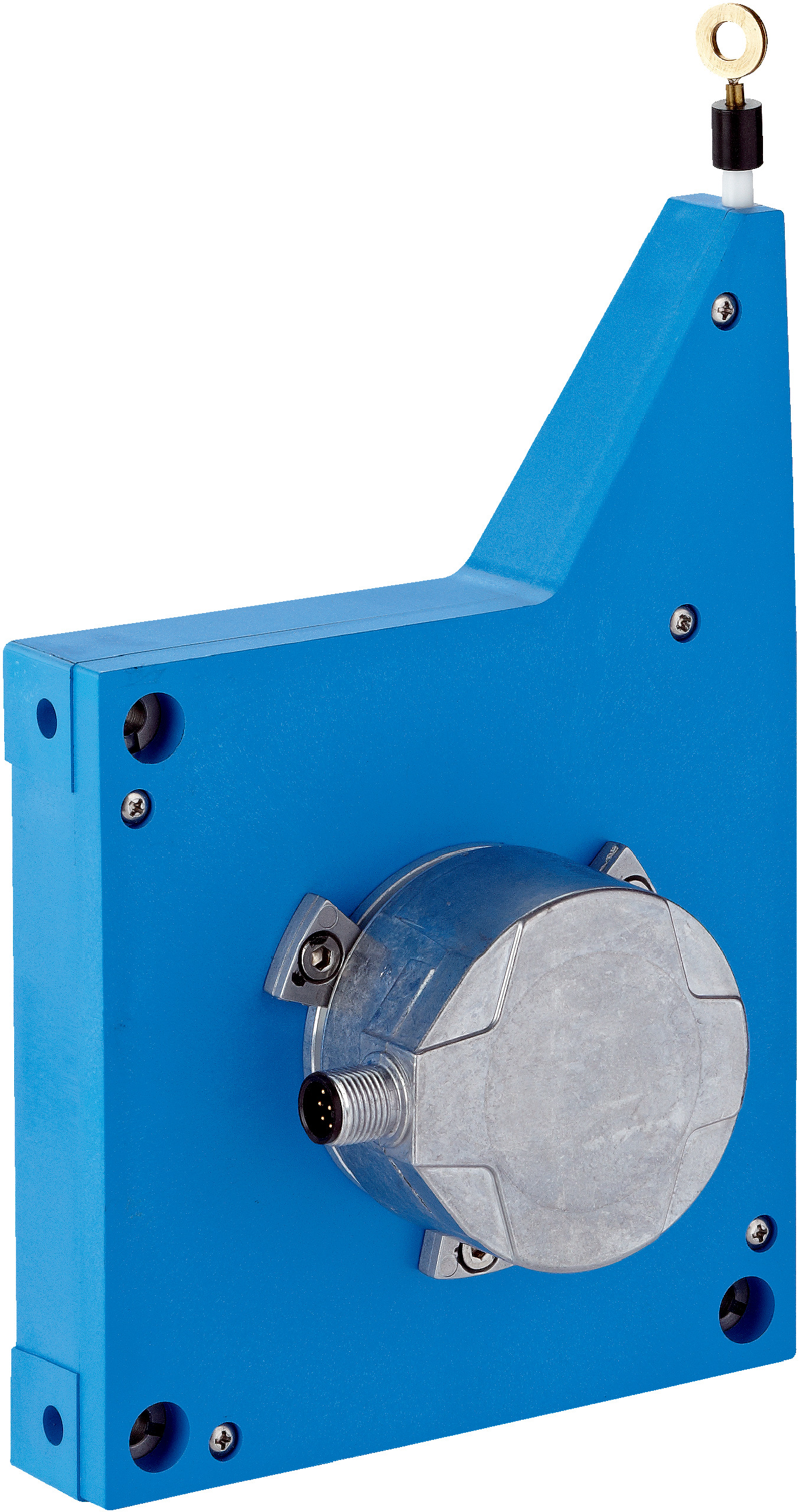

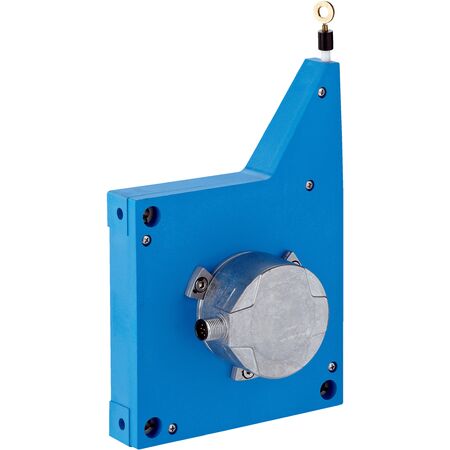

Incremental Wire Draw Encoder PFG13-E1CM0544 | 0.02 mm Resolution | IP50 Enclosure | by SICK
The Incremental Wire Draw Encoder PFG13-E1CM0544 offers high measurement accuracy with a 0.02 mm resolution, making it ideal for industrial automation and safety-related applications. Built for reliability, it features a robust design with a stainless steel measuring wire and operates within a wide temperature range of -30°C to +70°C. With a long service life of up to 1,000,000 cycles, this encoder ensures precise position measurement for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.02 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / HTL / Push pull
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Mounted encoder: DFS60, DFS60A-S1EC16384
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP50 (mechanic IP67)
- Operating temperature range: -30°C to +70°C
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.1 kg
Key Features
- High measurement accuracy with 0.02 mm resolution
- Robust design with plastic Noryl housing and stainless steel measuring wire
- Long service life with up to 1,000,000 cycles
- Wide operating temperature range from -30°C to +70°C
- Low power consumption ≤ 0.5 W
- IP50 enclosure rating with IP67 for mounted mechanic
