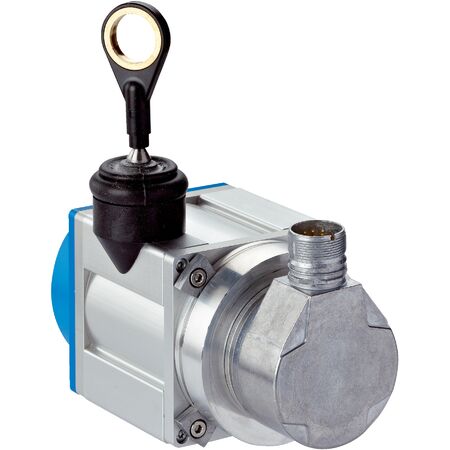

Incremental Wire Draw Encoder PRF08-C1AM0340 | 0-3m Measurement Range | 0.03mm Resolution | IP64 Rated | by SICK
The Incremental Wire Draw Encoder PRF08-C1AM0340 offers a measurement range of 0 m to 3 m with high resolution of 0.03 mm, making it ideal for precise position measurement in industrial automation. Built for robust applications, it features programmable settings and an IP64 enclosure rating, ensuring reliability in various environments, including robotics and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Wire Draw Encoder PRF08-C1AM0340 | 0-3m Measurement Range | 0.03mm Resolution | IP64 Rated | by SICK
Brand: SICK
SKU: 1034897
Alternatively Known As: Wire Draw Encoder, Incremental Wire Draw Sensor, Position Sensor, Cable Extension Encoder
Technical Specifications
- MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1)
- Measurement range: 0 m to 3 m
- Encoder type: Incremental encoders
- Resolution: 0.03 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: Incremental / TTL / RS-422
- Programmable/configurable encoder settings
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Length of wire pulled out per revolution: 200 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 40 m/s²
- Operating speed: 8 m/s
- Mounted encoder model: DFS60, DFS60B-S1MA10000
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 1.8 kg
Key Features
- Measurement range of 0 m to 3 m
- High resolution of 0.03 mm with incremental encoders
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable and configurable encoder settings
- Robust aluminum housing with anodized and nickel-plated finish
- IP64 enclosure rating with IP67 for mounted mechanic
- Operating temperature range from –30 °C to +70 °C
- Low power consumption ≤ 0.7 W
- Spring return force between 6 N and 14 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Machine safety and monitoring systems
- Material handling and conveyor systems
- Robotics and manufacturing process control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
- Compliance with RoHS reduces hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PRF08-C1AM0340 incremental encoder wire draw sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
