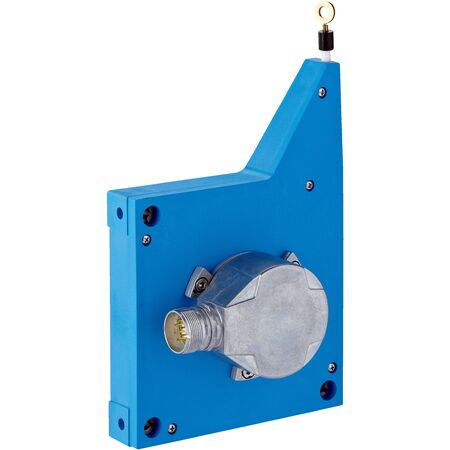

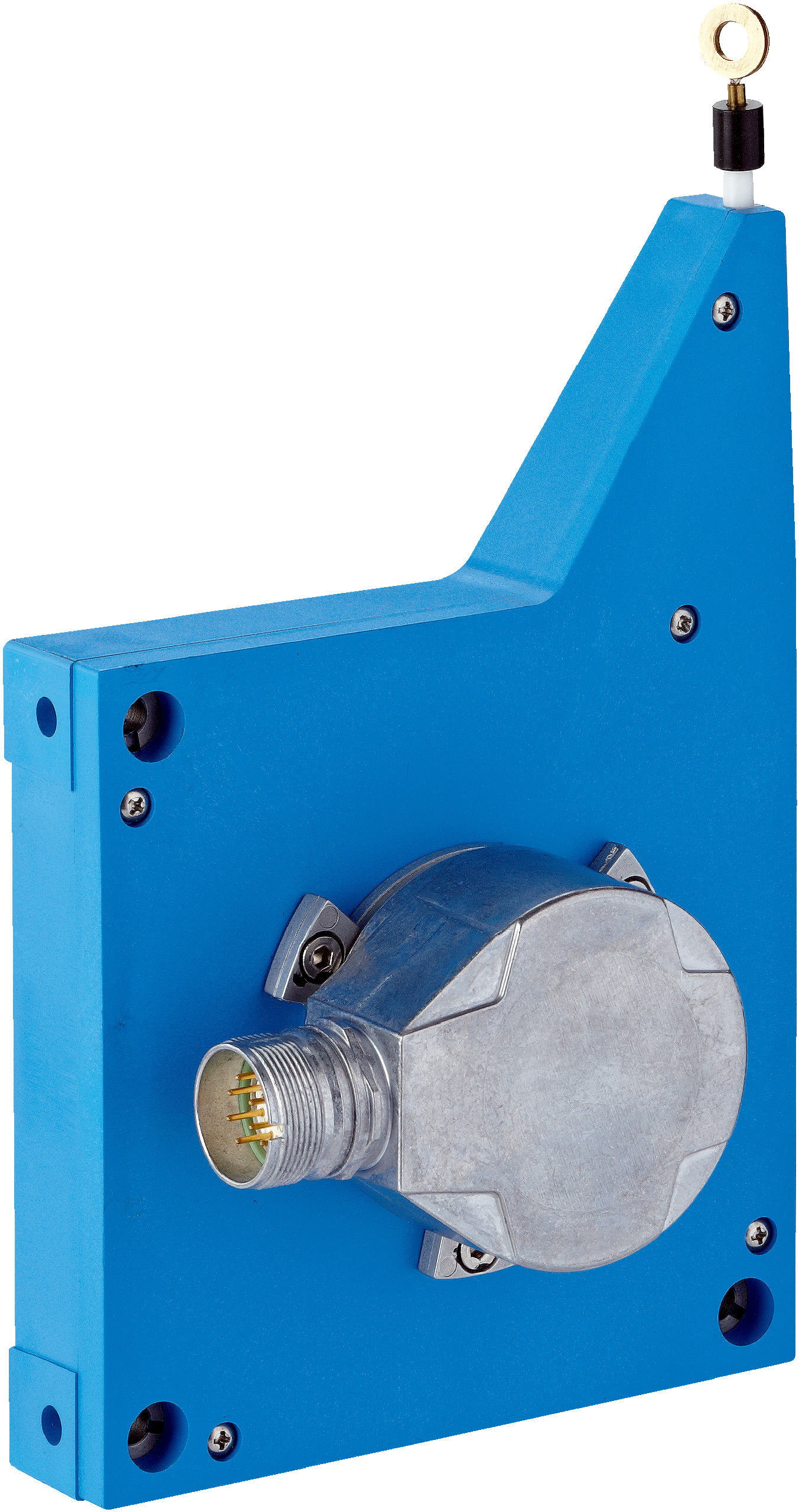

Incremental Wire Draw Encoder PFG13-P1AM05PP | 0-5m Measurement Range | 0.0058mm Resolution | IP50 & IP67 Rated | by SICK
The Incremental Wire Draw Encoder PFG13-P1AM05PP offers a measurement range of 0 m to 5 m with a high resolution of 0.0058 mm, making it ideal for industrial automation and safety-related applications. Designed for precise linear measurement, this encoder features robust construction with a stainless steel measuring wire and operates effectively in temperatures from –30 °C to +70 °C, ensuring reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1)
- Measurement range: 0 m to 5 m
- Encoder type: Incremental encoders
- Resolution (wire draw + encoder): 0.0058 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / TTL / HTL
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Mounted encoder model: DFS60, DFS60A-S1PA65536
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50, mounted mechanic IP67, Encoder IEC 60529
- Dimensions (H x L x W): 150mm x 200mm x 150mm
- Weight: 1.1 kg
Key Features
- Measurement range of 0 m to 5 m
- High resolution of 0.0058 mm
- Repeatability ≤ 0.2 mm
- Linearity ≤ ± 2 mm
- Hysteresis ≤ 0.4 mm
- Programmable and configurable output with factory TTL setting
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Operating temperature range from –30 °C to +70 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- IP50 enclosure rating, IP67 for mounted mechanic and encoder
