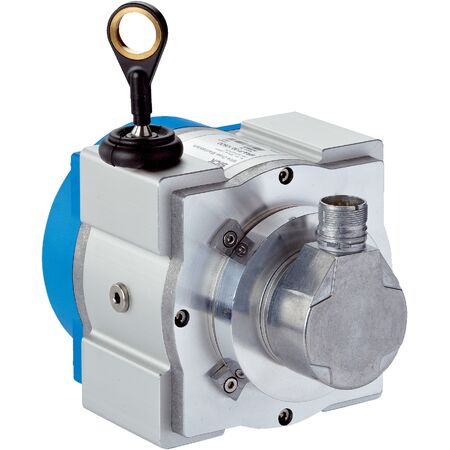

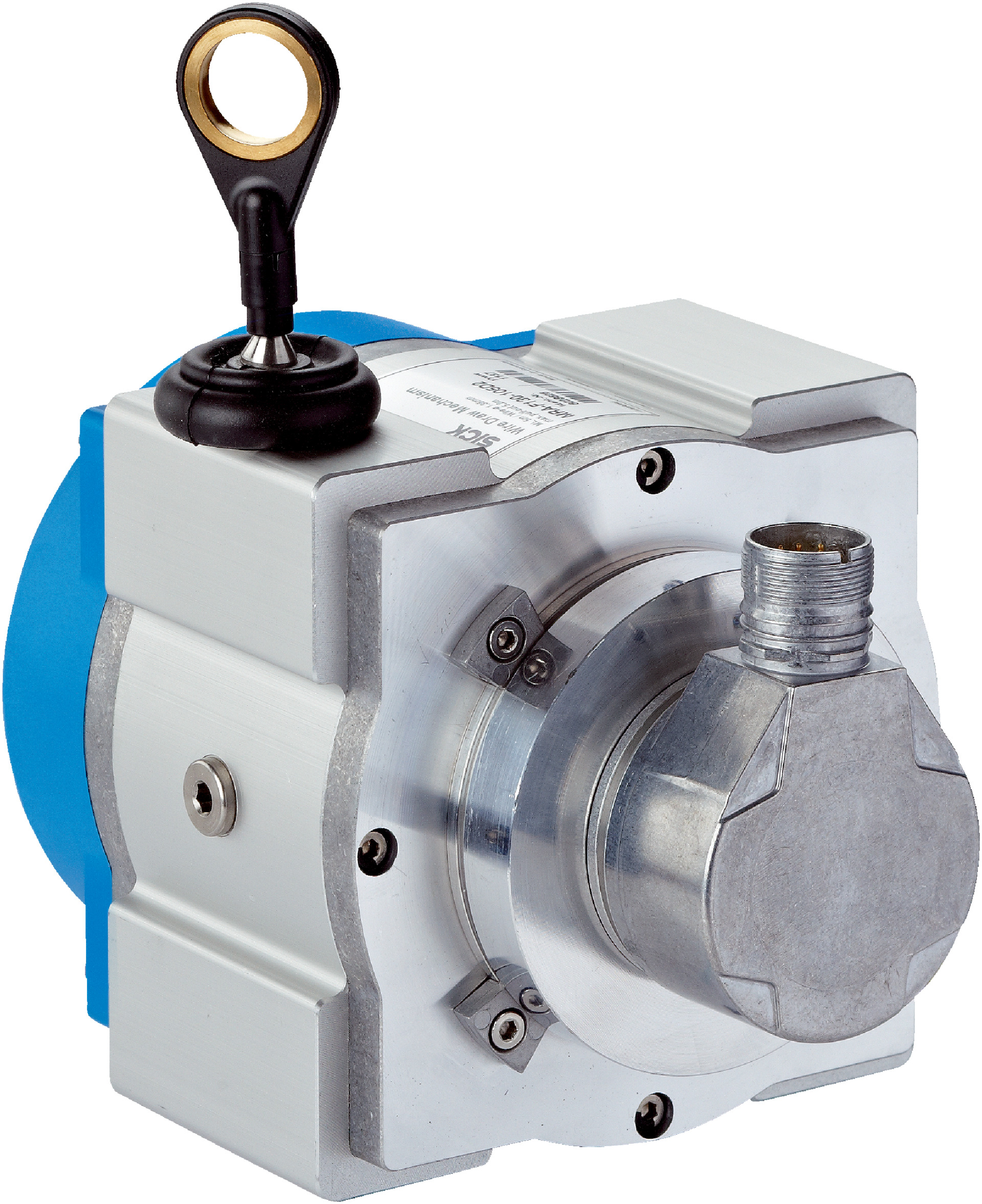

Incremental Wire Draw Encoder | 0 to 5 m Measurement Range | 0.03 mm Resolution | IP64 Rated | by SICK
The Incremental Wire Draw Encoder PRF13-C1AM0520 offers a measurement range of 0 to 5 m with a high resolution of 0.03 mm, making it ideal for precise position measurement in industrial automation. Designed for safety-related applications, this encoder features robust construction with an IP64 rating and operates effectively in temperatures from -30 °C to +70 °C, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Wire Draw Encoder | 0 to 5 m Measurement Range | 0.03 mm Resolution | IP64 Rated | by SICK
Brand: SICK
SKU: 1034330
Alternatively Known As: Incremental Wire Draw Encoder, Safety Wire Draw Sensor, PRF13 Encoder, SICK Wire Draw Sensor
Technical Specifications
- MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1)
- Measurement range: 0 m to 5 m
- Resolution (wire draw + encoder): 0.03 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: Incremental / TTL / RS-422
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 15 N to 20 N
- Length of wire pulled out per revolution: 334.1 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 70 m/s²
- Enclosure rating: IP64 (mechanic IP67), Encoder IEC 60529
- Operating temperature range: –30 °C to +70 °C
- Dimensions (H x L x W): 150mm x 250mm x 150mm
- Weight: 3.1 kg
Key Features
- Measurement range of 0 m to 5 m
- High resolution of 0.03 mm with incremental encoders
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable and configurable communication interface (Incremental / TTL / RS-422)
- Robust aluminum and plastic housing with IP64 rating (mechanic IP67)
- Operating temperature range from –30 °C to +70 °C
- Long life wire draw mechanism with typically 1,000,000 cycles
- Spring return force between 15 N and 20 N
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 0.7 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PRF13-C1AM0520 is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
