Incremental Wire Draw Encoder | 0 m to 10 m Measurement Range | 0.03 mm Resolution | IP64/IP67 Rated | by SICK

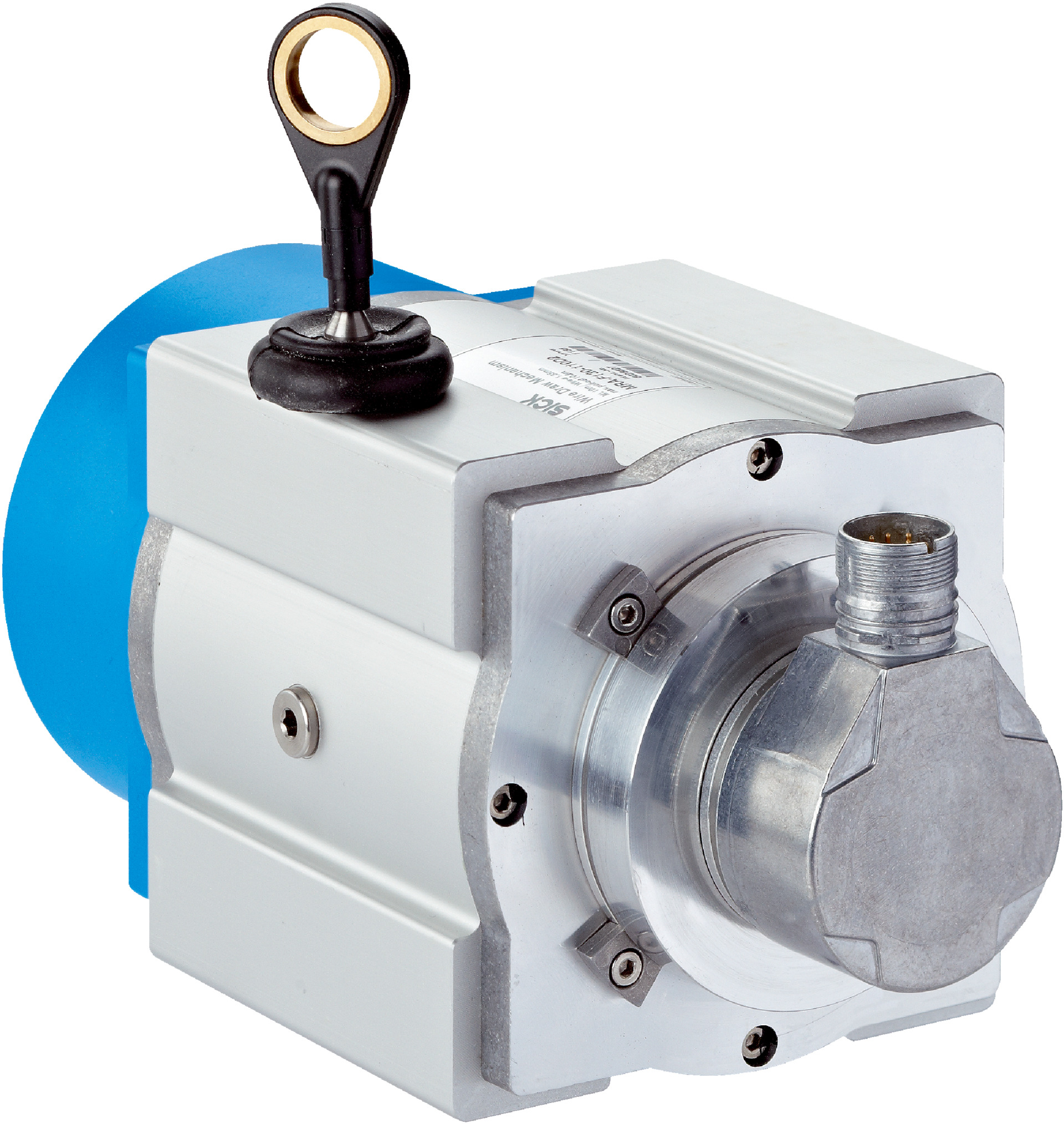

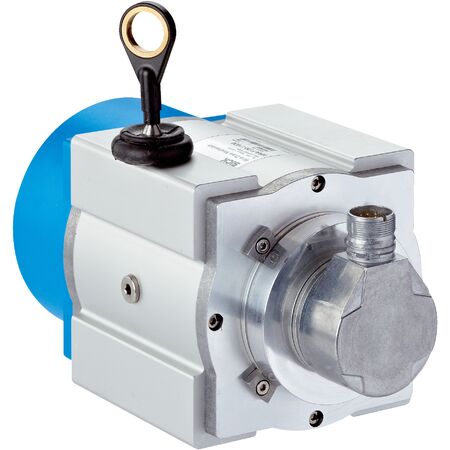

The Incremental Wire Draw Encoder PRF13-C1AM1020 offers a measurement range of 0 m to 10 m with a high resolution of 0.03 mm, making it ideal for industrial automation and safety-related applications. Designed for reliability, it features a robust aluminum and plastic housing with an IP64/IP67 rating, ensuring durability in challenging environments. With a long life of approximately 1,000,000 cycles, this encoder is perfect for precise length measurement and machine monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Wire Draw Encoder | 0 m to 10 m Measurement Range | 0.03 mm Resolution | IP64/IP67 Rated | by SICK
Brand: SICK
SKU: 1034331
Alternatively Known As: Incremental Wire Draw Encoder, Length Measurement Sensor, Safety Wire Draw Sensor
Technical Specifications
- MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1)
- Measurement range: 0 m to 10 m
- Resolution (wire draw + encoder): 0.03 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: Incremental / TTL / RS-422
- Programmable/configurable interface with factory settings
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 10 N to 20 N
- Length of wire pulled out per revolution: 332.4 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 40 m/s²
- Operating speed: 8 m/s
- Mounted encoder: DFS60 series
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature range: –30 °C to +70 °C
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.8 kg
Key Features
- Measurement range of 0 m to 10 m
- High resolution of 0.03 mm with incremental encoders
- Repeatability ≤ 1.5 mm and linearity ≤ ± 2 mm
- Programmable communication interface (Incremental / TTL / RS-422)
- Robust aluminum and plastic housing with IP64/IP67 rating
- Long life wire draw mechanism with approximately 1,000,000 cycles
- Operating temperature range from –30 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and safety-related measurement devices to ensure compliance with safety standards.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 0.7 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PRF13-C1AM1020 is available for immediate purchase, ideal for industrial automation and safety measurement applications.
