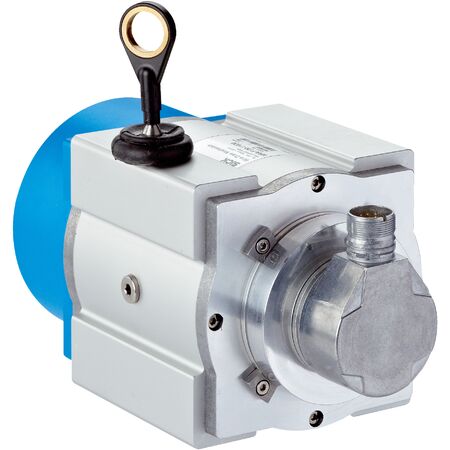

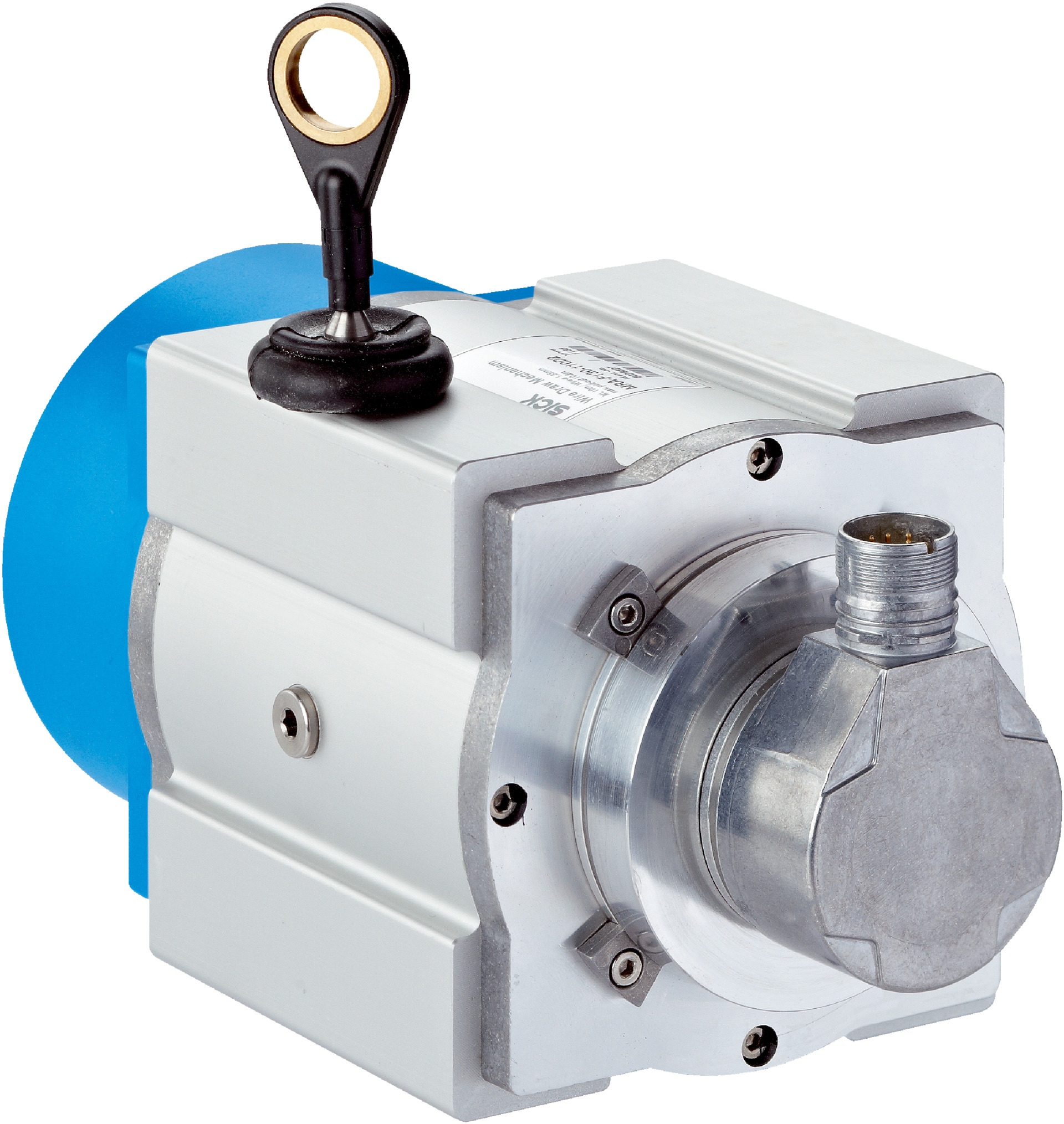

Incremental Wire Draw Encoder PRF13-A1AM1020 | 10m Measurement Range | 0.03mm Resolution | IP64/IP67 Rated | by SICK
The Incremental Wire Draw Encoder PRF13-A1AM1020 offers a high measurement range of up to 10 meters and a precise resolution of 0.03 mm, making it ideal for industrial automation and safety measurement applications. With a robust design featuring IP64/IP67 protection and a long life wire draw mechanism, this encoder ensures reliable performance in demanding environments, perfect for manufacturing processes and machine safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Incremental encoders
- Resolution: 0.03 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: Incremental / TTL / RS-422
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 V to 5.5 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.8 kg
Key Features
- High measurement range up to 10 meters
- Incremental encoder with programmable/configurable interface
- High resolution of 0.03 mm with repeatability ≤ 1.5 mm
- Robust aluminum and plastic housing with IP64/IP67 protection
- Long life wire draw mechanism with approximately 1,000,000 cycles
- Operating temperature range from -30°C to +70°C
- Low power consumption ≤ 0.7 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards.
Applications
- Industrial automation and safety-related measurement applications
- Position and length measurement in manufacturing processes
- Machine safety and control systems requiring precise wire draw measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PRF13-A1AM1020 is available for immediate purchase, ideal for industrial automation and safety measurement applications.
